SW-04 | SlimWhite white light panel for standalone visible light gel imaging or in combination with Maestrogen UltraSlim LED transilluminators, 130 mm x 90 mm viewing area

Key Features

  • Light guide plate with diffuser creates uniform LED illumination across the white light panel
  • No need to convert potentially harmful UV to obtain white light source
  • Ideal in conjunction with an LED transilluminator, a gel imaging system, or as a stand-alone unit for viewing protein gels stained with Coomassie Blue or Silver Stain
  • LED lifetime ~ 50,000 hours


The compact SW-04 SlimWhite white light illuminator from Maestrogen is an excellent source of white light that can be used as a stand-alone instrument, in conjunction with the SLB-01W LED blue light transilluminator or with a gel imaging system (MC-02). The unique light guide and diffuser creates a uniform light source (CV ~5%) which makes it ideal for high quality imaging of protein gels stained with Coomassie Blue or Silver Stain.

The key benefit of the SW-04 SlimWhite is that there is no need to use a converter screen to convert potentially harmful UV to white light and the LED light source will provide ~50,000 hours of use.

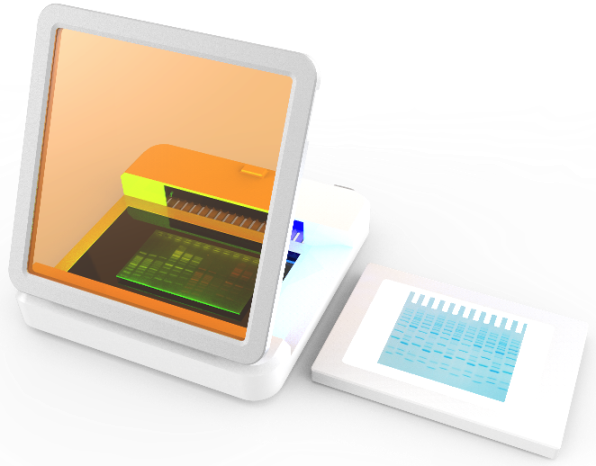

The SW-04 and the SLB-01W (shown above) can be purchased as a combination (SLB-03W) to provide capability for both blue light and colorimetric (visible light) imaging.


Model number
Light sourceWhite LED
Illumination area (W x D)
130 mm x 90 mm
UniformityCV <5%
Dimensions (W x D x H)
170 mm x 118 mm x 12 mm
LED lifetime~50,000 hours
Power requirements
12 VDC, 0.5 A power adapter
Weight0.3 Kg
CertificationCE and FCC
