SLB-03W | UltraSlim LED blue light illuminator with SlimWhite white light panel for gel imaging and band cutting

Key Features

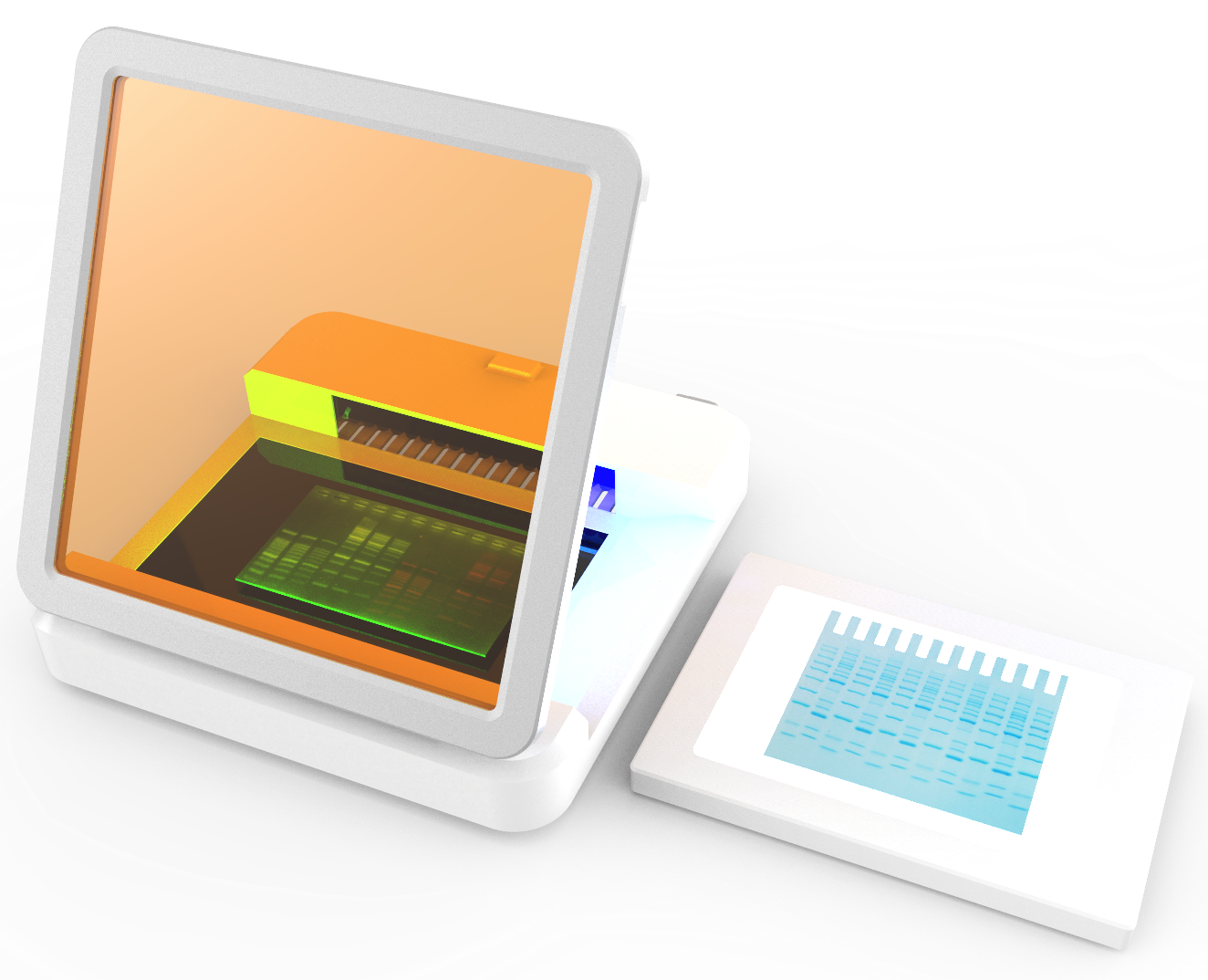

• The SLB-03W is a combination of the SLB-01W UltraSlim LED blue light illuminator and the SW-04 SlimWhite white light panel
• The SLB-01W emits blue light at 470 nm to activate a wide range of blue light-sensitive dyes. Using blue light instead of UV prevents damage to samples and reduces the risk to lab personnel.
• An adjustable amber lid to help identify bands for excision is included in the purchase of the SLB-01W. No need for amber glasses.
• The SW-04 generates direct LED white light without any need for conversion of UV light. Ideal for high quality imaging of protein gels stained with Coomassie Blue or Silver Stain.

Description

The SLB-01W UltraSlim LED blue light illuminator uses a high intensity LED array that can illuminate a range of blue light-activated dyes including EtBr, SYBR® Safe, SYBR Gold, SYBR® Green I & II, SYPRO® Ruby, SYPRO® Orange, Coomassie Fluor™ Orange stains, GelGreen, GelRed and Lumitein™ Protein Gel Stain.

The UltraSlim LED provides uniform and bright 470 nm excitation across gels up to 120 mm x 70 mm to identify even the faintest of bands. The LED array is safe to skin and eyes and does not damage DNA.

The unit is compact and slim and has an array of 108 LEDs that intensely illuminate samples from the side. A built-in adjustable filter/lid provides the optimum viewing conditions and is ideal for band cutting. No glasses are needed.

The SW-04 SlimWhite white light panel is an excellent source of white light. The unique light guide and diffuser creates a uniform light source (CV ~5%) which makes it ideal for high quality imaging of protein gels stained with Coomassie Blue or Silver Stain.

The key benefit of the SW-04 SlimWhite is that there is no need to use a converter screen to convert potentially harmful UV to white light and the LED light source will provide ~50,000 hours of use.

Integration with Maestrogen MC-02 gel imaging system

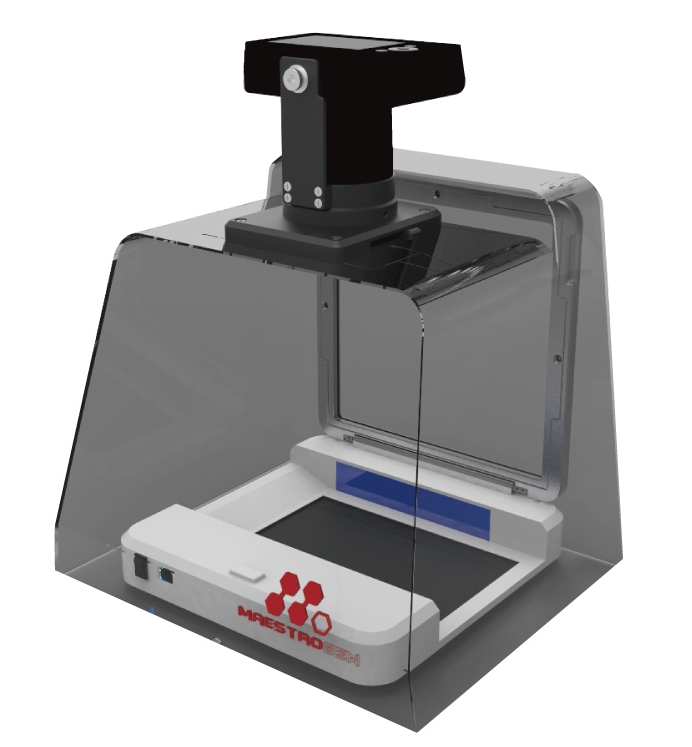

The SLB-03W can be integrated with the Maestrogen MC-02 imager with 24.2 Canon EOS M-series camera to create a complete system for gel imaging.

This compact, economical and portable MiniCute Imager from Maestrogen is ideal for routine image capture from gels stained with UV dyes such as Ethidium bromide or blue light-sensitive fluorescent dyes such as GelRed, GelGreen SYBRSafe and SYBR Green that are excited in the 470 nm range. When combined with the SLB-03W the MC-02 can also be used to capture white light images of protein gels stained with Coomassie Blue or Silver Stain.

Specifications

UltraSlim LED Blue Light
Manufacturer	Maestrogen
Model number	SLB-01W
Blue LED wavelength	470 nm
Sensitivity	Down to 1 ng nucleic acid
Uniformity	<10% CV
Sample window (W x D)	120 mm x 70 mm
Dimensions (W x D x H)	210 mm x 210 mm x 30 mm
Power	24 VDC, 1.25 A power adapter
Weight	2.3 Kg
SlimWhite White Light Panel
Manufacturer	Maestrogen
Model number	SW-04
Light source	White LED
Illumination area (W x D)	130 mm x 90 mm
Uniformity	CV <5%
Dimensions (W x D x H)	170 mm x 118 mm x 12 mm
LED lifetime	~50,000 hours
Power requirements	12 VDC, 0.5 A power adapter
Weight	0.3 Kg
Certification	CE and FCC
