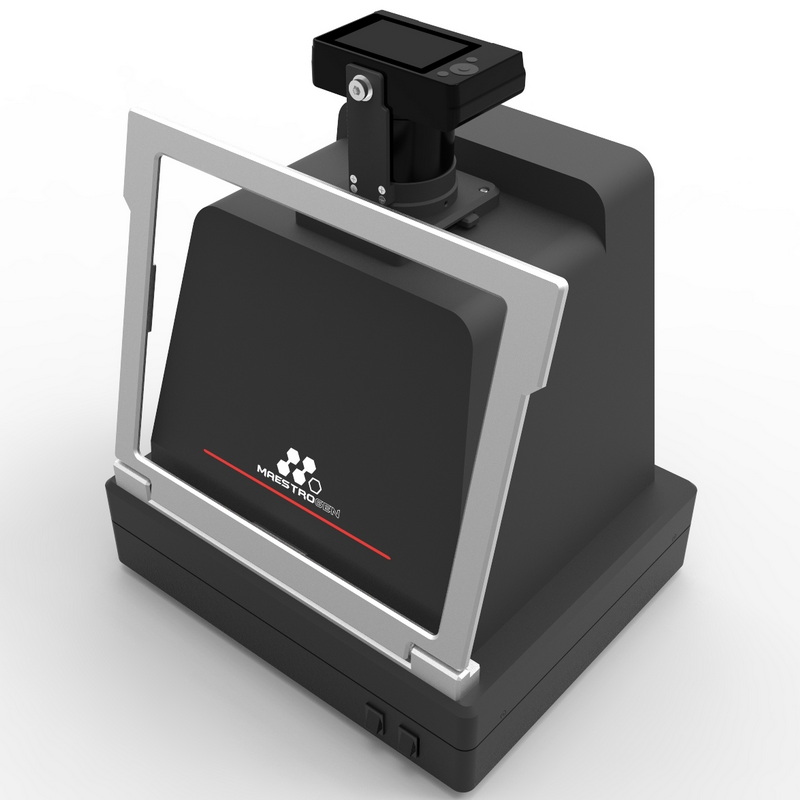

MC-02 | Gel imaging system with 24.2 megapixel digital camera for use with LED blue light and UV transilluminators
Key Features
- 24.2 megapixel Canon EOS M-series digital camera
- 76 mm TFT colour LCD
- Switchable UV and blue light amber filter
- Fully compatible with Maestrogen UltraBright and UltraSlim LED blue light transilluminators as well as other brands of transilluminator. Please click here for details on Advance Scientific's range of compatible transilluminators
- WiFi data transfer option as well as SD/SDHC memory card
- Small footprint and light enough to easily move around your lab
- JPEG image format
Description

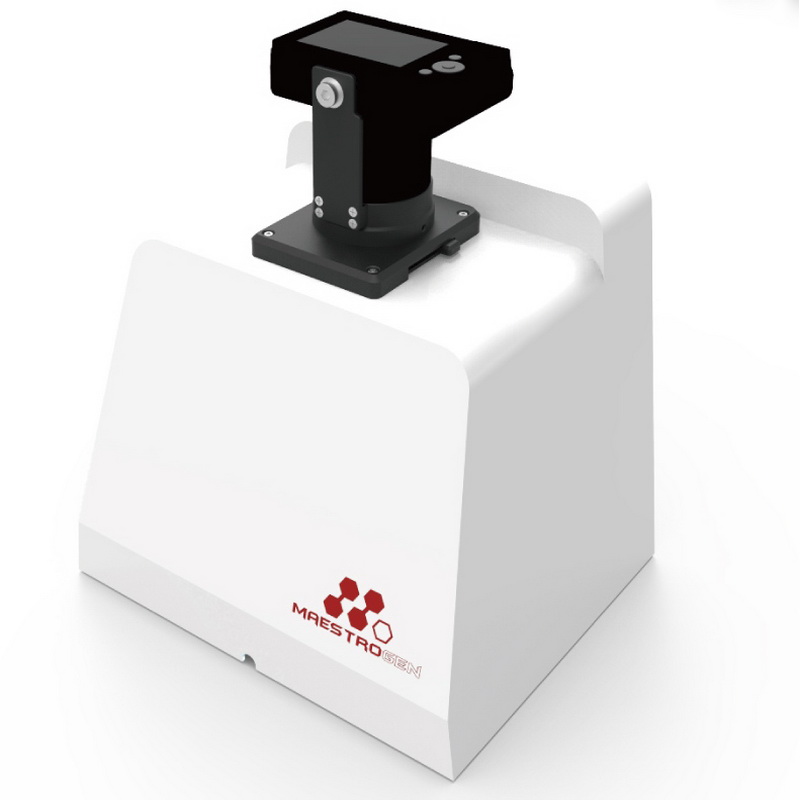

This compact, economical and portable MiniCute Imager from Maestrogen is ideal for routine image capture from gels stained with UV dyes such as Ethidium bromide or blue light-sensitive fluorescent dyes such as GelRed, GelGreen SYBRSafe and SYBR Green that are excited in the 470 nm range.
The darkroom hood is fully compatible with Maestrogen UltraBright and UltraSlim LED blue light transilluminators as well as other brands of transilluminator. Please click here for details on Advance Scientific's range of compatible transilluminators.
The imaging system includes a 24.2 megapixel Canon EOS M-series digital camera that is incorporated into the hood. It also includes a switchable filter holder that allows switching between UV and blue LED light sources. Images can be sent wirelessly to a suitable device or stored on the camera's SD/SDHC memory card in JPEG format.
Specifications
| Manufacturer | Maestrogen |
| Model number | MC-02 |
| Filter | Amber filter and UV cut-off filter |
| Dimensions (W x D x H) | 275 mm x 238 mm x 250 mm |
| Weight | 2 Kg |
| Power requirements | 5 V/5.5 W |
| Camera | |
| Make | Canon EOS M-series |
| Effective pixels | 24.2 megapixels |
| Display | 76 mm TFT colour LCD |
| Lens | 5x lens | F1.8 (wide) - F8.0 (telephoto) |
| Camera modes | Manual, program, aperture priority and shutter priority |
| ISO | 80/100/125/160/200 ~ 25600 (recommended under ISO 800 for operation) |
| Interface | USB | WiFi-compatible |
| Shutter speed | 1/4000 ~ 30 seconds |
| Storage media | SD/SDHC memory card/WiFi transfer |
| Storage format | JPEG (Exif Ver 2.30), RAW |
| Video output | NTSC / PAL selectable |
