SW-02 | SlimWhite white light panel for colorimetric (visible light) gel imaging | 240 mm x 160 mm viewing area








Key Features

  • Light guide plate with diffuser creates uniform LED illumination across the white light panel
  • No need to convert potentially harmful UV to obtain a white light source
  • Ideal as a stand-alone unit or in conjunction with a gel imaging system for viewing protein gels stained with Coomassie Blue or Silver Stain
  • LED lifetime ~50,000 hours

Description

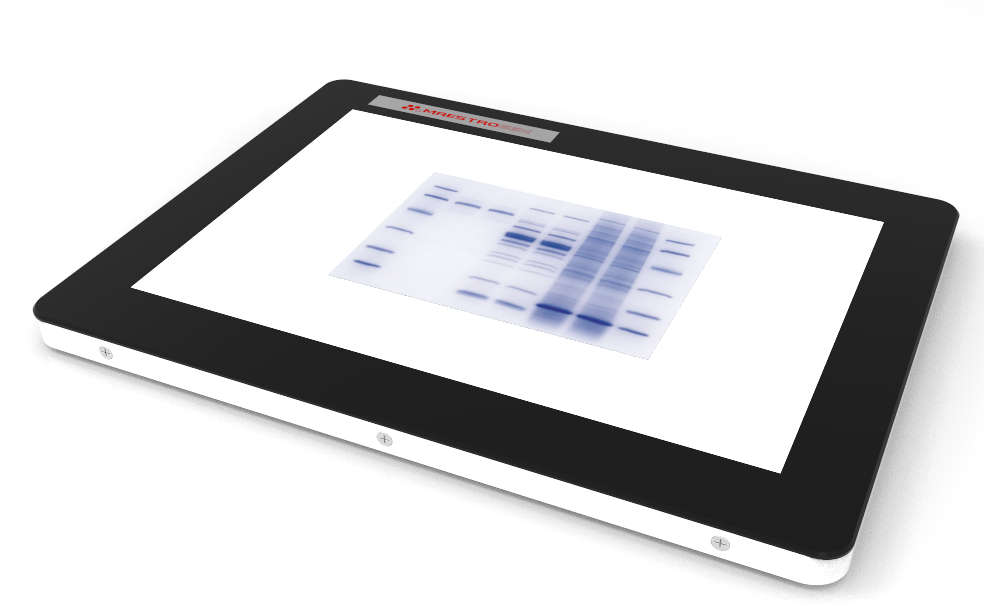

The compact SW-02 SlimWhite white light illuminator from Maestrogen is an excellent source of white light that can be used as a stand-alone instrument or in conjunction with a gel imaging system (MC-02). The unique light guide and diffuser creates a uniform light source (CV ~5%) which makes it ideal for high quality imaging of protein gels stained with Coomassie Blue or Silver Stain.

The key benefit of the SlimWhite is that there is no need to use a converter screen to convert potentially harmful UV to white light and the LED light source will provide ~50,000 hours of use.

Specifications

Manufacturer
Maestrogen
Model number
SW-02
Light sourceWhite LED
Illumination area (W x D)
240 mm x 160 mm
UniformityCV <5%
Dimensions (W x D x H)
292 mm x 217 mm x 12.8 mm
LED lifetime~50,000 hours
Power requirements
Input: 100 VAC - 240 VAC: 50/60 Hz | Output:12 VDC, 0.5 A
Weight1.2 Kg
CertificationCE and FCC
