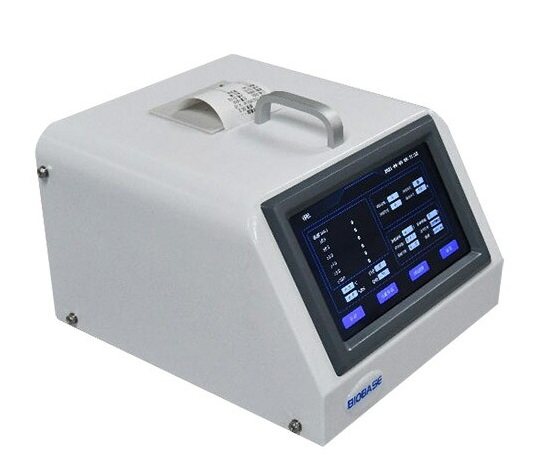

CLJ-2083 | Dust particle counter with touch screen control and six particle size channels
Key Features
- Ideal for a wide range of applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and many other areas
- Six particle size channels: 0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm
- 7-inch touch screen control with intuitive interface for convenient operation. Displays particle concentration and purification level.
- Semiconductor laser light source and semiconductor photosensitive receiver tube
- Built-in thermal printer
- Data can be displayed in cubic meters or cubic feet
- Cold-rolled steel outer casing with anti-rust treatment and electrostatic spraying
- Data storage management and 4GB data storage card
Product Description
The CLJ-2083 laser dust particle counter is ideal for applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and other areas. It utilises a semiconductor laser light source and semiconductor photosensitive receiver tube for particle measurements. It has six particle size channels: 0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm.
The CLJ-2083 features a 7-inch touch screen with intuitive interface for convenient operation. It has a cold-rolled steel outer casing with anti-rust treatment and electrostatic spraying. The unit has a built-in thermal printer and a 4GB data storage card.
Model number | CLJ-2083 |
Sampling volume | 2.83 L/min | 0.1 cfm/min |
Ambient temperature range | 10°C - 35°C |
Ambient relative humidity | ≤75% |
Particle size channels | 0.3μm, 0.5 μm, 1 μm, 3 μm, 5 μm, 10 μm |
Vacuum source | Built-in air pump under control flow |
Light source | Semiconductor laser | ~30,000 hours lifetime |
Zero count | Less than 10 min. |
Communication interface | USB |
Cleanliness level range | ISO 5 - ISO 9 |
Many body material | Cold-rolled steel |
Dimensions | 220 mm x 280 mm x 185 mm |
Weight | 11 Kg |
Power | 100 W |
Electrical requirements | 220 V | 50/60 Hz |
