CLJ-2803 | Dust particle counter with touch screen control and eight particle size channels
Key Features
- Ideal for a wide range of applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and many other areas
- Eight particle size channels: 0.3 μm, 0.5 μm, 0.7 μm,1 μm, 2 μm, 3 μm, 5 μm and 10 μm
- 7-inch touch screen control with intuitive interface for convenient operation. Displays particle concentration and purification level.
- Semiconductor laser light source and semiconductor photosensitive receiver tube
- Built-in thermal printer
- Data can be displayed in cubic meters or cubic feet
- Stainless steel outer casing
- Data storage management and 4GB data storage card
- WiFi data export.
Product Description
The CLJ-2803 laser dust particle counter is ideal for applications in medicine, optics, chemistry, food, cosmetics, electronic health, biological products, aerospace and other areas. It utilises a semiconductor laser light source and semiconductor photosensitive receiver tube for particle measurements. It has eight particle size channels: 0.3 μm, 0.5 μm, 0.7 μm,1 μm, 2 μm, 3 μm, 5 μm and 10 μm.

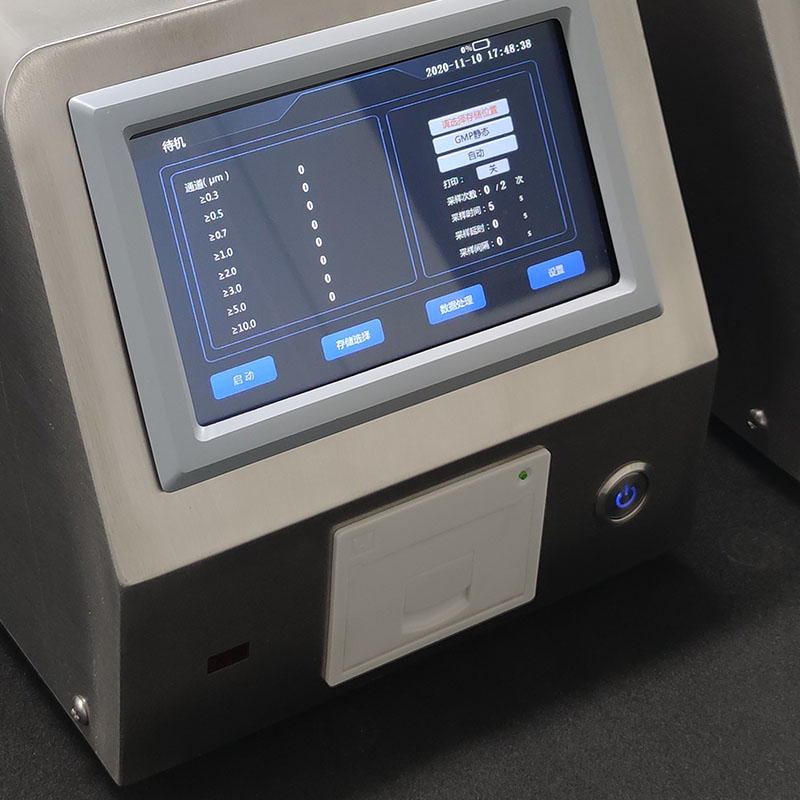

The CLJ-2803 features a 7-inch touch screen with intuitive interface for convenient operation. It has a stainless steel outer casing with a built-in thermal printer and a 4GB data storage card. The instrument is also WiFi-capable.
Model number | CLJ-2803 |
Sampling volume | 28.3 L/min | 1 cubic foot per min (cfm) |
Ambient operating temperature | 10°C - 35°C |
Ambient relative humidity | <75°C |
Particle size channels (8) | 0.3 µm, 0.5 µm, 0.7 µm, 1 µm, 2 µm, 3 µm, 5 µm, 10 µm |
Vacuum source | Built-in air pump, under control flow |
Light source | Semiconductor laser with >30,000 hours lifetime |
Zero count | <10 min |
Communication interface | USB | RS485 |
Cleanliness level range | ISO 5 - ISO 9 |
Main body material | Stainless steel |
Voltage | 220 VAC | 50/60 Hz |
Power | 150 W |
Weight | 17 Kg |
Dimensions (W x D x H) | 220 mm x 350 mm x 260 mm |
Optional accessories | Temperature sensor | humidity sensor |
