PMS-01 | Biological air sampler with 100 L/min sampling volume and variable sampling quantity
Key Features
- Sampling quantity can be set from 0.01 - 9.0 m³
- Sampling volume of 100 L/min
- LCD screen displays operational parameters such as sampling quantity, sampling time, etc.
- Sampling time can be set automatically
- Unit has multiple small holes to reduce particle superposition and to reduce microbial count error
- Easy-to-change Petri dish (90 mm x 15 mm (∅ x Height)
Product Description
The PMS-01 air sampler is ideal for a wide range of biological sampling applications where it is critical to identify any microbial content and their concentrations in the atmosphere. Areas such as food and beverage production, pharmaceutical manufacture, product safety, and human health are examples of key applications.
The PMS-01 consists of a 110 mm sampling head and power supply. The sampling head is perforated and consists of numerous sieves through which air is aspirated. The use of multiple small holes helps to reduce particle superposition and to reduce microbial count error. A 90 mm Petri dish is located in a holder just beneath the perforated lid.
The PMS-01 utilises a low noise centrifugal blower with a nominal air flow of 100 L/min that generates a flow velocity through the sampling holes of 0.38 m/s. Sampling quantity of the PMS-01 can be set from 0.01 m³- 9.0 m³.
The unit incorporates a rechargeable battery (with 6-8 hours of operating time) so that the lightweight air sampler can be moved to multiple locations within a facility.
Ordering Information

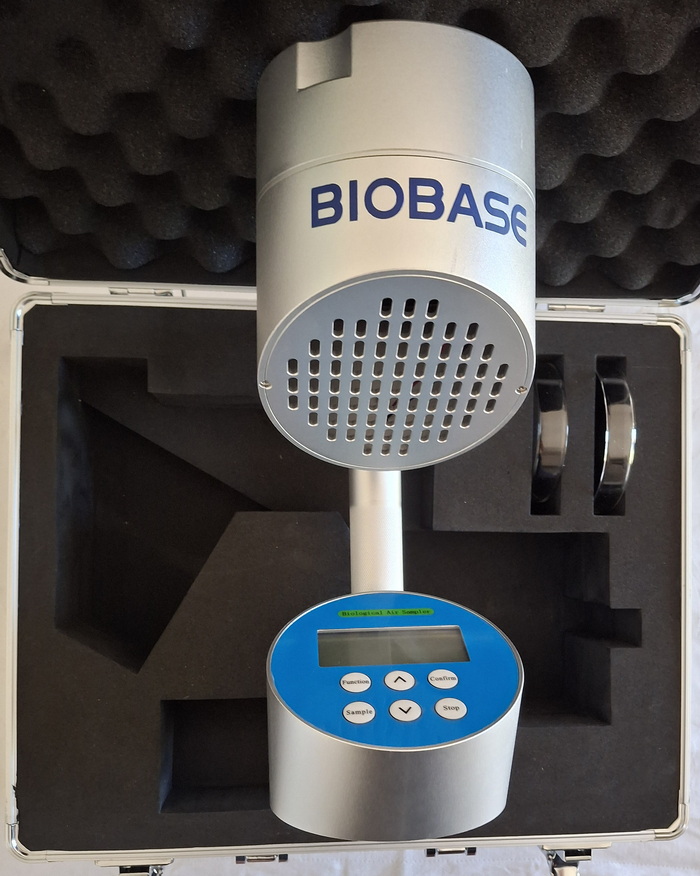

The PMS-01 is supplied in a rugged and lockable metal carrying case so that it can be safely transported to multiple locations.
Related Products
Once you've captured and cultured your microbial contaminants you may want to quantitate the contamination and identify their nature. Click on the image below to find information on the Galaxy 230 colony counter with adjustable pressure counting system.
In the event that you identify microbial contamination in your facility, then one of the ideal methods of decontamination is through UV sterilisation. Below you will find links to two UV air cleaners that can assist you with this process.
Specifications
| Sampling volume | 100 L/min ±5% |
| Sampling quantity | Variable from 0.01 m³ to 9 m³ |
| Sampling methodology | Isokinetic sampling |
| Flow velocity of sampling holes | 0.38 m/s |
| Material | Anodised aluminium |
| Operating features | Microprocessor control | Low noise pump sampling |
| Rechargeable battery | 12 VDC | 3000 mAh |
| Operating time on battery | 6 - 8 hours |
| Electrical requirements | 220 VAC | 50/60 HZ |
| Dimensions (W x D x H) | 120 mm x 200 mm x 340 mm |
| Weight | 2 Kg |
