W1100200 | Vdose Elite peristaltic pump with variable speed range and multiple pump head options








Key Features

  • High precision stepper motor ensures repeatability and accuracy of dispensing
  • Icon-driven user interface allows for easy setup and operation
  • Polarised backlit LCD display with chemically-resistant and wear-proof membrane keypad for instrument control
  • Calibration screen allows for accurate and quick end-user calibration
  • Low profile design reduces space required on the bench or in a hood
  • Up to nine pump control protocols can be saved and recalled for multi-use environments
  • Multiple stacking pump head options allow for higher volumes and multiple fill applications with one pump
  • Compatible with 2 mm, 3 mm, 6 mm and 8 mm tubing
  • Adjustable soft-start ramp feature allows pump to come up to speed gradually to avoid splashing or foaming when dispensing into dishes or small vials
  • Variable delay time can be set between doses
  • Drawback feature

Description

The Vdose Elite features a high precision stepper motor to ensure repeatability and accuracy during liquid dispensing. An icon-driven user interface allows for easy setup and operation. A polarised backlit LCD display with a chemically-resistant and wear-proof membrane keypad provides advanced instrument control as well as accurate and rapid end-user calibration.

The Vdose Elite is compatible with 2 mm, 3 mm, 6 mm and 8 mm tubing and multiple stacking pump head options allow for higher volumes and multiple fill applications with one pump. An adjustable soft-start ramp feature allows the pump to come up to speed gradually to avoid splashing or foaming when dispensing into dishes or small vials.

Up to nine pump control protocols can be saved and recalled for multi-use environments.

Pump head options

The following pump head options are available for the Vdose Elite:

Part NumberDescription
W1100101Single pump head for 2.3 mm wall tubing
W1100201Stacking pump head for 2.3 mm wall tubing
W1100102Pump head for 1.6 mm wall tubing
W1100202Stacking pump head for 1.6 mm wall tubing

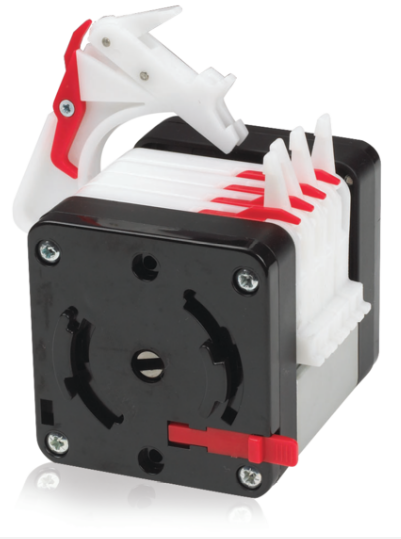

W11002035 channel microcassette pump head for small bore tubing dispensing of liquids into microwell plates or microcentrifuge tubes

Specifications

Manufacturer
Wiggens
Model number
Vdose Elite
Pump heads
Single, dual and microcassette
Operating speed range
0.5 rpm - 400 rpm
Modes
Dispense mode and flow mode
Direction
Clockwise and counterclockwise
Drawback range
0.01 mL - 10 mL
Ramp
Adjustable ramp control for dispense and flow modes (5 profiles)
Compatible tubing sizes (ID: mm)
2, 3, 6 and 8
Dispense ranges for tubing
0.01 mL - 10 L
Flow rate ranges for tubing (mL/min)
2 mm: 20.4 - 174 | 3 mm: 40.2 - 354
6 mm: 131 - 1176 | 8 mm: 200 - 1746
Mid range accuracy
2 mm: ≤±1% | 3 mm: ≤±1%
6 mm: ≤±2.5% | 8 mm: ≤±2.5%
Delay time range between doses
0.5 s  - 100 s
Instrument dimensions (W x D x H)
223 mm x 330 mm x 178 mm
Weight
5.4 Kg
Electrical requirements
100 - 240 VAC: 50/60 Hz
