UA06MFDN | Ultrasonic cleaning bath | Avant Series | stainless steel | 6 litre maximum tank capacity | with heating

Key Features

  • 6 litre maximum tank capacity
  • Ideal for cleaning laboratory, surgical, dental, optical, industrial and jewellery items and degassing solutions prior to use in HPLC
  • Stainless steel tank and coated case allows for easy cleaning and decontamination
  • LCD touch screen to control bath function
  • Independent degas function
  • Automatically saves last-used parameters and recalls them when unit turned on
  • Power adjustable from 40% - 100% of maximum output
  • Digital timer from 0 - 199 minutes
  • Heating range of 20°C - 80°C
  • 37 KHz ultrasonic frequency
  • Handles to allow the bath to be safely moved
  • Non-slip feet and flexible surface contact for lower ultrasonic vibration
  • Frequency overload and thermal protection
  • Wide range of accessories such as lids, baskets and item holders available (please see below)


The Avant series of stainless steel ultrasonic baths are ideal for cleaning laboratory, surgical, dental, optical and industrial items and instruments. The baths are also highly efficient at cleaning jewellery and mechanical and electrical components as well as for degassing solutions prior to use in applications such as HPLC.

The units use powerful transducers that emit a 37 KHz ultrasonic frequency to cause cavitation and the creation of microscopic bubbles that scour any items placed in the bath. Instrument control is achieved through an LCD touch screen and the units automatically save last-used parameters and recall them when unit next turned on.

The Avant baths incorporate a heating system to enhance the cleaning process and the instruments include functionality to maintain ultrasonic efficiency at different temperatures. The bath's power level can be adjusted between 40% and 100% of maximum output and safety features prevent  frequency overload or over-heating.

The bath incorporates handles to allow it to be safely moved as well as non-slip feet and flexible surface contact for lower ultrasonic vibration. The bath also features a digital timer and is supplied with a lid and a tray on which to place items prior to loading into the tank.

Optional Accessories

The accessories listed below are suitable for use with 6 litre ultrasonic cleaning baths. Please contact Advance Scientific for pricing.

Part NumberDescription
U10006Stainless steel lid

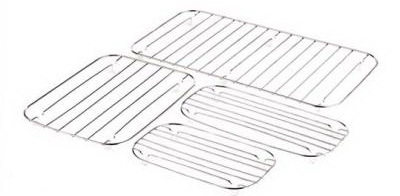

U10206Stainless steel trays

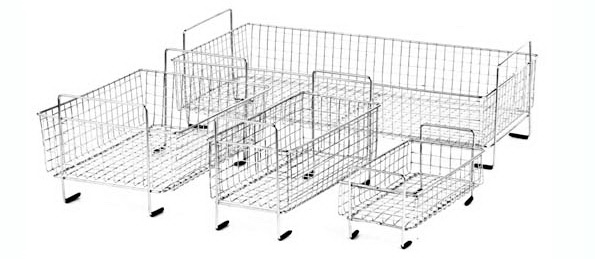

U10106Stainless steel basket
U10406Positioning lids

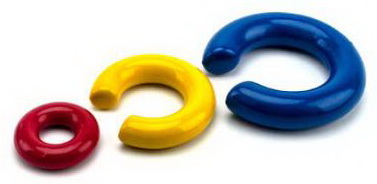

5660Stabilising ring for Erlenmeyer flasks (Type S: Red) | PVC-covered steel | External diameter: 70 mm : Internal diameter: 27 mm | Weight: 0.3 Kg
5661Stabilising ring for Erlenmeyer flasks (Type M: Yellow) | PVC-covered steel | External diameter: 105 mm : Internal diameter: 52 mm | Weight: 0.5 Kg
5662Stabilising ring for Erlenmeyer flasks (Type L: Blue) | PVC-covered steel | External diameter: 140 mm : Internal diameter: 76 mm | Weight: 1.2 Kg


Model number
Avant UA06MFDN
Tank capacity (maximum)
6 litres
1 minute to 199 minutes
Ultrasonic frequency
37 KHz
Working power
150 W maximum : 40% - 100 % adjustable
Heater power
170 W
Heating range
20°C - 80°C
Stainless steel
Dimensions (internal: W x D x H)
300 mm x 150 mm x 150 mm
Dimensions (external: W x D x H)
362 mm x 180 mm x 305 mm
