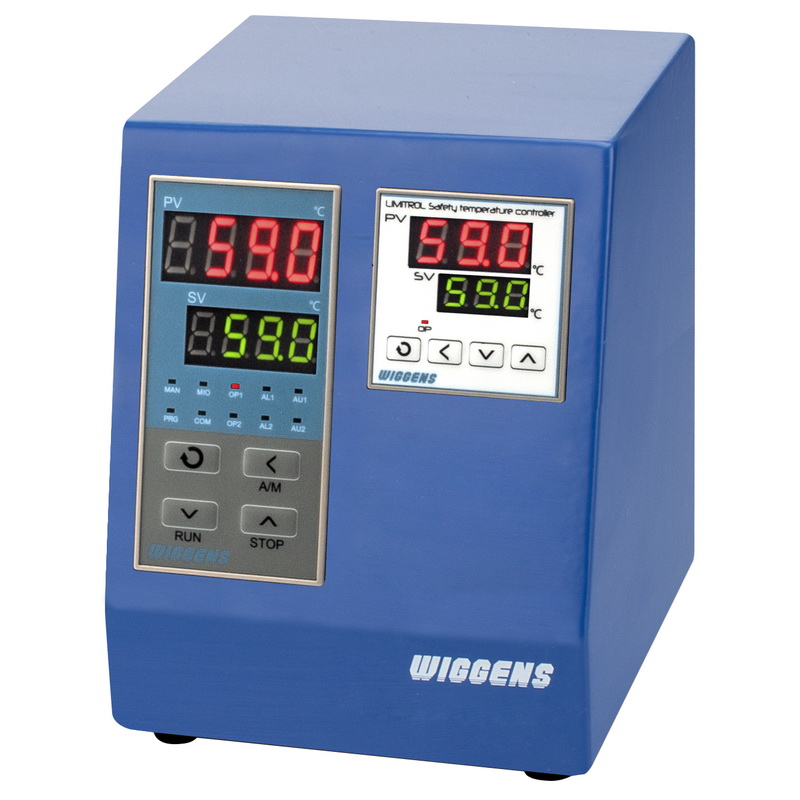

PL524 Pro | Temperature controller with adjustable safety temperature for mantles and other heat control applications








Key Features

  • Temperature control range from ambient to 550℃
  • LED touch screen displaying actual and set temperatures
  • Adjustable safety temperature range with separate LED control panel
  • RS232 interface
  • Alarm signal

Description

The PL524 Pro is a high precision controller that uses an advanced PID algorithm to minimise variability and overshoot of the heating profile. The unit also includes a self-adjustment function to monitor product temperature with feedback being provided to the controller through a PT100 sensor or a K-type thermocouple.

The PL524 Pro also features an adjustable safety temperature range that can be set through a separate control panel.

Specifications

ManufacturerWiggens
Controller model numberPL524 Pro
Adjustable temperature rangeAmbient to 550ºC
Adjustable safety temperature rangeUp to 500ºC with 1ºC resolution
Temperature controlAutomatic PID algorithm control
Measurement and control sensor (standard)PT100: four lead method
Measurement and control sensor (optional)K-type thermocouple
InterfaceRS232
Display accuracy±0.1%
Temperature stability±0.03% or better
Resolution0.01ºC
Ambient temperature operating range (controller)-10ºC to +35ºC
Humidity operating range≤90%
Power supply100 VAC to 240 VAC | 50-60 Hz
Power consumption≤4.5 W
Maximum current10 A
Weight2.5 Kg
