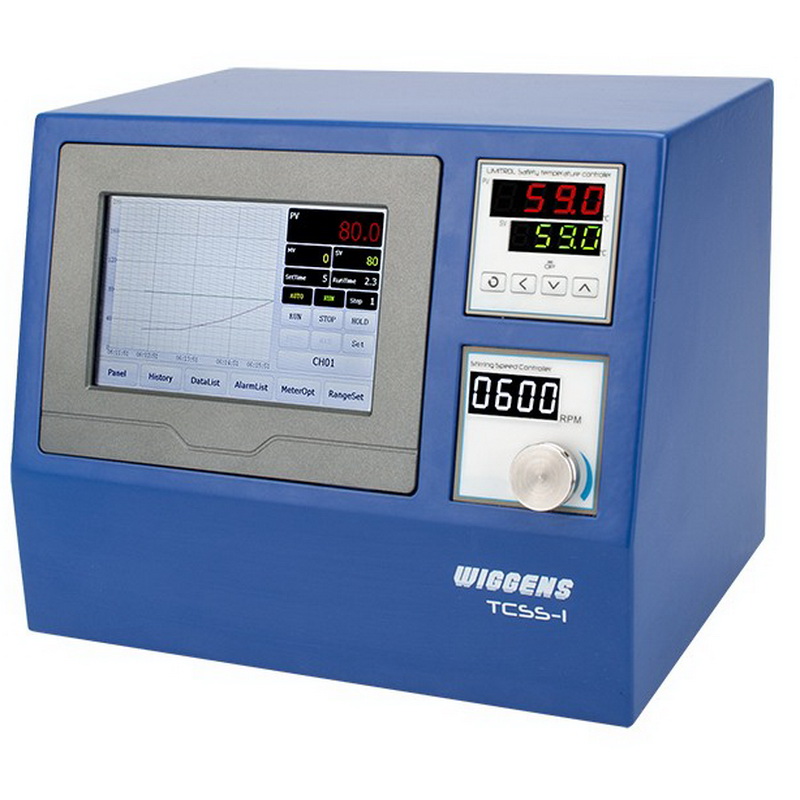

TCSS-1 | Programmable stirring and temperature controller for heating and cooling

Key Features

• Ideal for a wide range of temperature control applications using heating mantles and water and oil baths
• Heating and cooling range from -100ºC  to +550℃
• Adjustable stirring speed from 5 rpm - 750 rpm
• Programmable
• 5" TFT touch screen
• Adjustable safety temperature range with separate LED control panel
• RS232, RS485 and Ethernet
• Alarm signal

Description

The TCSS-1 is a high precision controller that uses an advanced PID algorithm to minimise variability and overshoot of the heating and cooling profile. The unit also includes a self-adjustment function to monitor product temperature with feedback being provided to the controller through a PT100 sensor or a K-type thermocouple.

The programmable TCSS-1 has a heating and cooling range from -100ºC  to +550℃. Data entry and parameter control is through a 5" TFT true colour touch screen with LED backlight.

The TCSS-1 uses electromagnetic functionality to provide a stirring speed range from 5 rpm - 750 rpm. Speed is adjusted by a single dial and the controller features "Synchrostart" that maintains linkage between the magnetic field and the stir bar. The mantle-controller connection cord allows the controller to be placed outside a fume hood to protect it from corrosive atmospheres.

The TCSS also features an adjustable safety temperature range that can be set through a separate control panel.

Specifications

Manufacturer	Wiggens
Controller model number	TCSS-1
Adjustable temperature range	-100ºC to +550ºC
Adjustable safety temperature range	0ºC to 500ºC with 1ºC resolution
Temperature control	Automatic PID algorithm control
Measurement and control sensor (standard)	PT100: four lead method
Measurement and control sensor (optional)	K-type thermocouple
Usable memory	150 MB
Interface	RS232, R485 and Ethernet
Display	TFT true colour touch screen with LED backlight
Display accuracy	±0.1%
Temperature stability	±0.03% or better
Resolution	0.01ºC
Ambient temperature operating range	-10ºC to +35ºC
Humidity operating range	≤90%
Power supply	100 VAC to 240 VAC | 50-60 Hz
Power consumption	≤6.5 W
Maximum current	15 A
Weight	3.5 Kg
