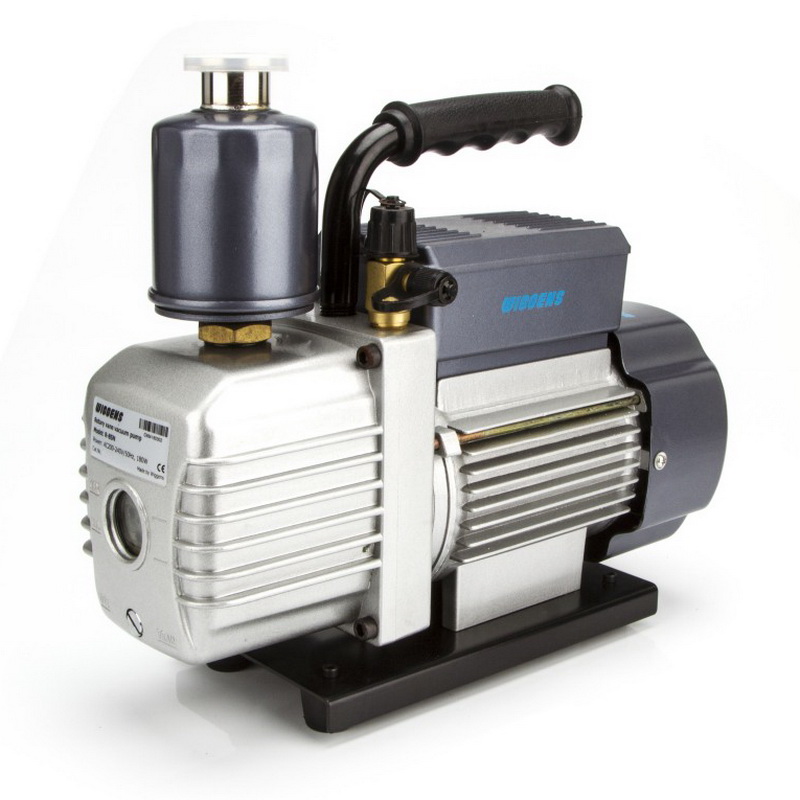

900102-22 | Rotary vane vacuum pump (R-8SN), maximum flow rate 120 L/min (7.2 m³/hour)
Key Features
- Compact structure
- Very good sealing
- No returning throughput
- Oil-spout prevention
- Low noise
- Oil-observation window
- Handle for easy transportation
- High flow rate
- Low and stable maximum vacuum
- High evaporation resistance
- High chemical resistance
- Low maintenance rate
- Low oil mist
- Gas ballast valve
- Over-current protection
- Meets IP40 standards
Description
The Wiggens R-8SN is a lightweight and mobile rotary vane vacuum pump that offers high flow rates up to 120 L/min and a low and stable maximum vacuum of 2.5 x 10-2 mbar.
Specifications
Manufacturer | Wiggens |
Model number | R-8SN |
Number of stages | 1 |
Flow rate (L/min) | 120 |
Flow rate (m³/hour) | 7.2 |
Ultimate vacuum (mbar) | 2.5 x 10-2 |
Power (W) | 300 |
Motor rotation (rpm) | 1400 |
Noise level (dB) | <60 |
Oil capacity (L) | 0.28 |
IP Code | IP40 |
Weight (Kg) | 13.5 |
Outlet specifications | 5/8" SAE Male: 7/16" SAE Male |
