900111-22 | Rotary vane vacuum pump (R-8D), maximum flow rate 180 L/min (10.8 m³/hour)
Key Features
- Compact structure
- Very good sealing
- No returning throughput
- Oil-spout prevention
- Low noise
- Oil-observation window
- High flow rate
- Low and stable maximum vacuum
- High evaporation resistance
- High chemical resistance
- Low maintenance rate
- Low oil mist
- Gas ballast valve
- Over-current protection
- Meets IP44 standards
Description

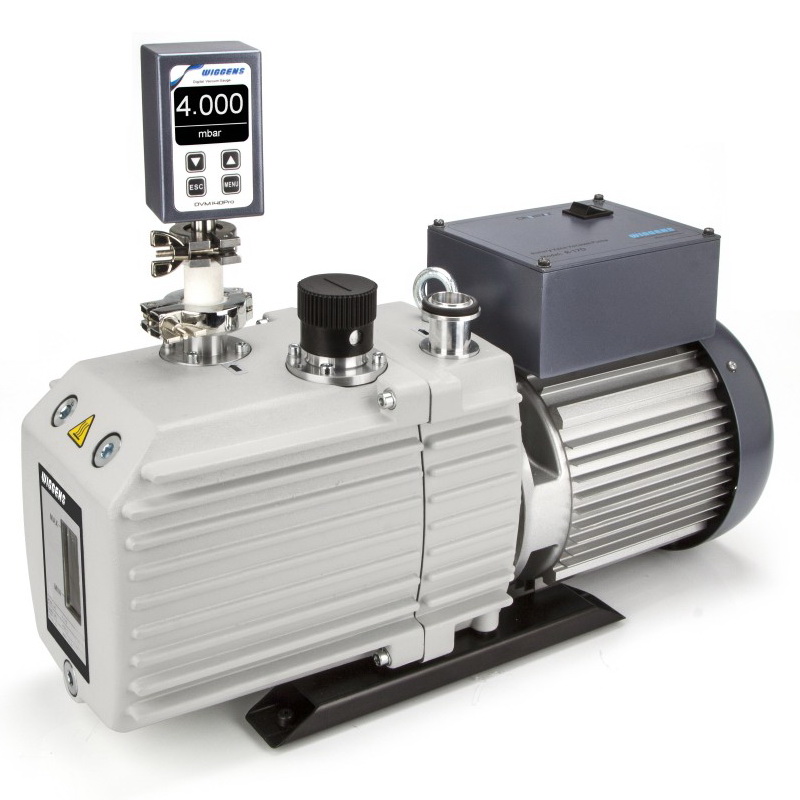

The Wiggens R-8D is a robust and chemically-resistant rotary vane vacuum pump that offers high flow rates up to 180 L/min and a low and stable maximum vacuum of 4 x 10-4 mbar.
Specifications
| Manufacturer | Wiggens |
| Model number | R-8D |
| Number of stages | 2 |
| Flow rate (L/min) | 180 |
| Flow rate (m³/hour) | 10.8 |
| Ultimate vacuum (mbar) | 4 x 10-4 |
| Power (W) | 550 |
| Motor rotation (rpm) | 1400 |
| Noise level (dB) | <54 |
| Oil capacity (L) | 1.1 |
| IP Code | IP44 |
| Weight (Kg) | 29 |
| Inlet and outlet specifications | DN25KF |
