900104-22 | Rotary vane vacuum pump (R-16SN), maximum flow rate 240 L/min (14.4 m³/hour)
Key Features
- Compact structure
- Very good sealing
- No returning throughput
- Oil-spout prevention
- Low noise
- Oil-observation window
- Handle for easy transportation
- High flow rate
- Low and stable maximum vacuum
- High evaporation resistance
- High chemical resistance
- Low maintenance rate
- Low oil mist
- Gas ballast valve
- Over-current protection
- Meets IP40 standards
Description

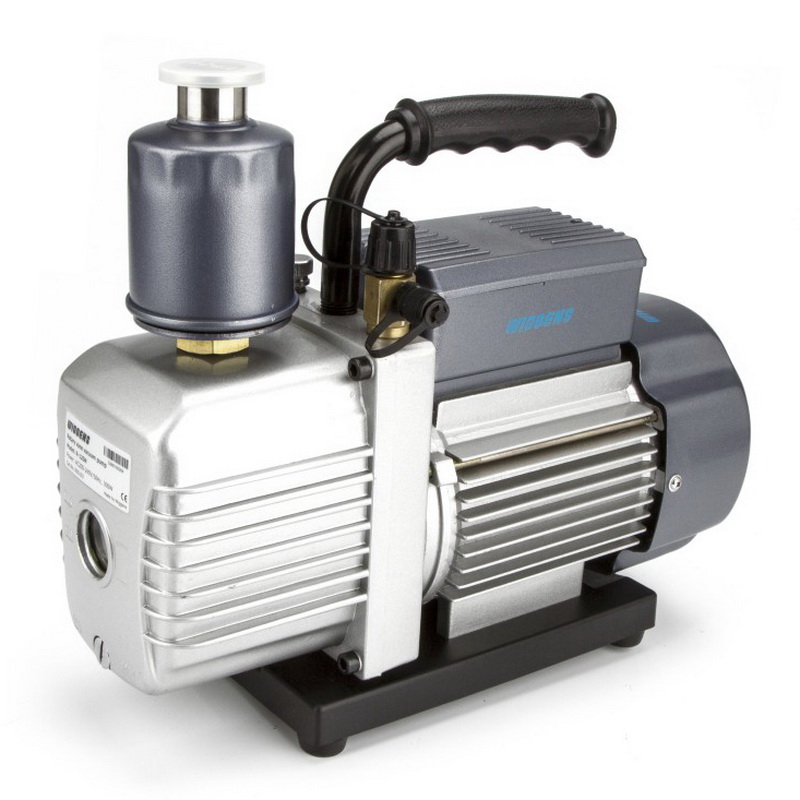

The Wiggens R-16SN is a compact and portable rotary vane vacuum pump that offers high flow rates up to 240 L/min and a low and stable maximum vacuum of 2.5 x 10-2 mbar.
Specifications
Manufacturer | Wiggens |
Model number | R-16SN |
Number of stages | 1 |
Flow rate (L/min) | 240 |
Flow rate (m³/hour) | 14.4 |
Ultimate vacuum (mbar) | 2.5 x 10-2 |
Power (W) | 550 |
Motor rotation (rpm) | 1400 |
Noise level (dB) | <60 |
Oil capacity (L) | 0.65 |
IP Code | IP40 |
Weight (Kg) | 22 |
Inlet and outlet specifications | DN25KF |
