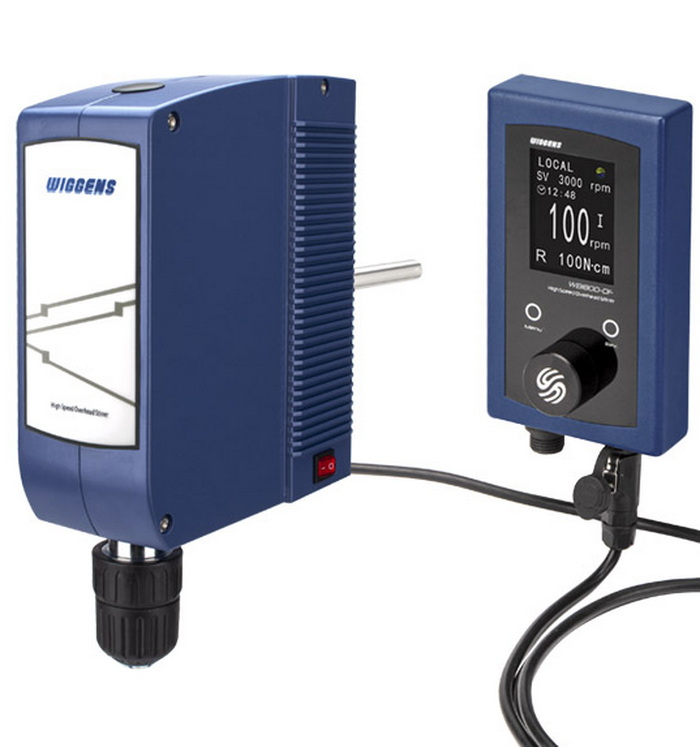

100800F | Remotely-controlled overhead stirrer with high speed and torque (WB6000-DF) | Includes support stand

Key Features
- Brushless DC motor for longer instrument lifespan, low maintenance and high efficiency
- Remote controller with bright TFT digital display and intuitive on-touch control
- Fully enclosed in compact aluminium casing
- Switchable between low speed/ high torque and high speed/ low torque
- PID feedback ensures constant motor speed even if viscosity changes during stirring
- Precise speed adjustment
- Key-less chuck and "through-shaft" design for simple impeller height adjustment
- RS-232 and USB interfaces to control and monitor instrument parameters and performance
- Wide range of optional impellers available
Description
The WB6000-DF from Wiggens features a remote controller with a bright TFT digital display and intuitive on-touch control, and a brushless DC motor that is quieter and lasts considerably longer than standard stirrer motors. The unit uses the latest microprocessor technology to generate a stable and accurate stirring process and incorporates internal overload protection to prevent motor damage.
The powerful motor in the WB6000-DF, and the ability to switch from low to high torque and low to high speed, makes this instrument ideal for stirring high viscosity fluids. The unit also features PID feedback that ensures a constant motor speed even if viscosity changes during stirring.
RS-232 and USB interfaces are built into the WB6000-DF to remotely control and monitor instrument parameters and performance.
Ordering Information
Included with the purchase of the WB6000-DF overhead stirrer motor is a support stand (WH22-D) with rod and clamp. No impellers (stirrers) are included with the motor but we do offer a wide range of optional impellers for this instrument. If you don't see the impeller you need at this link then please contact Advance Scientific for assistance.
Instrument Options
The following versions of the DF series of overhead stirrers are also available:
Part Number | Maximum Torque (N-cm) | Speed Range (rpm) |
WB1800-DF | High: 563 | Low: 113 | Low: 20 - 360 | High: 361 - 1800 |
WB3000-DF | High: 339 | Low: 68 | Low: 30 - 600 | High: 601 - 3000 |
Specifications
Manufacturer | Wiggens |
Model number | WB6000-DF |
Motor type | Brushless DC motor |
Housing | Cast aluminium |
Display/ control mode | Remote controller with TFT digital display/ On-touch control |
Setting speed accuracy | 1 rpm |
Deviation of speed deviation | ±3% at speeds >300 rpm |
Maximum torque | High : 170 N-cm | Low: 34 N-cm |
Speed setting | Touch key and turning knob |
Speed range | 1: 60 rpm - 1200 rpm 2: 1201 rpm - 6000 rpm |
Corresponding torque range (maximum) at stirring shaft | 1: 170 N-cm 2: 34 N-cm |
Extension arm diameter for connection to support stand | 13 mm |
Extension arm length for connection to support stand | 124 mm |
Chuck type | Keyless |
Chuck range | 0.5 mm -10 mm maximum diameter. Pass-through motor with 10.2 mm diameter port for impeller insertion. |
Interfaces | RS-232 and USB interfaces for remote control and for monitoring instrument parameters and performance
|
Maximum viscosity | 70000 cP |
Maximum stirring capacity (H2O) | 100 L |
Output power | 150 W |
Dimensions (W x D x H) | 95 mm x 200 mm x 230 mm |
Weight | 4.5 Kg |
Power requirements | 220 VAC: 50 Hz |
