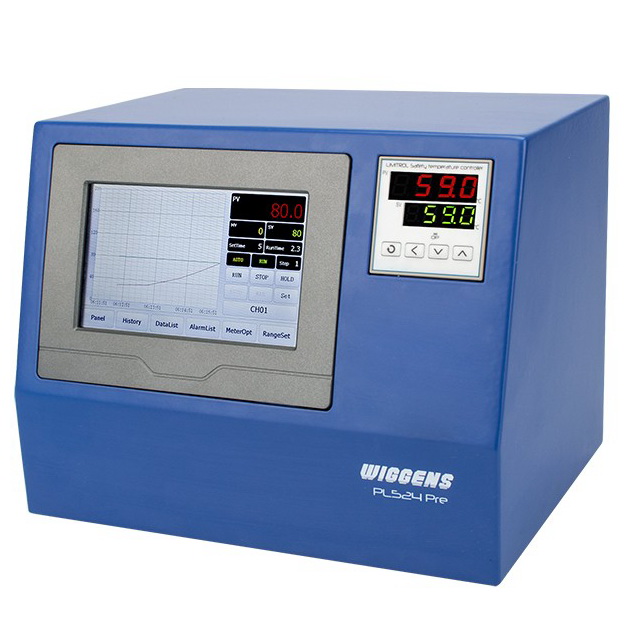

PL524 Pre | Programmable temperature controller for heating and cooling








Key Features

  • Ideal for a wide range of temperature control applications using heating mantles and water and oil baths
  • Heating and cooling range from -100ºC  to +550℃
  • Programmable
  • 5" TFT touch screen
  • Adjustable safety temperature range with separate LED control panel
  • RS232, RS485, Ethernet and USB-A interfaces
  • Alarm signal

Description

The PL524 Pre is a high precision controller that uses an advanced PID algorithm to minimise variability and overshoot of the heating and cooling profile. The unit also includes a self-adjustment function to monitor product temperature with feedback being provided to the controller through a PT100 sensor or a K-type thermocouple.

The programmable PL524 Pre has a heating and cooling range from -100ºC  to +550℃. Data entry and parameter control is through a 5" TFT true colour touch screen with LED backlight.

The PL524 Pre also features an adjustable safety temperature range that can be set through a separate control panel.

Specifications

ManufacturerWiggens
Controller model numberPL524 Pre
Adjustable temperature range-100ºC to +550ºC
Adjustable safety temperature range0ºC to 500ºC with 1ºC resolution
Temperature controlAutomatic PID algorithm control
Measurement and control sensor (standard)PT100: four lead method
Measurement and control sensor (optional)K-type thermocouple
Usable memory150 MB
InterfaceRS232, R485, Ethernet and USB-A
DisplayTFT true colour touch screen with LED backlight
Display accuracy±0.1%
Temperature stability±0.03% or better
Resolution0.01ºC
Ambient temperature operating range-10ºC to +35ºC
Humidity operating range≤90%
Power supply100 VAC to 240 VAC | 50-60 Hz
Power consumption≤6.5 W
Maximum current15 A
Weight3.5 Kg
