W1031201 | High flow chemically-resistant diaphragm vacuum pumps (C1200E), maximum vacuum 80 mbar, maximum flow rate 120 L/min
Key Features
- High pumping speeds are ideal for industrial applications
- All vapour contact material constructed of PTFE
- Highly resistant to acid, base and solvent vapours
- Maximum vacuum down to 80 mbar. Vacuum can be controlled by manual valve or vacuum controller (DVR480).
- Flow rate of up to 120 L/min (7.2 m³/ hour) at atmospheric pressure
- Direct-driven motor reduces noise and vibration
- Resistant to high and low temperatures
- Tightly sealed to prevent damage to internal components
- Overheating protection with automatic restart when motor cools
- Easy maintenance as no oil or lubricant changes required
Description
The C1200E from Wiggens is resistant to acid, base and solvent vapours as well as to high and low temperatures. All vapour contact materials of this tightly-sealed unit are constructed of PTFE and the instrument features overheating protection to prevent damage to the pump. The C1200E can achieve flow rates of up to 120 L/min (7.2 m³/hour) at atmospheric pressure and a maximum vacuum down to 80 mbar.
The C1200E pump is direct-driven from the motor so there is no belt-driven transmission. This reduces both instrument vibration and noise.
Optional Accessories
Manual vacuum controllers
Part Number | Description |
169311-06 | Chemically-resistant vacuum controller/filter. Includes: Analog vacuum gauge, filter, filter cartridge and vacuum regulator |
169312-06 | Chemically-resistant vacuum controller. Includes: Vacuum trap and digital vacuum meter |

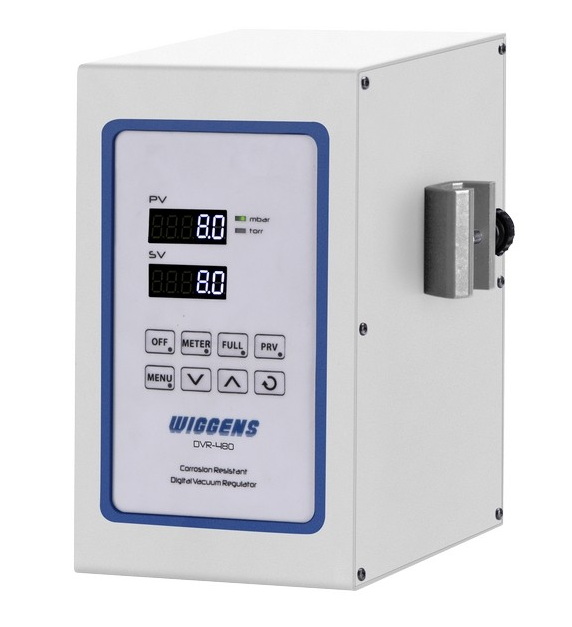

Chemically-resistant vacuum controller (DVR480)
The DVR480 chemically-resistant vacuum controller is ideal for automated control of our range of high flow chemically-resistant diaphragm vacuum pumps.
Key Features
- Large measurement and control range
- Vacuum control down to 0.1 mbar
- Programmable up to 5 steps
- All parts that come into contact with gases are made of PTFE or highly durable ceramic to ensure high chemical resistance
- Bright LED display and convenient on-touch control
- RS-232 and analog connection available
- Pressure release feature for easy vacuum system installation
- Direct electric control of the vacuum pump
- Suitable for continuous operation
Specifications
Manufacturer | Wiggens |
Model number | C1200E |
Pump head | Single stage |
Flow rate (m³/hour) at atmospheric pressure | 7.2 |
Flow rate (L/min) at atmospheric pressure | 120 |
Maximum vacuum (mbar) | 80 |
Motor speed (rpm) | 1380 |
Hose connection (inlet) | KF-25 to 1) |
Hose connection (outlet) | G1/2 to 1) |
Dimensions (W x D x H) | 440 mm x 270 mm x 240 mm |
Weight (Kg) | 21.5 |
Electrical requirements | 220 V: 50 Hz |
Maximum power (W) | 370 |
Maximum current (A) | 2 |
Noise level (dB) | 50 |
