HD3030 | Dissolved oxygen meter








Key Features

  • Battery power makes the DO80 ideal for field use
  • Simultaneous display of dissolved oxygen and temperature
  • One touch calibration in air
  • Able to set salinity and atmospheric pressure compensation
  • Automatic altitude compensation setting
  • Save up to 99 measurements in memory along with date and time
  • Computer link with optional USB cable and software kit
  • Able to show maximum and minimum reading of saved data
  • Backlit display for night use

Description

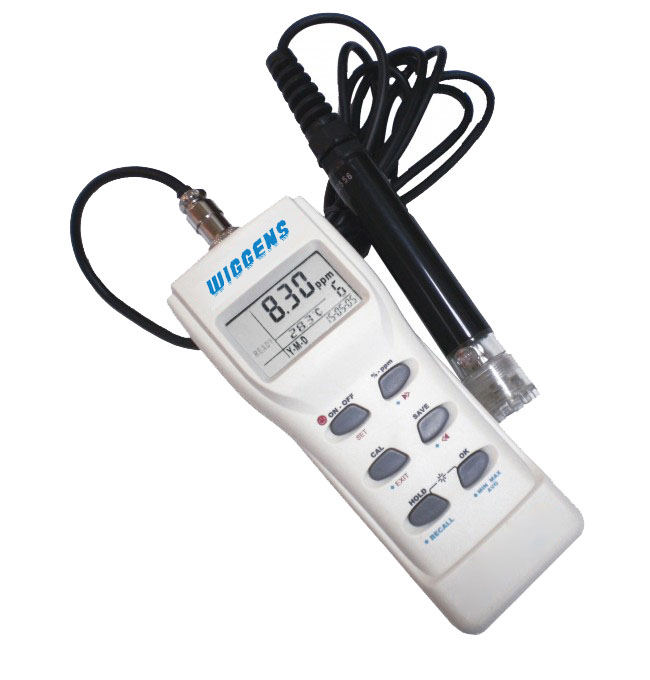

The Wiggens DO80 dissolved oxygen meter is battery powered which makes it ideal for field use. The meter comes with a standard probe on a 3 metre cable (5 metre option also available) for submerged testing in streams, ponds or water tanks.

The DO80 has been designed so that users can preset salinity compensation and atmospheric compensation to allow direct reading without any conversion tables. The instrument also features one touch calibration in air and a backlit display for night use.

The DO80 can store up to 99 recordings along with the date and time that the recordings were made.

Purchasing Information

The following items are included in the purchase of the DO80:

  • Dissolved oxygen meter (DO80)
  • Dissolved oxygen probe with 3 metre cable (PD3030-3)
  • Syringe set
  • Dissolved oxygen electrolyte x 2 bottles
  • Dissolved oxygen membrane and ring x 2 pcs (AD3030)
  • Carrying case
  • Operating manual

Optional Accessories

Part NumberItem Description
PD3030-5Dissolved oxygen probe with 5 metre cable


Specifications

Manufacturer
Wiggens
Model number
DO80
Measuring range
0 - 20 ppm, 0 - 50℃
Display resolution0.01 ppm, 0.1℃
Accuracy (instrument only)± 1.5% full scale, 0.3℃
Operating temperature0 to 50ºC
CalibrationSingle point calibration in air at 100%
Battery type4 x 1.5 V AAA (or optional 9 VDC adaptor)
Battery lifeApproximately 100 hours of continuous use
Dimensions (W x D x H) 40 mm x 36 mm x 195 mm
Weight150 grams
