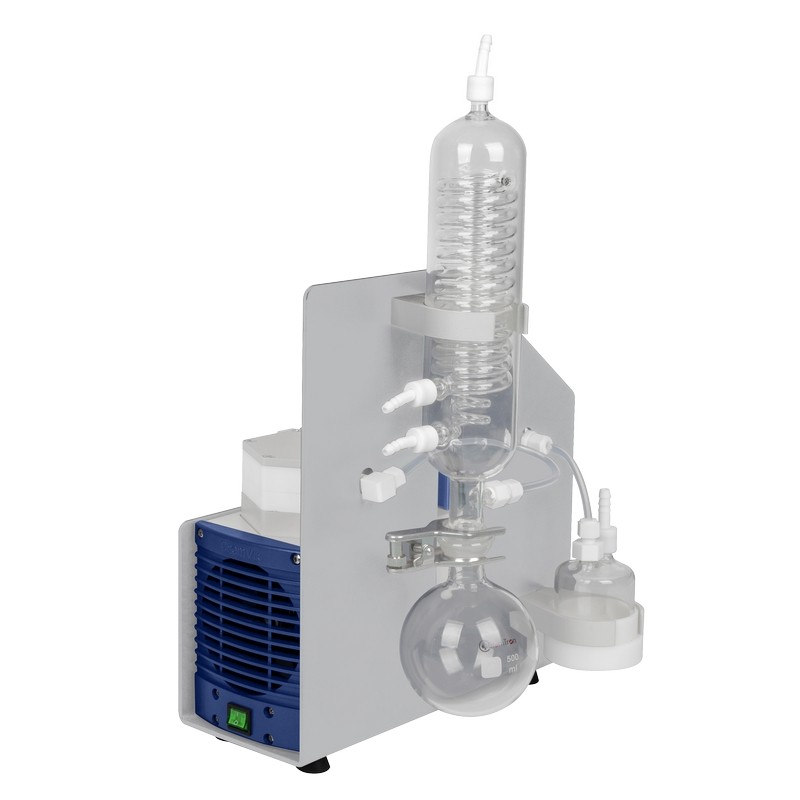

900513 | Solvent recovery system (CSH 510) with chemically-resistant diaphragm vacuum pump, maximum vacuum 8 mbar, maximum flow rate 34 L/min

Key Features

• Highly efficient recovery even at low vacuum minimises solvent waste
• Compact design with chemically-resistant diaphragm vacuum pump that operates quietly and with minimal vibration
• Pump is gas-tight, 100% oil- and maintenance-free
• Maximum vacuum of 8 mbar and maximum flow rate of 34 L/min
• Ambient operating temperature of +5°C to +40°C
• Buffer bottle prevents particles from damaging the vacuum pump
• Pump overload protection

Description

The CSH 510 solvent recovery system provides a highly efficient and optimal method for recovering waste solvents. The system is compact and includes a C510 diaphragm vacuum pump that operates with minimal vibration and noise.

Condensable components are separated out using the high performance condenser and collected in a glass flask attached to the condenser flange. Condensation temperature is maintained by running cold water or recirculation coolant through the condenser.

The CSH 510 can generate a maximum vacuum of 8 mbar and a maximum flow rate of 34 L/min.

Additional information

The following components are included with the purchase of the CSH 510 solvent recovery system:

• Chemically-resistant diaphragm vacuum pump (C510 model)
• Pump base plate and mounting mechanism
• Separator
• Glass flasks
• Condenser
• Tubing

Specifications

Manufacturer	Wiggens
Model number	CSH 510
Built-in pump type	C510 diaphragm vacuum pump
Ambient operating temperature	+5°C to +40°C
Power	245 W
Maximum vacuum	8 mbar
Maximum continuous pressure	1 bar
Maximum flow rate	34 L/min
Outlet size (outer diameter)	10 mm
Weight	15.8 Kg
Power requirements	230 VAC: 50 Hz
