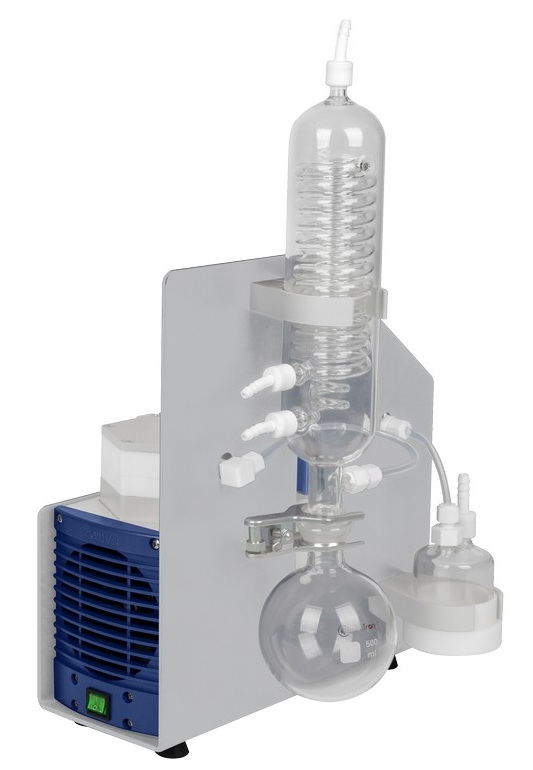

900512 | Solvent recovery system (CSH 410) with chemically-resistant diaphragm vacuum pump, maximum vacuum 13 mbar, maximum flow rate 25 L/min








Key Features

  • Highly efficient recovery even at low vacuum minimises solvent waste
  • Compact design with chemically-resistant diaphragm vacuum pump that operates quietly and with minimal vibration
  • Pump is gas-tight, 100% oil- and maintenance-free
  • Maximum vacuum of 13 mbar and maximum flow rate of 25 L/min
  • Ambient operating temperature of +5°C to +40°C
  • Buffer bottle prevents particles from damaging the vacuum pump
  • Pump overload protection

Description

The CSH 410 solvent recovery system provides a highly efficient and optimal method for recovering waste solvents. The system is compact and includes a C410 diaphragm vacuum pump that operates with minimal vibration and noise.

Condensable components are separated out using the high performance condenser and collected in a glass flask attached to the condenser flange. Condensation temperature is maintained by running cold water or recirculation coolant through the condenser.

The CSH 410 can generate a maximum vacuum of 13 mbar and a maximum flow rate of 25 L/min.

Additional information

The following components are included with the purchase of the CSH 410 solvent recovery system:

  • Chemically-resistant diaphragm vacuum pump (C410 model)
  • Pump base plate and mounting mechanism
  • Separator
  • Glass flasks
  • Condenser
  • Tubing

Specifications

ManufacturerWiggens
Model numberCSH 410
Built-in pump typeC410 diaphragm vacuum pump
Ambient operating temperature+5°C to +40°C
Power95 W
Maximum vacuum13 mbar
Maximum continuous pressure1 bar
Maximum flow rate25 L/min
Outlet size (outer diameter)10 mm
Weight12.5 Kg
Power requirements230 VAC: 50 Hz
