BS-010207-AAK | Vortexer for tubes and microcentrifuge tubes (Multi-Vortex V-32)

Key Features

• Ideal for mixing tubes or microcentrifuge tubes
• 2 mm orbit
• Variable speed range from 500 rpm - 3000 rpm
• Operates in continuous or impulse mode
• Maximum continuous operating time up to 24 hours
• A range of platforms available (please see below)

Description

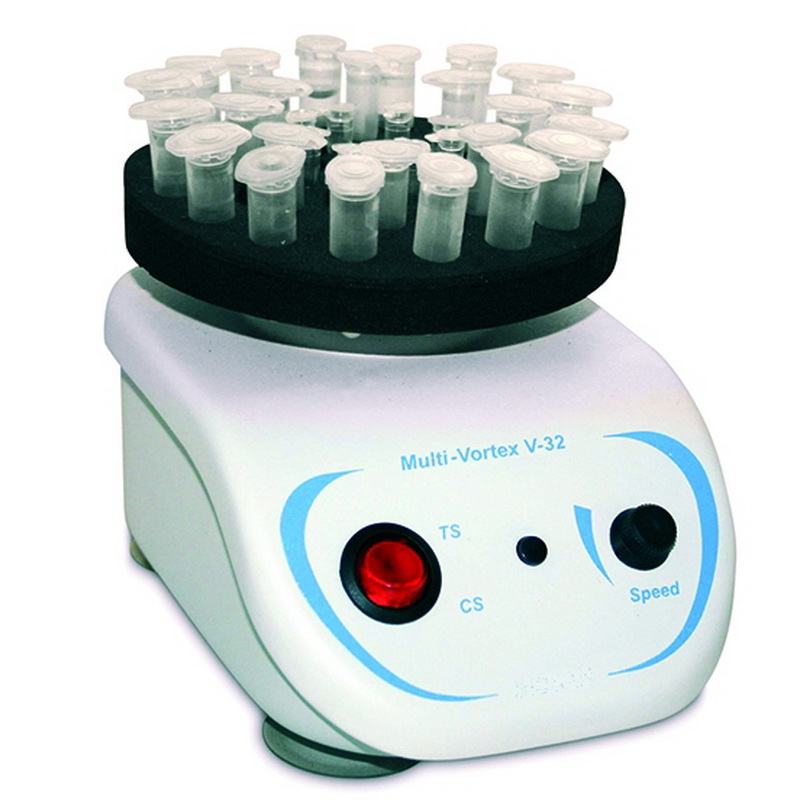

The Multi-Vortex V-32 tube vortexer is an economically-priced option that is ideal for applications such as vortexing of bacteria and yeast cultures or for DNA/RNA purification.

The V-32 has a 2 mm orbit and a speed range from 500 rpm - 300 rpm. The instrument can operate in impulse or continuous mode and for up to 24 hours in continuous mode.

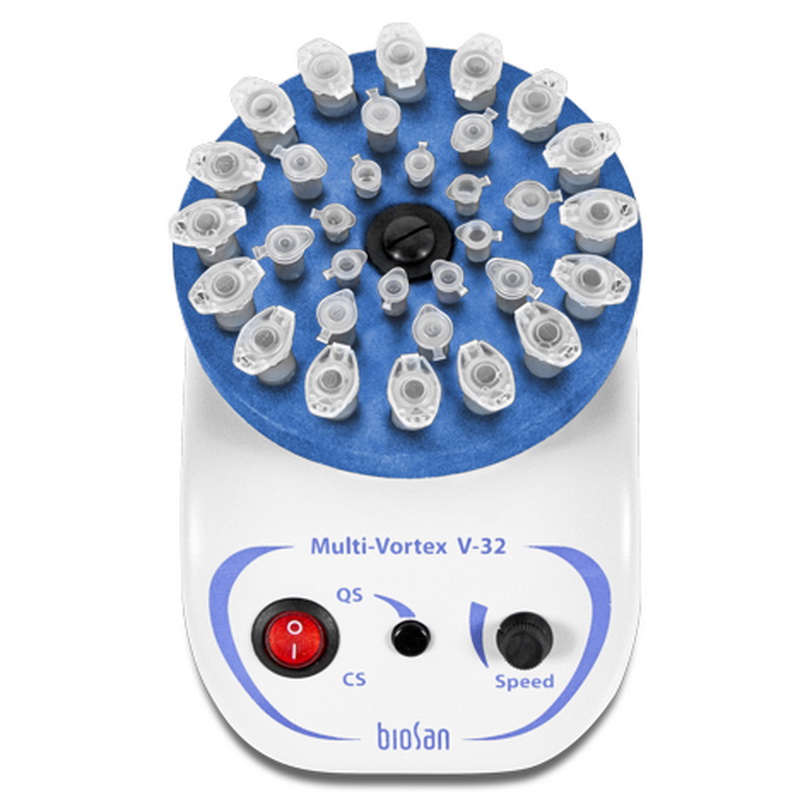

The Multi-Vortex can vortex up to 32 tubes at a time consisting of 8 x 0.2 mL, 8 x 0.5 mL, 16 x 1.5 mL or 16 x 2.0 mL microcentrifuge tubes with the PV-32 platform (shown below).

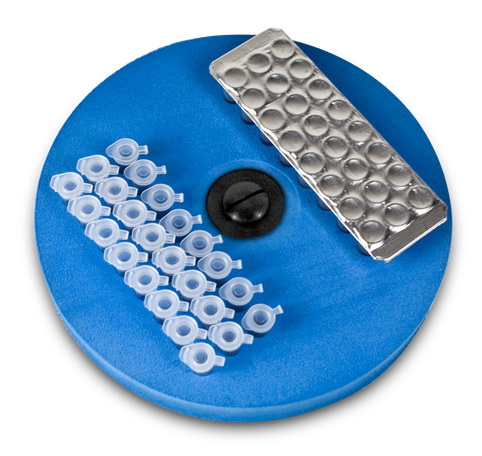

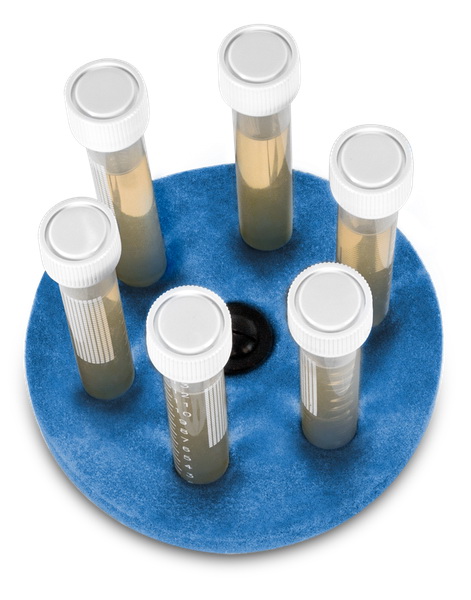

The V-32  can also vortex 0.2 mL tube strips or up to 48 x 0.2 mL microcentrifuge tubes with the optional PV-48 platform. Individual tubes up to 50 mL can be vortexed with the PL-1 platform and up to 6 x 10 mL tubes (maximum diameter of 15 mm) with the optional PV-6/10 platform (please see optional accessories).

Ordering Information

Included in the purchase of the Multi-Vortex V-32 are the PV-32 platform for 8 x 0.2 mL, 8 x 0.5 mL, 16 x 1.5 mL or 16 x 2.0 mL microcentrifuge tubes and the PL-1 platform for mixing single tubes with volumes up to 50 mL.

Optional Accessories

The following optional tube platforms are available for the V-32 tube vortexer:

Part Number	Description
BS-010207-GK	Platform for 6 x 0.2 mL tube strips or up to 48 x 0.2 mL microcentrifuge tubes (PV-48)
BS-010207-BK	Platform for 6 x 10 mL tubes (maximum diameter of 15 mm | PV-6/10)

Specifications

Manufacturer	Biosan
Model number	Multi-Vortex V-32
Vortexing method	Eccentric mixing
Vortex amplitude (orbit)	2 mm
Speed	500 rpm - 3000 rpm
Acceleration time	3 seconds
Maximum continuous operating time	24 hours
Operating methods	Continuous or impulse
Maximum load	70 grams
Tube capacity (standard tube holder)	8 x 0.2 mL, 8 x 0.5 mL, 16 x 1.5 mL or 16 x 2.0 mL microcentrifuge tubes
Dimensions (W x D x H)	120 mm x 180 mm x 100 mm
Weight	1.5 Kg
External power supply	Input:100 VAC - 240 VAC: 50/60 Hz| Output: 12 VDC
