nPro | UV/Vis nano spectrophotometer with full spectrum analysis for nucleic acids and proteins

Key Features

• Ideal for nucleic acids, proteins, OD600 measurements, and full-spectrum absorbance
• 1 µL minimum sample volume
• 190 nm - 1000 nm wavelength range
• 2 - 5 seconds measurement time

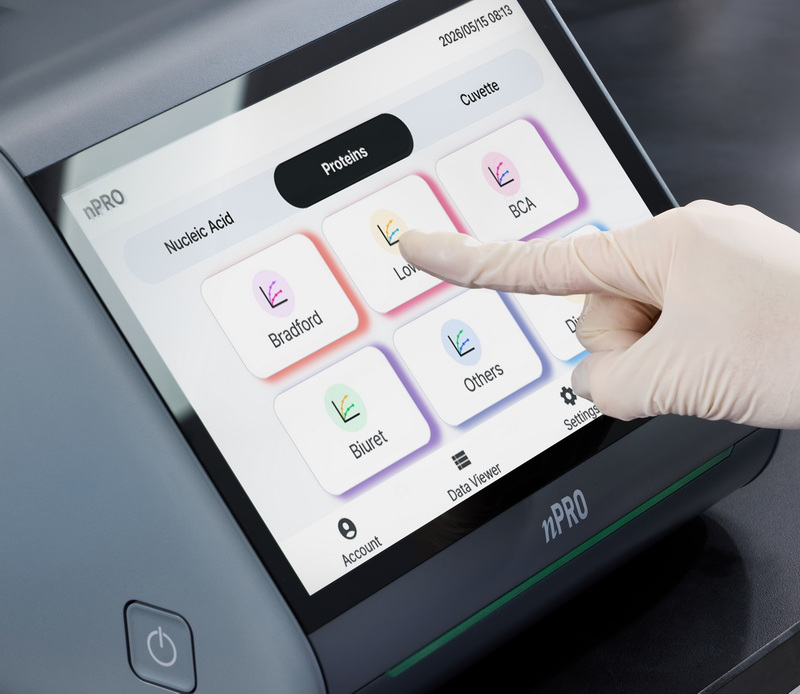

• 250 mm touchscreen control for instrument control and data acquisition
• Automatic door detection
• Precise cuvette temperature control
• Android-based intuitive GUI
• Smart Xenon lamp auto-control

Product Description

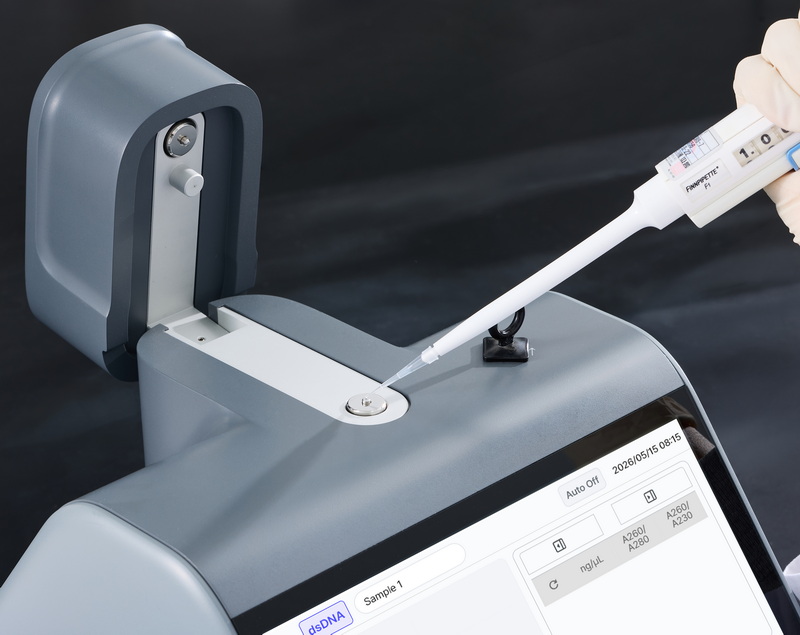

The MicroDigital nPro is an advanced UV/VIS nano spectrophotometer with full spectrum analysis. Sample volumes down to 1 µL can be analysed over a 190 nm - 1000 nm wavelength range. The nPro features an Android-based 250 mm touchscreen control for instrument control and data acquisition within a 2-5 second measurement time.

The nPro includes automatic sample door detection, precise cuvette temperature control, and smart Xenon lamp auto-control.

Key applications for the nPro include:

• Nucleic acids: dsDNA, ssDNA, RNA, oligoDNA and custom factors for concentration and purity workflows
• Cuvette and OD600: Cuvette workflows, OD600 and spectral analysis with temperature-ready cuvette measurements
• Proteins: Direct UV and protein assay workflows for BSA, IgG and custom protein factors
• Spectral analysis: Full-spectrum absorbance analysis for method development and sample investigation.
• Kinetic analysis: Track time-dependent absorbance changes for reaction monitoring, enzyme activity, and other cuvette-based kinetic measurements

More Information

Please click here to download a brochure describing the UV/Vis nano spectrophotometer with full spectrum analysis for nucleic acids and proteins.

Specifications

APPLICATIONS
Measurement modes	Nucleic acids, proteins, OD600 measurements, kinetics, end-point, spectrum, and custom methods
Nucleic acid outputs	A260, A260/280, A260/230
Protein methods	A280, BCA, Bradford, Lowry, Biuret and custom methods
MEASUREMENT
Instrument control	Built-in touchscreen
Minimal sample volume	1 µL
Measurement time	2-5 seconds
Repeatability	0.002 A at 1.0 mm path or 1% CV, whichever is greater
Pathlength	0.030-1.0 mm auto-ranging
DETECTION AND CONCENTRATION
Limit of detection, dsDNA	Pedestal: 2.0 ng/µL
Limit of detection, BSA/IgG	0.04 mg/mL
Maximum concentration, dsDNA	Pedestal: 27,500 ng/µL
Maximum concentration, BSA/IgG	820 mg/mL
OPTICAL PERFORMANCE
Wavelength range	190 nm -1000 nm
Wavelength accuracy	±0.5 nm
Photometric range	0.02-550 Abs, 10 mm equivalent
Spectral bandwidth	FWHM < 1.3 nm at Hg 546.08 nm
Light source	Xenon flash lamp
Detector	2048-element high-sensitivity CMOS linear sensor
PHYSICAL AND POWER
Dimensions	250 mm (W) x 300 mm (D) x 260 mm (H)
Weight	4.9 Kg
Operating voltage	12 VDC
Power consumption	Operating: 12-24W Standby: 6 W
Temperature control	RT-40°C, cuvette only (heating block temperature)
SYSTEM AND INTERFACE
Operating system	Android OS
CPU	Hexa-Core ARM® processor, up to 1.8 GHz, 64-bit architecture
Display	250 mm, 1280 x 800 high-definition colour display
Control interface	On-board touchscreen with display mirroring. Dedicated PC control software.
Touchscreen	Multipoint capacitive touch, compatible with lab gloves
Gesture recognition	Single point, swipe, and pinch
Internal storage	32 GB flash memory
CONNECTIVITY AND DATA MANAGEMENT
Ports and network	3 x USB ports, Ethernet, Wi-Fi
Network features	SMB file sharing and IPP network printing
PC compatibility	Windows® 10,11, 64-bit
Export and storage	Network drive, USB flash drive, internal storage
Printing	Network printing, auto-generated PDF report
