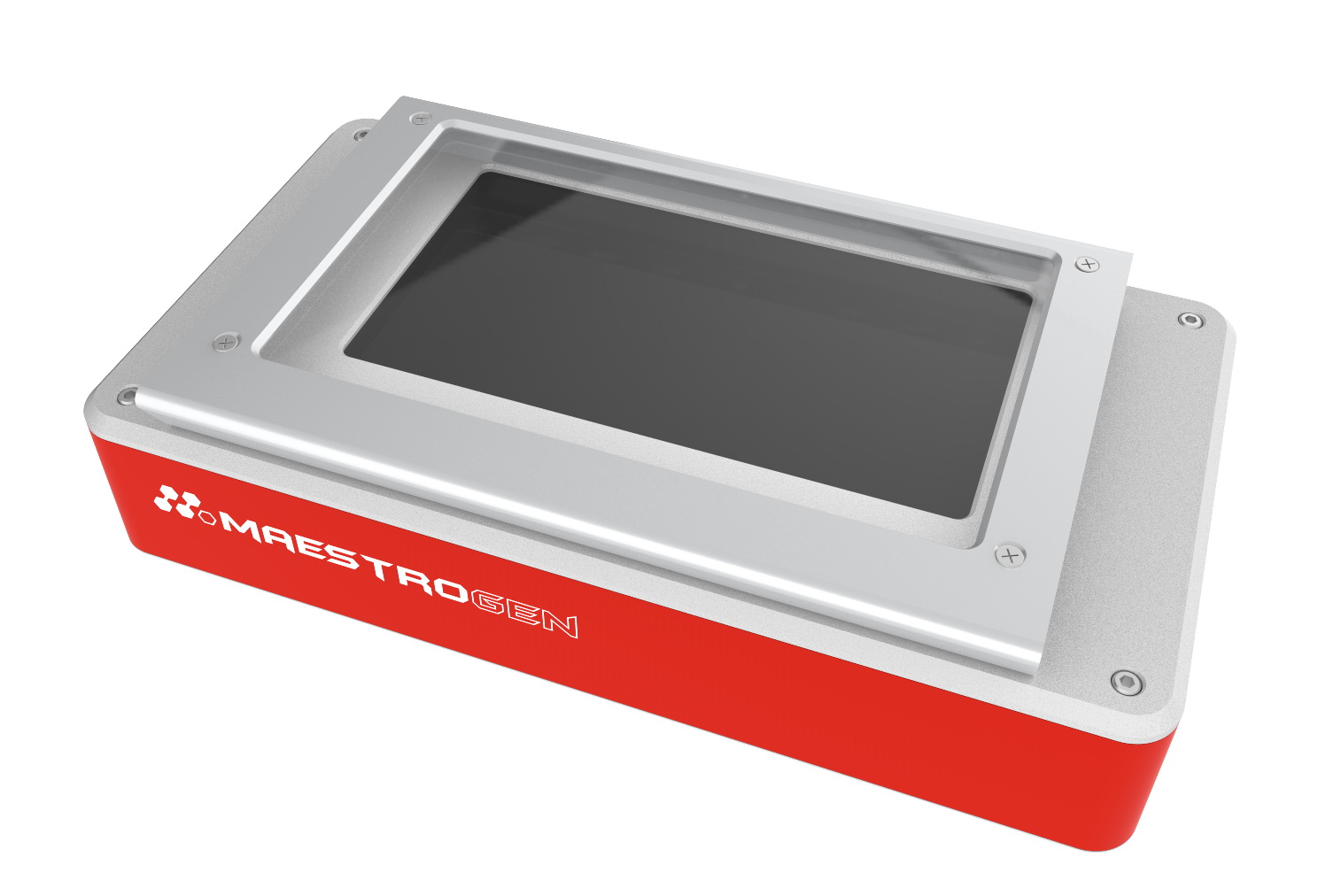

UUV-01 | UltraSlim UV transilluminator with protective cover for mini-gel imaging and band cutting, 302 nm emission, 150 mm x 80 mm sample viewing area

Key Features

  • Optimised for mini-gels
  • Compact and cost-effective
  • Powerful and uniform UV excitation with a CV of <5% across the viewing area
  • Sensitivity down to 0.5 ng
  • Adjustable and detachable UV blocking cover for band cutting


The Maestrogen UUV-01 UltraSlim UV transilluminator has been specifically designed for use with mini-gels. The unit is compact and slim and emits UV at 302 nm. A powerful and uniform UV source provides for ideal viewing conditions across the entire gel.

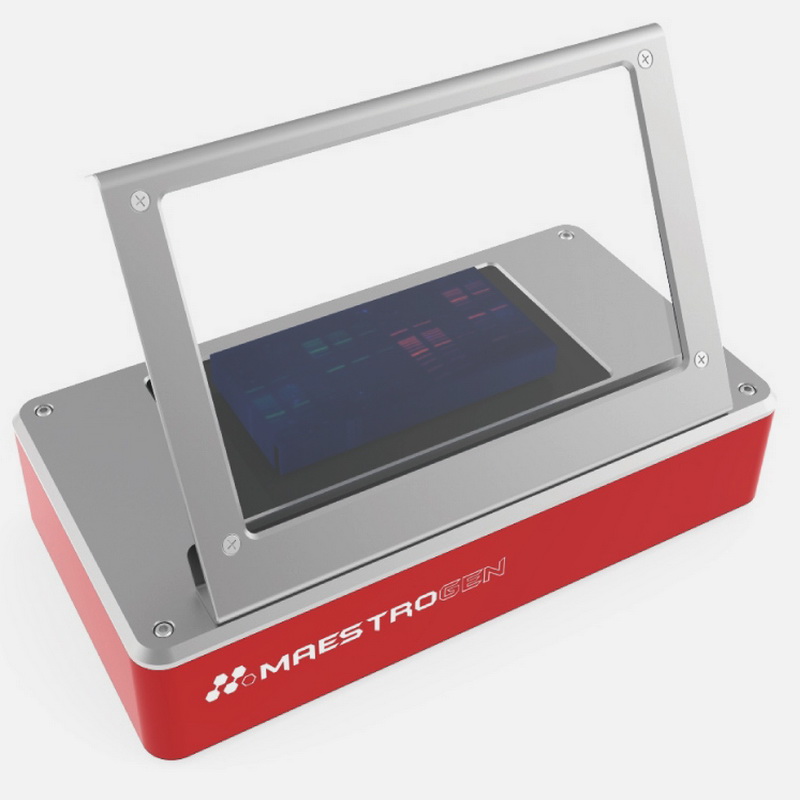

The UltraSlim UV is equipped with an adjustable UV blocking cover which is easily detached for access to the work surface.


Model number
Viewing surface (W x D)
150 mm x 80 mm
UV source
UV tubes: T5 6W UVB
UV Wavelength
302 nm
Compatible gels
50 mm x 60 mm, 105 mm x 60 mm and 125 mm x 60 mm
0.5 ng
Light uniformity across viewing area
<5% CV
Dimensions (W x D x H)
247 mm x 132 mm x 48.5 mm
12 VDC, 1.5 A power adapter
1.4 Kg
