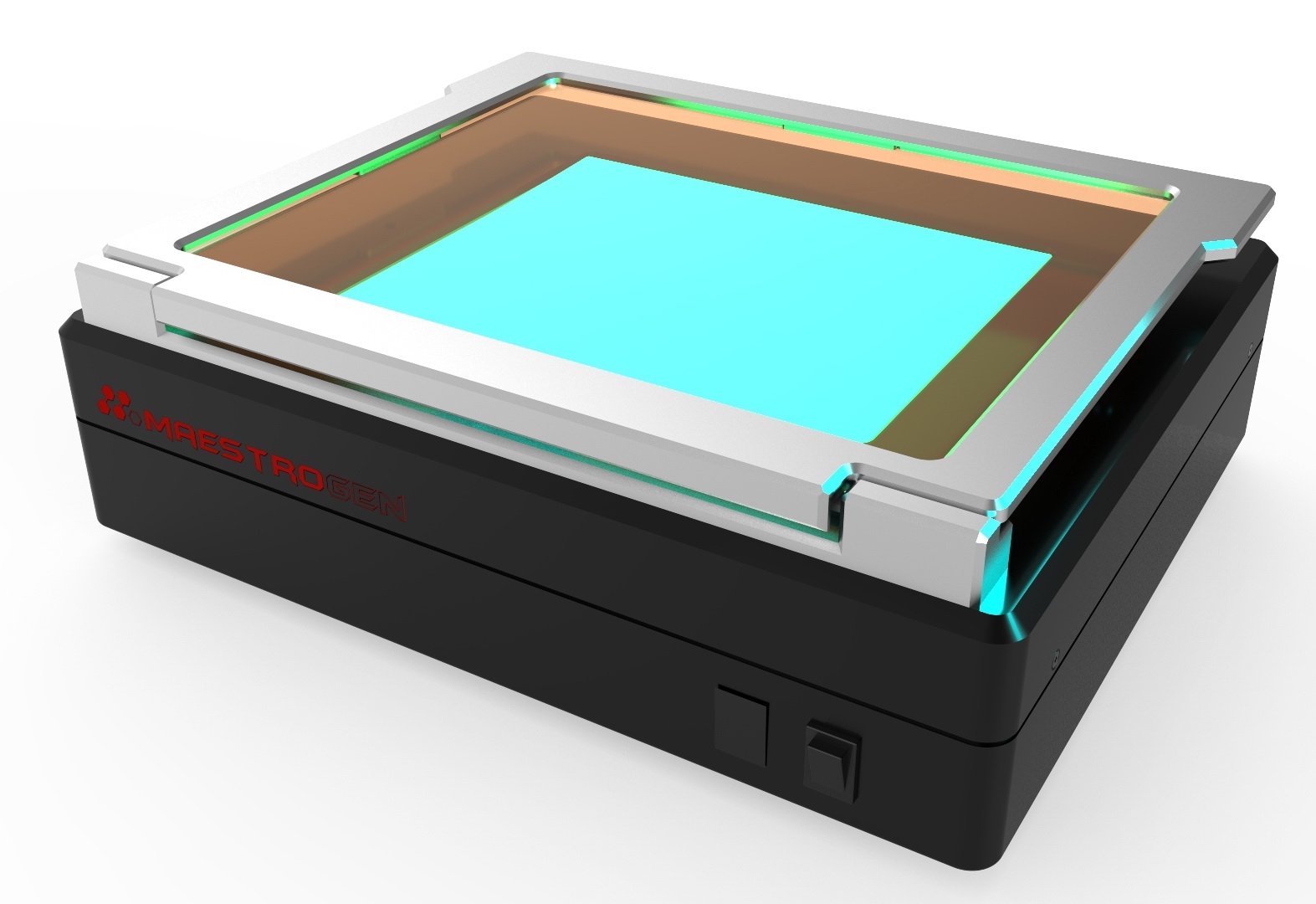

LB-18 | UltraBright LED blue/green light transilluminator for gel imaging and band cutting, 505 nm, 200 mm x 160 mm sample viewing area

Key Features

  • Incorporates powerful Nichia LEDs emitting blue/green light at 505 nm and a dichroic filter to significantly reduce background noise and highlight bands. Ideal for band cutting.
  • No damage to DNA and no risk to personnel from using UV
  • <5% CV across the full viewing area
  • Adjustable amber filter enclosed in aluminium alloy metal frame
  • 200 mm x 160 mm (W x D) sample viewing area
  • Sensitivity down to 1 ng nucleic acid


The Maestrogen UltraBright LED blue/green light transilluminator has two side-mounted high intensity LED arrays that generate uniform and bright excitation at 505 nm. This makes this instrument ideal for  excitation of a wide range of dyes including EtBr, SYBR® Safe, SYBR Gold, SYBR® Green I & II, SYPRO® Ruby, SYPRO® Orange, Coomassie Fluor™ Orange stains, GelGreen, GelRed and Lumitein™ Protein Gel Stain.

Gels up to 200 mm x 160 mm can be viewed. The use of a dichroic filter significantly blocks background noise and greatly enhances the contrast of bands to provide ideal viewing conditions for image capture and band cutting.


Model number
Sample viewing area200 mm x 160 mm (W x D)
LED emission wavelength505 nm
LED lifetime~50,000 hours
Light source
Nichia LED
SensitivityDown to 1 ng nucleic acid
Light uniformity across viewing area
<5% CV
Dimensions (W x D x H)
340 mm x 280 mm x 80 mm
Power consumption
24 W
Electrical requirements
100 - 240 VAC: 50/60 Hz
Weight3.8 Kg
