MS-MPSI-220 | Thermo shaker for four standard microplates, cell culture plates, PCR microplates, or deep well plates








Key Features

  • Wide shaking speed from 200 rpm to 1500 rpm
  • LCD screen displaying time, temperature, and shaking status simultaneously
  • Temperature range from ambient plus 5°C to 70°C
  • Timer range from 1 min ~ 99 hours and 59 min
  • 3 mm horizontal amplitude
  • Samples heated from above and below for temperature stability and low evaporation
  • Uses embedded heated film with PID temperature control technology for even heat distribution and accuracy

Product Description

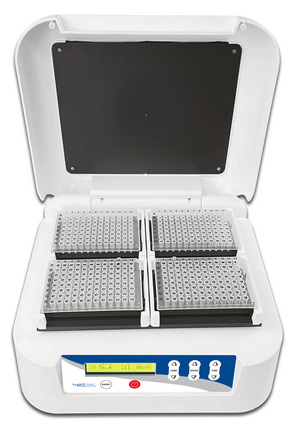

The MS-MPSI-220 microplate shaker combines both shaking and heating. It can either shake or heat or shake and heat up to 4 standard microplates, cell culture plates, PCR microplates, or deep well plates. The unit has a 3 mm orbit and shaking speed can be varied between 200 rpm and 1500 rpm.

The MS-MPSI-220 is ideal for applications such as:

  • Biological and chemical experiments requiring precise temperature control
  • ELISA plate reactions, sample incubation, and enzyme activity assays
  • Long-term experiments under controlled elevated temperatures

The MS-MPSI-220 uses embedded heated film with PID temperature control technology for even heat distribution and accuracy. Heat is transferred to the samples from both the platform and the heated lid. This heating from both sides guarantees excellent temperature stability and low evaporation. Temperature can be regulated from ambient plus 5°C up to 70°C. The MS-MPSI-220 features a 1 min to 99 hours 59 minutes timer and an alarm that sounds at the end of the programmed time.

Specifications

Manufacturer
Major Science
Model number
MS-MPSI-220
Number of plates
Up to 4 standard microplates, cell culture plates, PCR microplates, or deep well plates
Heating methodEmbedded heated film using PID temperature control technology
Display
LCD
SpeedVariable from 200 rpm to 1500 rpm
Timer range
1 minute to 99 hours 59 minutes or continuous
Shaking orbit3 mm horizontal rotation
Temperature rangeRoom temperature plus 5°C up to 70°C
Temperature setting resolution
0.1°C
Temperature stability
±0.1°C
Temperature uniformity
±0.5°C
Power250W
Weight8 Kg
Platform dimensions (W x D)
260 mm x 210 mm (Four x 105 mm x 130 mm tray plates)
Instrument dimensions (W x D x H)
350 mm x 320 mm x 200 mm
Electrical requirements220 VAC : 50/60 Hz
