SI-900 and SI-910 | Stackable Incubator and shaker with or without UV sterilisation

Key Features

• Available with or without UV sterilisation
• 26 mm orbital diameter
• 250 mm LCD display
• Stackable up to three layers
• Forced convection with internal circulation
• Constructed from SUS316L austenitic stainless steel for superior corrosion resistance
• Speed range from 10 rpm - 300 rpm
• Timer function
• Temperature range from 4°C - 60°C (in ambient range from 23°C - 25°C)
• Maximum capacity (No of flasks): 50 x 250 mL | 32 x 500 mL | 18 x 1000 mL | 15 x 2000 mL

Product Description

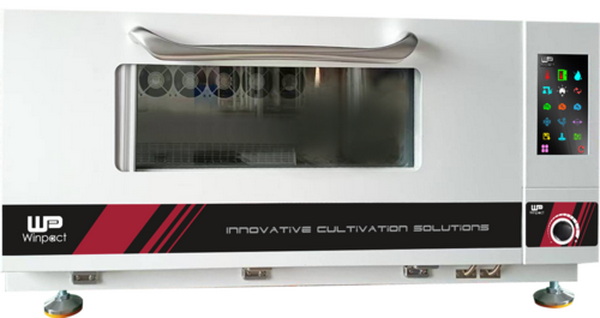

The SI-900 and SI-910 stackable incubator and shaker can be stacked up to three layers (single unit shown below) and are available with or wothout UV sterilisation. They are constructed from SUS316L austenitic stainless steel for superior corrosion resistance and are controlled through a 250 mm LCD display.

The SI-900 and SI-910 have a speed range from 10 rpm - 300 rpm and a 26 mm orbital. Air movement is performed by forced convection and internal circulation and the unit features a timer function of up to 9999 mins or 9999 hours. Flask sizes from 50 mL to 2000 mL are compatible with these units.

Instrument Options

Part Number	Description
SI-900	Stackable incubator and shaker
SI-910	Stackable incubator and shaker with UV sterilisation

More Information

Please click here to download a brochure for our stackable incubators and shakers.

Specifications

Manufacturer	Winpact
Platform size (L x W)	910 mm x 500 mm
Volume (L)	282
Maximum capacity (No of flasks)	50 x 250 mL | 32 x 500 mL | 18 x 1000 mL | 15 x 2000 mL
Platform type	Slide out
Platform material	SUS316L
Display mode	250 mm LCD
Timer	9999 mins or 9999 hours
Speed range	10 rpm - 300 rpm
Orbit diameter	26 mm
Temperature control range	4°C - 60°C (in ambient range from 23°C - 25°C)
Illumination	Yes
Air circulation	Forced convection | internal circulation
Sterilisation method	SI-900: None | SI-910: UV
Door opening	Glide-up
External instrument dimensions (W x D x H)	1362 mm x 962 mm x 568 mm (includes support foot and water pump filter)
Internal chamber dimensions (W x D x H)	1012 mm x 659 mm x 423 mm
Internal chamber material	SUS316L
Stackable external dimensions (W x D x H) (Includes support foot and water pump filter)	Single layer: 1505 mm x 962.5 mm x 586.5 mm Double layer: 1505 mm x 962.5 mm x 1154 mm Triple layer: 1505 mm x 962.5 mm x 1723 mm
Stackable weight	Single layer: 248 Kg Double layer: 438 Kg Triple layer: 626 Kg
Noise level	≤54 dB
Power supply	100 VAC/220 VAC (selectable) | 50/60 Hz | 1800W
