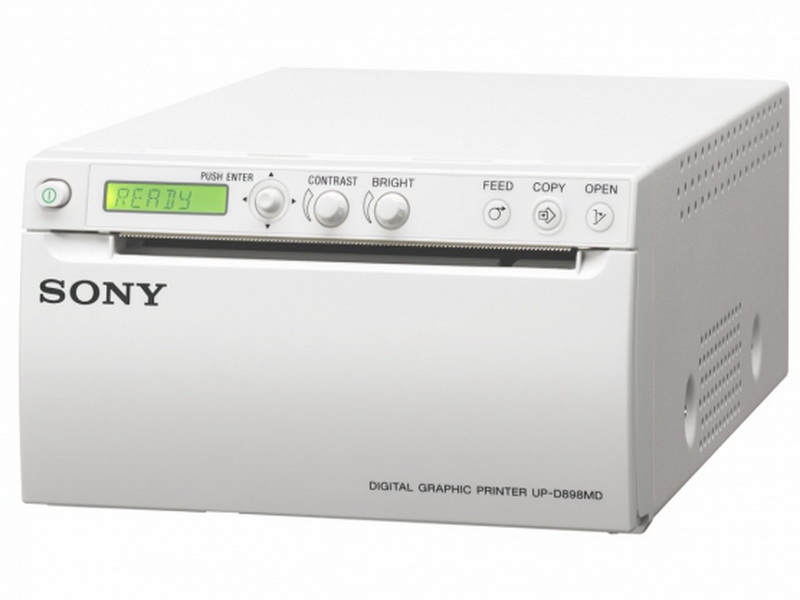

UP-D898MD | SONY UP-D898MD A6 digital black and white thermal printer for ultrasound, mobile C-arms and other medical and research applications


  • High quality digital image output using direct thermal printing
  • LCD display panel
  • Compact instrument design allows for easy integration into busy clinical or laboratory environments
  • A6 image prints in less than two seconds
  • Uses readily available print media (please click here for details)
  • Hard copy reference of print settings
  • Wide PC compatibility
  • Quick instruction guides for different print operations can be selected via the front control panel


The SONY UP-D898MD is a compact A6 medical grade black and white digital printer with built-in LCD display panel. It’s designed to be integrated into a wide range of compatible medical imaging environments such as ultrasound, mobile C-arm or cardiac catheterisation laboratories and its small footprint allows it to be easily mounted on a medical cart. It's also ideal for use in a laboratory setting for recording hard copies of gel images for record-keeping purposes.

The high quality thermal print engine of the UP-D898MD can produce near-photo quality prints of images captured by medical imaging systems for use in patient records and referrals. The UP-D898MD is capable of delivering high-quality black & white prints in under two seconds onto a choice or readily available print roll media (please click here for details).


Printing Method
Direct thermal printing
Compatible thermal paperUPP-110HD: UPP-110HG
325 dpi
8 bits (256 levels) processing
Picture Elements
Digital: 4,096 x 1,280 dots
Picture Area
320 mm x 100 mm
Paper Size
Width of 110 mm
Printing Time
High-speed mode: Approx. 1.9 seconds/image (960 x 1,280 dots) | Normal speed mode: Approx. 3.3 seconds/image (960 x 1,280 dots)
Picture Memory
Digital: 4,096 x 1,280 x 8 bit
1 x USB
Power Requirements
240 VAC, 50 Hz
Dimensions (W x H x D)
154 mm x 88 mm x 240 mm
2.5 Kg
