MUVB-122 | SmartView 122 transilluminator with both LED blue light and dual UV wavelength at 254 nm and 365 nm

Key Features

  • Built-in blue light LED module for operator safety and reduced sample damage
  • Detachable SmartView amber filter to optimize blue light technology
  • Fast start up without flickering to instantaneously illuminate tubes
  • Adjustable UV protection cover for better viewing angle
  • Long life UV protected filter
  • High/low UV intensity switch to minimize DNA degradation
  • High efficiency reflector provides optimum use of UV light

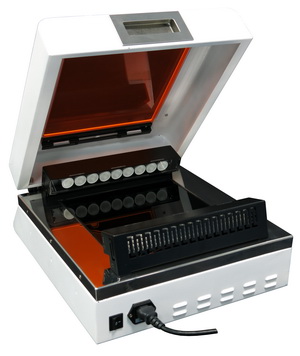

    The Major Science SmartView 122 transilluminator combines the safety of LED blue light with UV so that your lab only needs to purchase one instrument for both applications. Blue light is emitted at 470 nm and viewed through a detachable amber filter lid. The use of LED blue light for imaging gels provides the benefit of increased operator safety and reduced sample damage.

    The SmartView 122 transilluminator also emits UV at 254 nm and 365 nm for those dyes that are more optimally activated by UV light.


    Major Science
    UV wavelength254 nm and 365 nm
    Blue light wavelength470 nm
    Filter size210 mm x 210 mm
    UV light source9 x 8 W UV tubes
    Blue light sourceModule containing 9 x 1 W blue LEDs
    UV intensity switchHigh (100%)/ Low (70%)
    Power requirements100 VAC - 230 VAC, 50/60 Hz, 2 A
