BK-PS1000 | Semi-automated plate sealer for PCR plates, standard SBS microplates, and deep well plates
Key Features
- Compatible with a wide range of PCR plates, standard microplates, deep well plates and heat seals
- Precise temperature, timing and pressure for consistent sealing
- Rapid and uniform heating
- Adjustable sealing temperature
- OLED display
- Compact footprint
Description

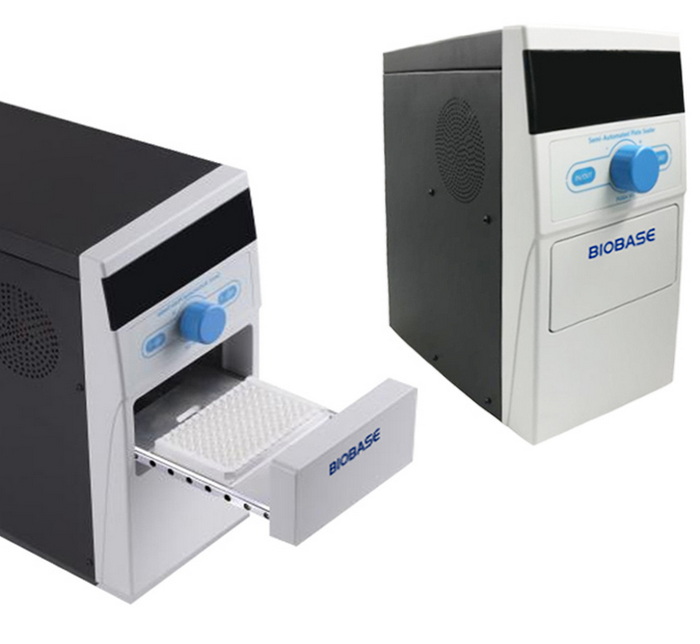

The BK-PS1000 semi-automated microplate heat sealer from Biobase is ideal for sealing a wide variety of microplates (Elisa, cell culture, PCR and deep-well plates) to store samples, prevent evaporation and minimize contamination. It can be used with a wide range of heat seals for PCR, colorimetric and fluorescence applications, and long term storage.
A plate sensing system provides uniform force to transfer heat evenly to the sealing surface.
Adapters

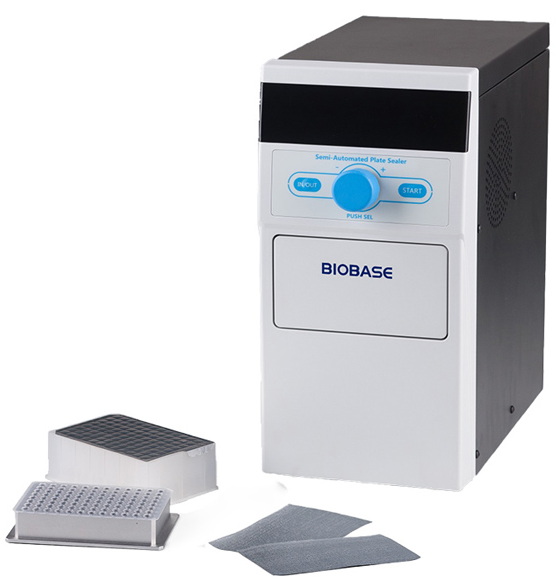

The following adapter plates are supplied with the BK-PS1000:
- Deep well plate adapter
- ELISA plate adapter
- 96 well microtiter plate adapter
An optional 384 well microtiter plate adapter is also available.
More Information
Please click here to download a brochure describing the BK-PS1000 semi-automated plate sealer for PCR plates, standard SBS microplates, and deep well plates.
Specifications
| Manufacturer | Biobase |
| Model number | BK-PS1000 |
| Display | OLED |
| Temperature accuracy | ±1°C |
| Sealing time | 0.5s - 10s (increments of 0.1s)
|
| Sealing temperature range | 80°C - 200°C (increments of 1.0°C)
|
| Plate height range | 9mm - 48mm
|
| Compatible plate materials | Polypropylene | Polystyrene | Polyethylene |
| Compatible plate types | Standard assay plates | Deep-well storage plates | PCR Plates: skirted, semi-skirted, non-skirted |
| Compatible sealing film types | Foil-polypropylene laminate | Clear polyester-polypropylene laminate | Clear polymer | Thin clear polymer |
| Standard Adaptors | Deep well plate | ELISA plate adapter | 96 well microtiter plate adapter
|
| Optional Adaptor | 384 well microtiter plate adapter
|
| Power | 300W |
| Electrical requirements | 220 VAC : 50/60Hz |
| Dimensions (W x D x H) | 370mm x 178mm x 330mm |
| Weight | 12 Kg |
