L010 | Rotary mixer for multiple tube sizes

Key Features

• Serial rotation of tubes with diameters from 4 mm - 27 mm
• Aluminium and stainless steel construction
• Wide range of bars or drums for holding tubes in place during rotation (please see below)
• Digital display

Description

The L010 rotary mixer from Kisker Biotech provides serial rotation of  tubes with a diameter range from 4 mm - 27 mm. Rotation is driven by a step-less controllable motor with a speed range of between 5 rpm and 50 rpm.

All parts are constructed from aluminium or stainless steel. Drums and bars are easy to interchange and the unit features a digital read-out of speed and time. Available functions include Memory, Restart and Auto-stop.

Optional Accessories

L010-4	Drum to hold 104 tubes of 4 mm - 6 mm in diameter
L010-6	Drum to hold 104 tubes of 6 mm - 9 mm in diameter
L010-912	Drum to hold 56 tubes of 9 mm - 12 mm in diameter

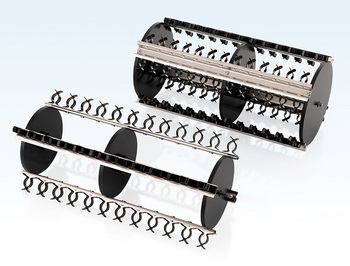

L010-9	Drum to hold 104 tubes of 9 mm - 12 mm in diameter
L010-12	Drum to hold 48 tubes of 12 mm - 16 mm in diameter
L010-16	Bar to hold 20 tubes of 16 mm - 20 mm in diameter
L010-19	Bar to hold 18 tubes of 19 mm - 22 mm in diameter
L010-22	Bar to hold 18 tubes of 22 mm - 27 mm in diameter

Specifications

Supplier	Kisker Biotech
Model number	L010
Speed range	5 rpm - 50 rpm
Timer	1 minute - 59 minutes: 1 hour to 99 hours
Weight	3.3 Kg
Dimensions (W x D x H)	450 mm x 170 mm x 190 mm
