JS1000 | JuLI Stage real-time live cell imaging system

Key Features

• Record and analyse images in real-time
• Multi-channel fluorescence imaging (GFP, RFP, and DAPI) and Brightfield
• Collect images from multiple sizes of cell culture plates (6-well to 384-well), slides, Petri dishes, and flasks
• Fully automated X-Y-Z stage
• Range of objective lenses (4X, 10X and 20X)
• Ideal for time-lapse imaging
• Compact
• Extensive software capability (please see below)

Product Description

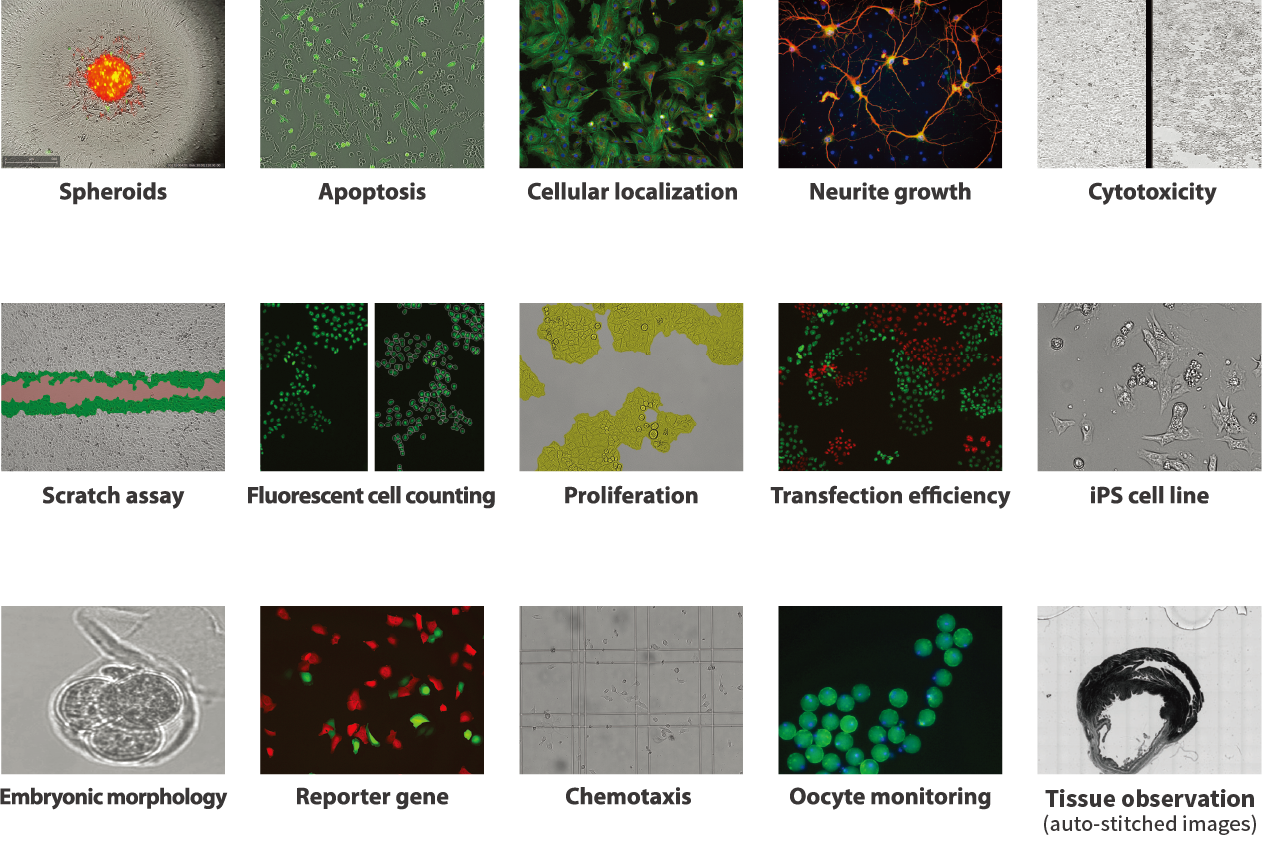

The JS1000 JuLI Stage imaging system provides unparalleled capability for real-time live cell imaging. Key applications for the JS1000 include:

• HCS cell imaging analysis (6 well to 384 well)
• Cell culture quality control | Cell culture optimization
• Live cell imaging (time lapse) and cell growth monitoring stem cell development
• Cell-based assay optimization
• Cell proliferation
• Cell localization
• Cell cytotoxicity
• Cell migration studies | Scratch‐wound assays
• Angiogenesis
• Protein expression
• Kinetic imaging and cell differentiation

The JS1000 allows images to be recorded and analysed in real-time and features multi-channel fluorescence imaging (GFP, RFP, DAPI) as well as Brightfield. The JuLI Stage includes a fully automated, and highly accurate, X-Y-Z stage that can hold multiple sizes of cell culture plates (6-well to 384-well), slides, Petri dishes, and flasks using a range of vessel holders (please see below).

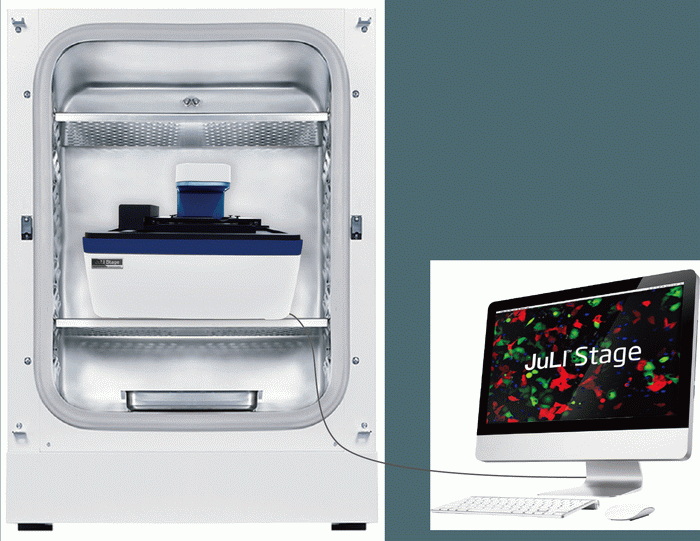

The JS1000 is supplied with a range of objective lenses (4X, 10X and 20X) and is compact enough to fit into various type of incubators including CO₂ incubators. Please see Related Products below or visit our website to view our complete range.

SOFTWARE

JuLI STAGE CONTROL, ACQUISITION and ANALYSIS SOFTWARE

The JuLI STAGE live cell imaging system software features an extensive range of acquistion and analysis functions. These include:

Cell History Recorder:

• Fully automatic time-lapse imaging function
• Observe cells in real-time and record a cell history from start-to-finish
• Revert to the desired time point

Multi-position Imaging:

• Take any number of images from any positions of a well

Stitching Function:

• Allows the acquisition of images to generate a whole cell

Focus Options:

• Acquire high quality images using the Z-stack focus option

Image Edit:

• Import, verify and re-edit project data taken from the JuLI™ Stage
• Brightfield: Improve image quality with background correction | Fluorescence: Improve image quality with the auto-adjust function
• Make various types of movies

STAT image statistics:

• Import, verify and re-edit project data taken from the JuLI™ Stage
• Get result data from projects and generate graphs from this data
• Attached cell counting
• Plate editor: Design your experimental workflow

OPTIONAL SOFTWARE

SCRATCH STAT

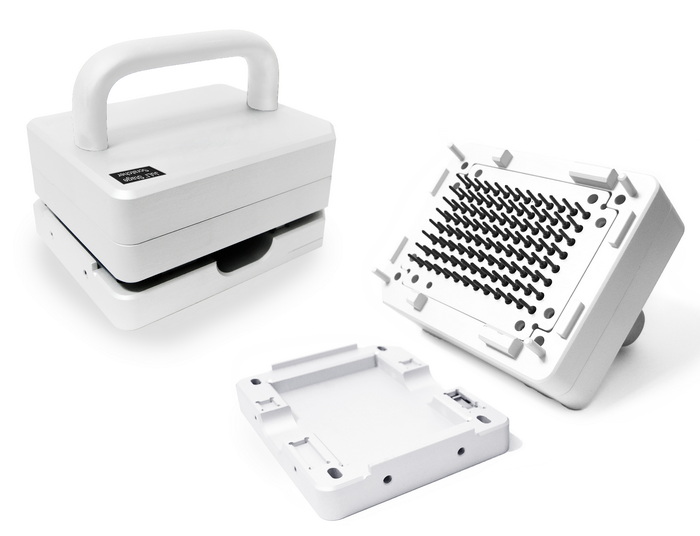

• Includes Scratcher that easily creates a scratch line in 96 wells
• Analyses scratches in real-time

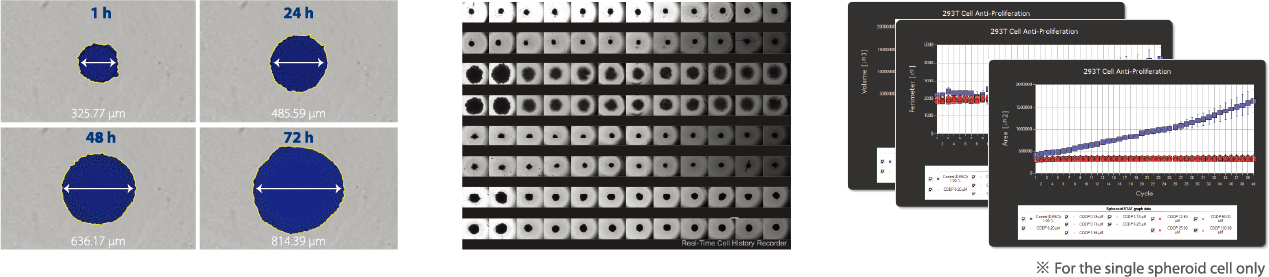

SPHEROID STAT

This software provides various analysis functions for up to 96 spheroids in real-time.

More Information

Please click here to download a brochure describing the JuLI real-time live cell imaging system.

Watch videos of JuLI Stage recordings:

Ordering Information

Catalog Number	Product Description
JS1000S	JuLI Stage, Starter Pack JuLI Stage real-time imaging system, desktop computer and monitor, and 3 objective lenses (4X, 10X & 20X)
JP0100	Desktop Computer CPU:  Intel  i5 9th gerneration  or  over  spec. OS: Windows® 10 Pro 64 bit RAM: 16 GB Hard drive: 2 TB Network: Gigabit Ethernet
JMO100	Desktop Monitor 24" Full HD (1920 x 1080) monitor
J00004	Objective Lens (4X) Magnification :4X, NA: 0.16
J00010	Objective Lens (1OX) Magnification : 10X, NA: 0.3
J00020	Objective Lens (20X) Magnification : 20 X, NA : 0.45
JPO150	External Hard Disk Drive (Optional) Total 8 TB (4TB x 2 ea)
JVH001	Vessel Holder (Optional) Micro Slide (26 x 76 mm)
JVH002	Vessel Holder (Optional) Petri Dish (35 mm)
JVH003	Vessel Holder (Optional) Petri Dish (60 mm)
JVH004	Vessel Holder (Optional) Petri Dish (100 mm)
JVH005	Vessel Holder (Optional) T-Flask (25 cm2 and 75 cm2)
JSCT100	JuLI Analysis Software (Scratch) JuLI Scratch STAT JuLI Scratcher
JSPT100	JuLI Analysis Software (Spheroid) JuLI Spheroid STAT

Specifications

Manufacturer	NanoEntek
Model number	JS1000
Light source	Blue LED, Green LED, UV LED (Intensity adjustable)
Objective lens	4X, 10X, 20X | Digital zoom | interchangeable objective lens
Fluorescence	DAPI, GFP, RFP
Camera	High-sensitivity monochrome CCD (Sony sensor 2/3”) | 1,936 x 1,456 pixels (2.8M), 53 FPS, 14 bit
Stage	Automated, motorized, X-Y-Z stage | interchangeable vessel holder
Export formats	Image: JPEG, TIFF, BMP, PNG Video: AVI Raw data: CSV
Computer	CPU:  Intel  i5 9th  generation  or over spec. OS: Windows® 10 Pro 64 bit RAM: 16 GB Hard drive: 2 TB Network: Gigabit Ethernet
Monitor	24" Full HD (1920 x 1080) monitor
Operating power	Input: 100-240VAC, 1.5A, 50/60Hz  Output: 12VDC, 5.0A
Operating environment	5°C - 40°C | 20% - 95% humidity
Dimensions (W x H x D)	429 mm x 310 mm x 324 mm
Weight	18 Kg
