SI-200 | Programmable shaking incubator with variable speed range and multiple labware options

Key Features

• Programmable or continuous mode options
• Brushless DC motor reduces operating noise and significantly increases motor life
• Hermetic chamber design also reduces operating noise and enhances precise temperature control
• Sensitivity adjustable G-sensor for weight imbalance detection
• Multiple early error detection mechanisms ensure safety of operator and samples in the event of a device malfunction
• Specially designed drainage channel protects the motor and inner circuitry from accidental spills
• A wide selection of racks, holders, sticky pads and accessories allow shaking and incubation using a wide range of different labware (please see options below)
• Automatic system shutdown in the event of system overheating
• 2-point temperature calibration ensures high temperature performance
• Acrylic lid for clear viewing and easy access

Description

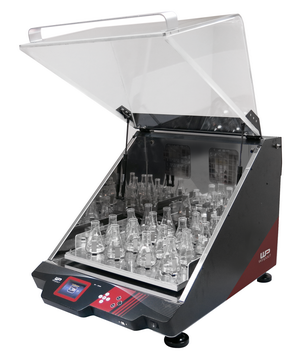

The  programmable SI-200 Shaking Incubator from Winpact features a brushless DC motor that reduces operating noise and significantly increases motor life. Noise reduction is also augmented by the hermetic chamber design that, in conjunction with 2-point calibration, also enhances the system's precise temperature control. The SI-200 can also be run in continuous mode.

A wide selection of racks, holders, sticky pads and accessories makes the SI-200 highly flexible for shaking and incubation using a wide range of different labware (please see options below). The unit features a large acrylic lid for clear viewing and easy access and a specially designed drainage channel protects the motor and inner circuitry from accidental spills.

Other safety features have been incorporated into the SI-200 in order to protect the operator and critical lab samples. A sensitivity adjustable G-sensor has been incorporated into the incubator to identify weight imbalance and multiple error detection systems ensure the safety of the operator and samples in the event of a device malfunction. These include automatic system shutdown in the event of the unit overheating.

Incubator Options

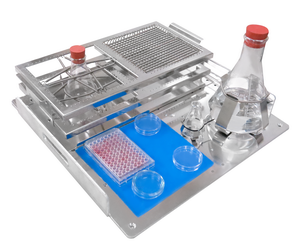

Racks and Trays

Item Number	Description	Capacity
SI-200-01	Universal platform	1
SI-200-02	Adjustable angle tube rack (holds 33 x 15 mL tubes)	4
SI-200-03	Adjustable angle tube rack (holds 16 x 50 mL tubes)	4
SI-200-04	Universal Spring Rack	2
SI-200-05	Sticky Pad platform	1
SI-200-06	Universal Cushioned Crossbar	1

Microplate and Flask Holders

Item Number	Description	Capacity
SI-200-07	Microplate holder	9
SI-200-08	Flask holder, 50 mL	52
SI-200-09	Flask holder, 125 mL	25
SI-200-10	Flask holder, 250 mL	25
SI-200-11	Flask holder, 500 mL	16
SI-200-12	Flask holder, 1000 mL	9
SI-200-13	Flask holder, 2000 mL	5

Specifications

Manufacturer	Winpact
Platform size	460 mm x 460 mm
Shaking orbit	19 mm
Speed range (rpm)	20 rpm - 500 rpm
Speed control	1 rpm
Communication port	RS-485, PT-100
Heating temperature range	Ambient +5ºC to +65ºC
Heating output	300W
Temp accuracy and uniformity	±0.25ºC at 37ºC
Timer	1 min to 999 hours, continuous operation

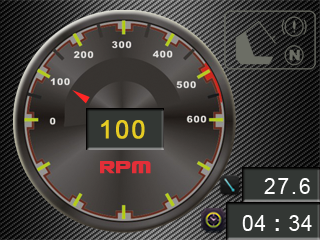

Display	90 mm colour TFT LCD screen
Unit dimension (W x D x H)	820 mm x 590 mm x 570 mm
Unit weight	70 Kg
Voltage	110V/220V: 50Hz/ 60Hz
Certification	CE, FCC
