200200C | Platform shaker with orbital or reciprocal shaking actions and variable speed control (WS-100D)

Key Features

• Selectable orbital or reciprocal motion
• Mix and match clockwise, counterclockwise, start and stop motions
• TFT digital display and on-touch control
• Variable speed control 10~300 rpm
• Timer range from 1 minute to 999 minutes
• Wide range of labware platforms available (platform and flask clamps shown in image not included with the purchase of the platform shaker)

Product Description

The WS-100D platform shaker offers considerable flexibility for labware shaking. The shaker offers both orbital and reciprocal shaking at speeds up to 300 rpm as well as clockwise and counter clockwise directions. A TFT digital display and on-touch control allows for easy instrument control and the WS-100D can be operated on the timer up to 999 minutes.

A number of platforms, plates, trays and other accessories are available so that the WS-100D can be used to shake an extensive range of labware.

Platforms, Plates, Trays and Other Accessories

The following accessories are available for the WS-100D:

Part Number	Description

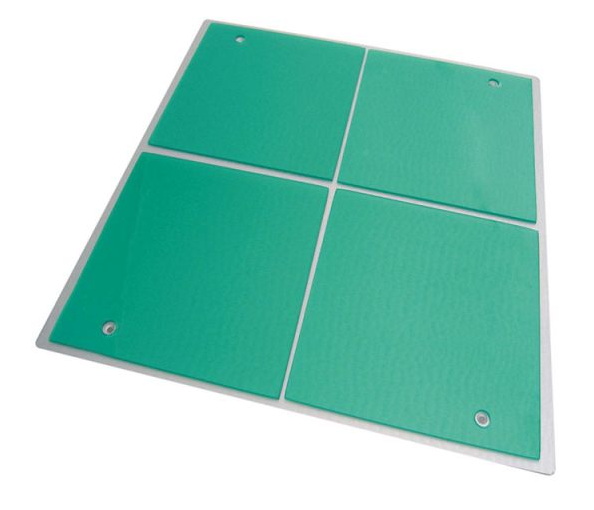

31901	Sticky plate for any labware with a smooth base or for microtitre plates | Dimensions: 350 mm x 350 mm

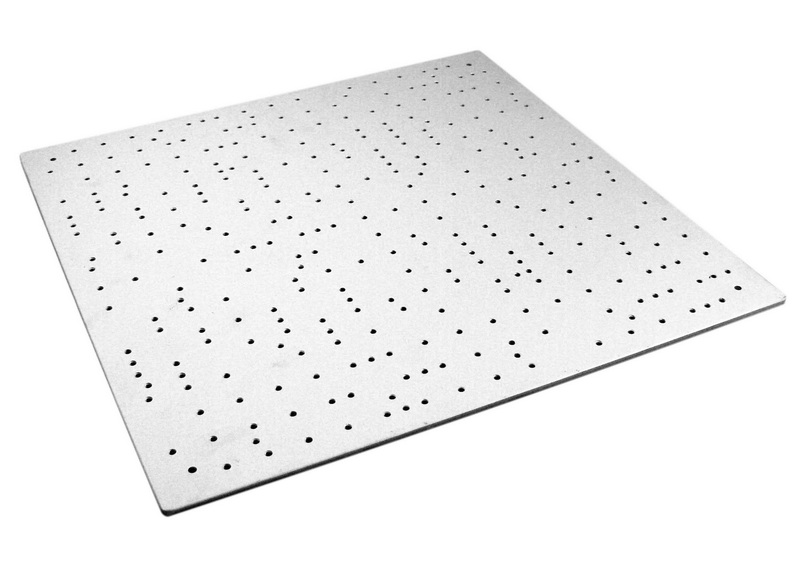

31501	Universal tray with a drilled grid for mounting Erlenmeyer flask holders. Please see below the ordering information for the different sizes of flask holders. Flask Size Maximum No. of Flask Holders 50 mL 32 100 mL 25 250 mL 13 300 mL 13 500 mL 9 1 L 4 2 L 2 4 L 2

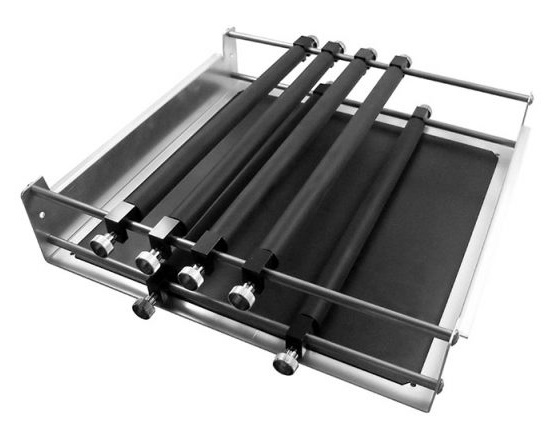

31511	Adjustable bar tray. Adjustable bars sold separately (Part Number 31511-05)

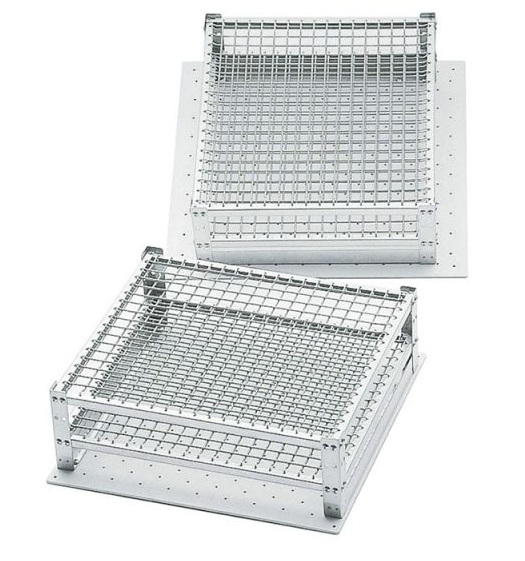

31521	Multi-purpose tray

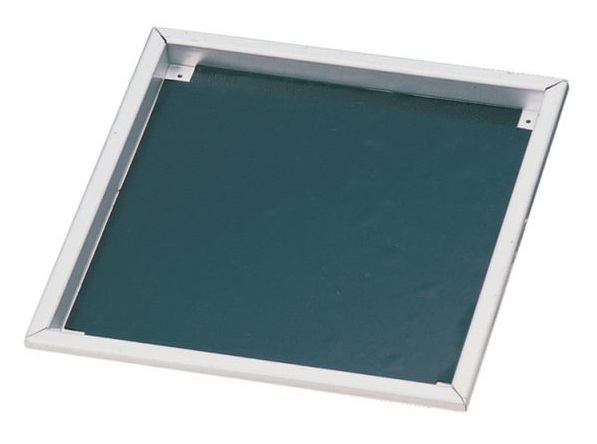

31531	Rubber mats allow quick addition or removal of flasks, plates or tubes.

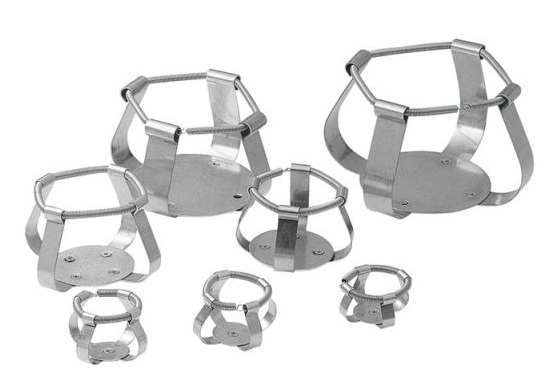

	Erlenmeyer flask holders Flask Size Part Number 25 mL 23549 50 mL 23550 100 mL 23551 250 mL 23552 300 mL 23556 500 mL 23553 1000 mL 23554 2000 mL 23555 3000 mL 23560 4000 mL 23558 5000 mL 23561 6000 mL 23559

Specifications

Display and control	TFT digital display | On-touch control
Motion type	Orbital or reciprocal motion (selectable)
Accuracy (rpm)	±1 at 100 rpm
Speed range (rpm)	10~300
Shaking action (mm)	30 as standard | 20 and 40 also available
Timer	Run time: 1 min to 999 min | Forward & backward, pause: 1 min to 999 min
Maximum load (Kg)	7
Power (W)	100
Platform dimensions (W x D)	350 mm x 350 mm
Instrument dimensions (W x D x H)	410 mm x 490 mm x 150 mm
Weight (Kg)	24
