PCR-1300 | UV PCR workstation for nucleic acid denaturation | 1300 mm width

Key Features

• LCD display
• Cold-rolled steel main body with anti-bacteria powder coating | 304 stainless steel work table
• Toughened anti-UV glass front and side windows
• Adjustable airflow velocity from 0.3 m/s - 0.5 m/s
• UV sterilization system emitting at 254 nm
• Pre-filter and HEPA filter with 99.999% efficiency at 0.3μm
• Two internal waterproof sockets to connect instrumentation
• Memory function in case of power-failure
• Interlock function: UV lamp can only be switched on when the front window is closed
• UV timer range from 0 - 90 minutes. Automatic cut off when time expires.

Product Description

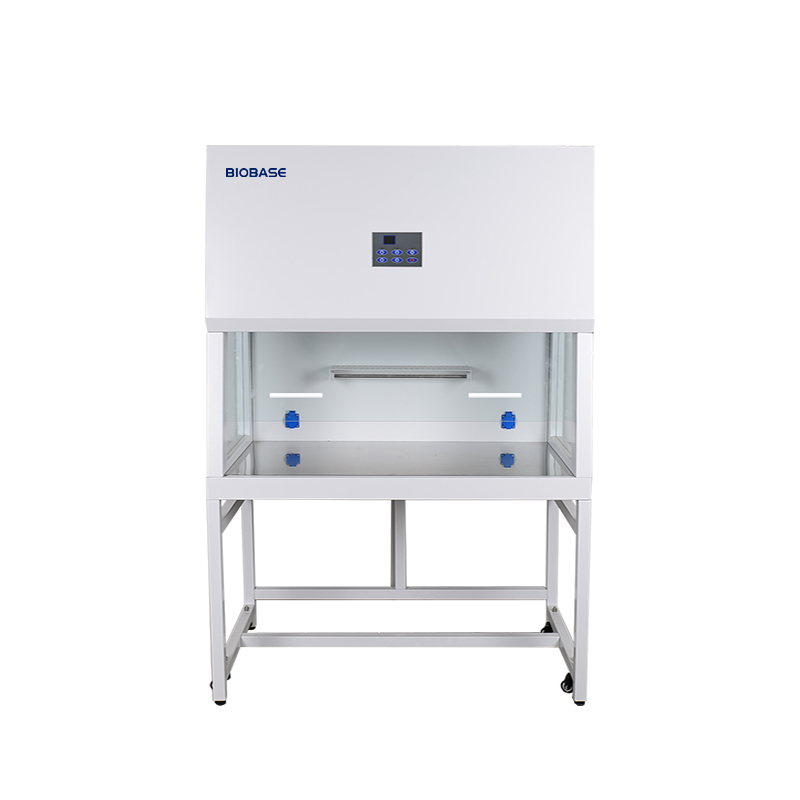

The PCR-1300 workstation is specifically designed to provide a sterile and nucleic acid-free environment for PCR reactions. It has an LCD display and a cold-rolled steel main body with an anti-bacteria powder coating. Toughened anti-UV glass front and side windows protect the operator from harmful UV exposure and an interlock function only allows the UV lamp to be switched on when the front window is closed.

The PCR-1300's UV sterilization system emits at 254 nm and is controlled by a UV timer with a range from 0 - 90 minutes with an automatic cut off when the time expires. It has an adjustable airflow velocity from 0.3 m/s - 0.5 m/s and a pre-filter and HEPA filter with 99.999% efficiency at 0.3μm.

Incorporated into the PCR-1300 is an external shelf and two internal waterproof sockets to connect instrumentation such as vortexers. It also features a memory function in case of power-failure.

Standard accessories include UV lamp, a fluorescent lamp, a base stand, two waterproof sockets and an internal shelf. An optional electric height-adjustable base stand is also available.

Specifications

Manufacturer	Biobase
Model number	PCR-1300
External size (W x D x H)	1300 mm x 700 mm x 1770 mm
Internal size (W x D x H)	1200 mm x 595 mm x 550 mm
Work surface height	750 mm
Construction	Main body: Cold-rolled steel with anti-bacteria powder coating Work table: 304 stainless steel
Front and side windows	5 mm toughened glass | anti-UV | motorised front window
Maximum opening	300 mm
Pre-filter	Polyester fiber, washable
Filter	HEPA | 99.995% efficiency at 0.3μm
Airflow velocity	0.3 m/s ~ 0.5 m/s | speed adjustable
Noise	≤65 dB
UV lamp	30W x 1 | 254 nm emission | with timer (0 - 90 minutes)
LED lamp	12W x 2
Illumination	≥350 lux
Internal shelf (W x D x H)	Stainless steel | 502 mm x 150 mm x 50 mm
Casters	Universal casters with leveling feet
Power	600W
Waterproof sockets	Two | total load ≤500W
Electrical requirements	220VAC ±10% : 50/60Hz
Standard accessories	UV lamp | fluorescent lamp | base stand | waterproof socket x 2 | internal shelf
Optional accessories	Electric height adjustable base stand
Gross weight	231 Kg
