167610 | Oil-free piston vacuum pump | maximum vacuum 30 mbar | maximum flow rate 40 L/min (V610)








Key Features

  • Compact and lightweight with handle for convenient transportation
  • Maintenance-free
  • Oil-free design reduces environmental impact
  • Moisture trap and particle filter on air intake to protect motor
  • Low noise and vibration
  • Manual vacuum regulator and gauge for vacuum monitoring
  • Overheating protection device shuts off pump automatically
  • Large range of accessories (please see below)

Description

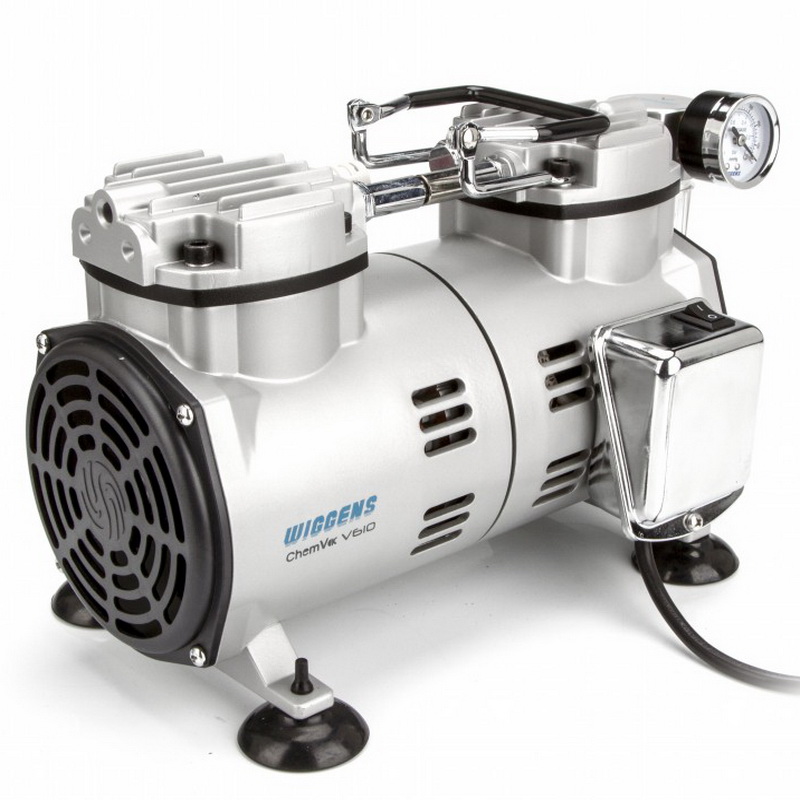

The V610 from Wiggens is a compact, lightweight and mobile oil-free piston vacuum pump. It features manual vacuum control and a gauge for vacuum monitoring. The pump is maintenance-free and its oil-free design reduces its environmental impact. Incorporated into the unit are a moisture trap and a particle filter on the air intake to protect the motor.

Included with the purchase of the pump is a vacuum regulator/filter system that comprises a vacuum gauge, filter, filter cartridge, bottom water drain valve and vacuum regulation valve to allow for vacuum monitoring and control.

The pump can achieve flow rates of up to 40 L/min (2.4 m³/hour) and a maximum vacuum of 30 mbar.

Optional Accessories

Part Number
Description
167200-41
Foot pedal
167600-42
Silencer
167300-20
Connector | Outlet diameter: 9.5 mm
167300-21
Connector | Outlet diameter: 8 mm
167300-26
Connector | Outlet diameter: 6.4 mm
167300-23
Connector | Outlet diameter: 4.8 mm
167300-24
Connector | Outlet diameter: 3.2 mm
167300-25
L-shape connector | Outlet diameter: 8 mm
168100-12
Quick connection outlet | Outlet diameter: 12 mm
168100-10
Quick connection outlet | Outlet diameter: 10 mm
168100-8
Quick connection outlet | Outlet diameter: 8 mm
168100-6
Quick connection outlet | Outlet diameter: 6 mm
168100-4
Quick connection outlet | Outlet diameter: 4 mm
168020-01
Silicon tubing | Outer diameter: 12 mm, Inner diameter: 6 mm, Thickness: 3 mm, Length: 1 m
168021-01
Silicon tubing | Outer diameter: 14 mm, Inner diameter: 8 mm, Thickness: 3 mm, Length: 1 m
168022-01
Silicon tubing | Outer diameter: 16 mm, Inner diameter: 10 mm, Thickness: 3 mm, Length: 1 m

Specifications

Manufacturer
Wiggens
Model number
V610
Maximum vacuum (mbar)
30
Maximum flow rate (m³/hour) at atmospheric pressure
2.4
Maximum flow rate (L/min) at atmospheric pressure
40
Hose connection (ID)
9 mm
Motor speed (rpm)
1450
Dimensions (mm)
340 x 155 x 195
Weight (Kg)
8.6
Noise level (dB)
52
Power (W)210
Current (A)1
Electrical requirements
220 V: 50 Hz
