Nabi | Nabi UV/Vis nano spectrophotometer with 200 nm - 1100 nm wavelength range for nucleic acid and protein quantification

Key Features

• Compact and lightweight
• Simple operation with minimized steps for measurements and analysis
• 18 mm touch LCD display
• Rapid startup with no lamp warm-up time
• Stand-alone operation with no PC requirements
• High speed spectrum reading (5 sec.)  and accurate detection (<± 0.002)
• Wide range of wavelength detection with cuvette
• Nano volume sample measurement of nucleic acids and proteins
• High repeatability in quantitative measurement for nucleic acids and proteins
• Single wavelength | spectrum selection
• End point | kinetic mode selection
• Simple Data Backup and Software
• Upgrade via USB Flash Drive

Product Description

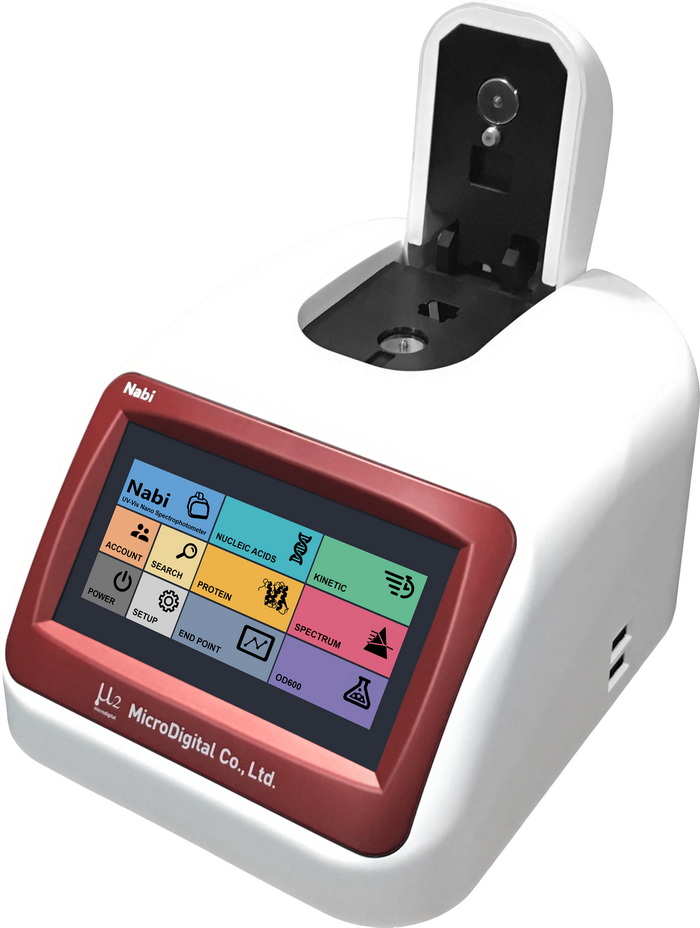

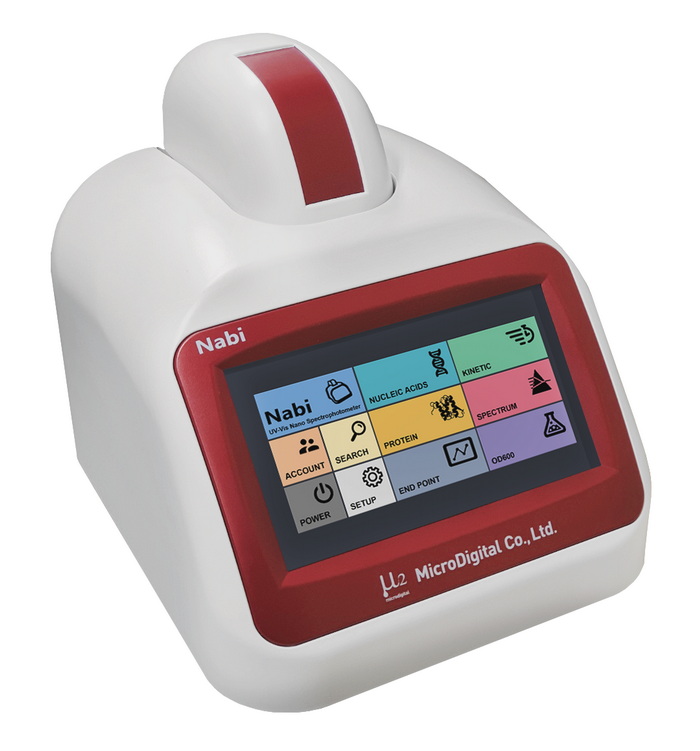

The Nabi is a compact stand-alone spectrophotometer that features an 18 mm touch screen display through which the instrument is controlled and data is recorded and analysed. It features rapid startup with no lamp warm-up time and can be operated in micro-volume or cuvette mode. It has a 5 second reading time in nano mode and a 1 µL minimum sample volume.

The Nabi has a spectral range from 200 nm - 1100 nm and is ideal for the highly accurate and repeatable quantitative measurement for nucleic acids and proteins. It has a a spectral resolution of 0.3 nm and a wavelength accuracy of ±1 nm. The Nabi has a detection limit of 2 ng/µL (dsDNA) and a maximum concentration of 20,000 ng/µL (dsDNA) | 200 mg/mL (BSA) in nano mode.

More Information

Please click here to download a brochure describing the Nabi UV/Vis nano spectrophotometer.

Specifications

General Specifications
Light Source	Xenon flash lamp
Detector	CCD (2048 pixels)
Display	18 cm LCD touch panel
Wavelength accuracy	±1 nm
Wavelength range	200 nm - 1100 nm
Spectral resolution	0.3 nm
Dimensions	220 mm x 280 mm x 220 mm
Weight	5 Kg
Electrical requirements	100 VAC - 240 VAC |50 Hz - 60 Hz
Power consumption	80 W - 100 W
Warranty	One year on parts and labour
Nano Volume Specifications
Absorbance precision	1% at 100 ng/µL
Absorbance range	0 - 400 Abs (10 mm equivalent)
Detection limit	2 ng/µL (dsDNA)
Maximum concentration	20,000 ng/µL (dsDNA) | 200 mg/ml (BSA)
Measurement time	5 sec.
Minimal sample size	1 µL
Path length	0.05 mm - 1.2 mm (auto-ranging)
Cuvette Specifications
Beam height	8.5 mm
Absorbance range	0.002 - 2.0 Abs
Measurement time	3 sec.
