BS-010117-AAK | Programmable multi-function tube rotator (Multi Bio RS-24)

Key Features

• Includes functionality for vertical rotation, reciprocal rotation and vibration (vortexing)
• Programmable
• Operating range from +4°C to +40°C: suitable for cold rooms and incubators
• LED display and touch panel
• Variable speeds for vertical and reciprocal rotation
• Adjustable reciprocal rotation angle
• Timer function with sound signal
• Range of platforms available for different tube sizes and volumes (please see below)

Description

The Multi Bio RS-24 is a highly flexible and programmable rotator that offers capability for vertical rotation, reciprocal rotation and vibration (vortexing) of tubes up to 50 mL in volume.

The operating range for the Multi Bio RS-24 is from +4°C to +40°C which makes it suitable for cold rooms and incubators and the low voltage external power supply (12 VDC) provides electrical safety in humid environments.

Variable speeds for vertical and reciprocal rotation and timers on all three functionalities provides the ability to use the Multi Bio RS-24 for multiple laboratory applications. All instrument functions are monitored and controlled through an LED display and touch panel.

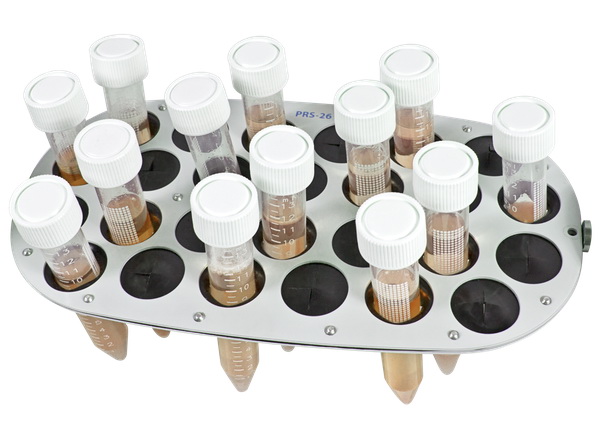

A number of interchangeable platforms are available that allow sample mixing in a wide range of tube sizes and volumes. The PRS platforms are equipped with rubber clamps and the PRSC platforms are fitted with metal clamps for holding heavier samples. The PRS-26 platform (shown below) is included with the purchase of the Multi Bio RS-24.

Optional Tube Platforms

Part Number	Description
BS-010117-GK	Holds up to 26 tubes of 10 mm - 16 mm diameter (1.5 mL - 15 mL | PRS-26)
BS-010117-HK	Can hold up to 5 tubes of 20 mm - 30 mm diameter (50 mL tubes) and up to 12 tubes of 10 mm - 16 mm diameter (1.5 mL - 15 mL | PRS-5/12)
BS-010117-IK	Holds up to 10 tubes of 20 mm - 30 mm diameter (up to 50 mL tubes | PRS-10)
BS-010117-LK	Can hold up to 22 tubes of 16 mm diameter (15 mL | PRSC-22)
BS-010117-JK	Holds up to 10 tubes of 25 mm - 30 mm diameter (50 mL tubes | PRSC-10)
BS-010117-PK	Roller platform for up to 8 tubes of 25 mm - 30 mm diameter (50 mL tubes). Ideal for hybridisation reactions (M-8/50)
BS-010149-DK	Platform for microplates and racks for tall tubes 0.5 and 1 ml (e.g. Thermo 3741MTX, 3742MTX, 3744MTX | PRS-1DP)

Specifications

Manufacturer	Biosan
Model number	Multi Bio RS-24
Digital time setting	1 minute - 24 hours in 1 minute increments or continuous
Operating range	+4°C to +40°C
Vertical rotation speed range	1 - 100 rpm in 1 rpm increments
Vertical rotation movement	Overhead, 360°
Vertical rotation time range	0 - 250 seconds
Reciprocal rotation speed range	1 - 100 rpm in 1 rpm increments
Reciprocal rotation tilt angle range	1° - 90° in 1° increments
Reciprocal rotation time range	0 - 250 seconds
Vibro rotation tilt angle range	0° - 5° in 1° increments
Vibro rotation pause/ vibro time setting range	0 - 5 seconds
Maximum load	500 grams
Overall dimensions (W x D x H)	365 mm x 195 mm x 155 mm
Weight	1.7 Kg
Input current/power consumption	12 V, 660 mA / 8 W
External power supply	Input: AC 100 - 240 VAC: 50/60 Hz | Output 12 VDC
