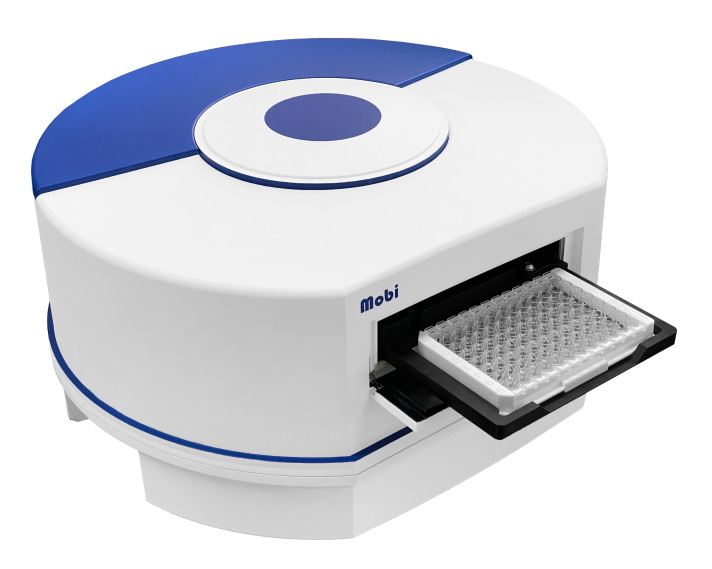

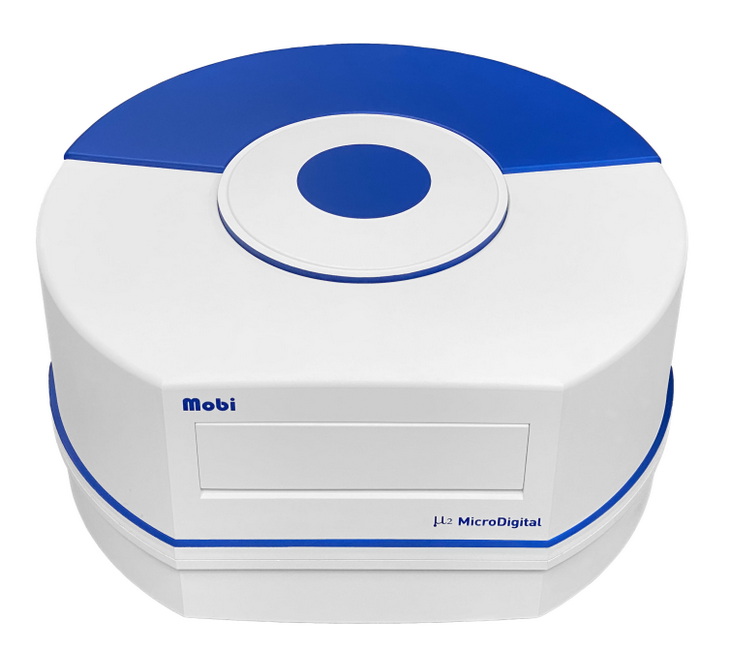

Mobi | UV/Vis scanning spectrophotometer for 6- to 384-well microplates | Scanning range from 200 nm - 999 nm

Key Features

• Monochromator with selectable wavelengths in 1 nm increments from 200 nm to 999 nm
• Compact and portable
• Compatible with microplates ranging from 6 to 384 wells
• Supports end-point, kinetic, spectral scanning, and well-area scanning measurements
• Integrated detector and electronics ensure low-noise measurements
• Equipped with a Xenon flash lamp to extend operating time
• 2 μL and 16 μL microvolume plate options available for nucleic acid quantification (please see below)
• Optional incubation and shaking features

Product Description

The MOBI UV/VIS scanning spectrophotometer measures light absorbance during biochemical reactions to allow for accurate concentration analysis of samples using microplates. Key applications include:

• Nucleic acid quantification
• Protein quantification
• Purity measurements (260/280 and 260/230 ratios)
• ELISA
• Enzyme kinetics
• Cell proliferation
• Microvolume analysis

The Mobi is compatible with microplates ranging from 6 to 384 wells and its monochromator (with 5nm bandwidth) features selectable wavelengths from 200 nm to 999 nm in 1 nm increments. The Mobi can be used for end-point, kinetic, spectral scanning, and well-area scanning measurements.

The Mobi uses a xenon flash lamp light source and a photodiode detector and the integrated detector and electronics ensure low-noise levels during measurements.

Key Software Features

• Separated sequence protocols. Layouts allow the user interface to achieve great flexibility and simplicity in setting, editing, and executing measurements
• Graphical presentation of data allows users to analyze the results with convenience and efficiency
• Measurement data can be exported as simple charts or full report in Excel spreadsheets, PDFs, or other formats.

Optional Accessories

Options for the Mobi include temperature control and shaking. Two microvolume plates are also available.

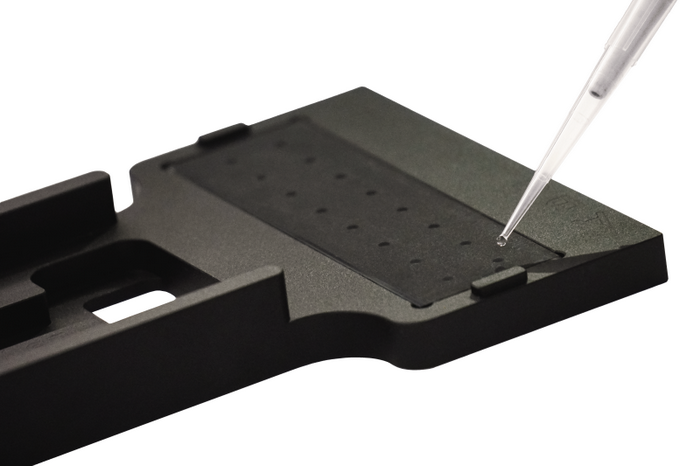

2 µL microvolume microplate for nucleic acid quantification

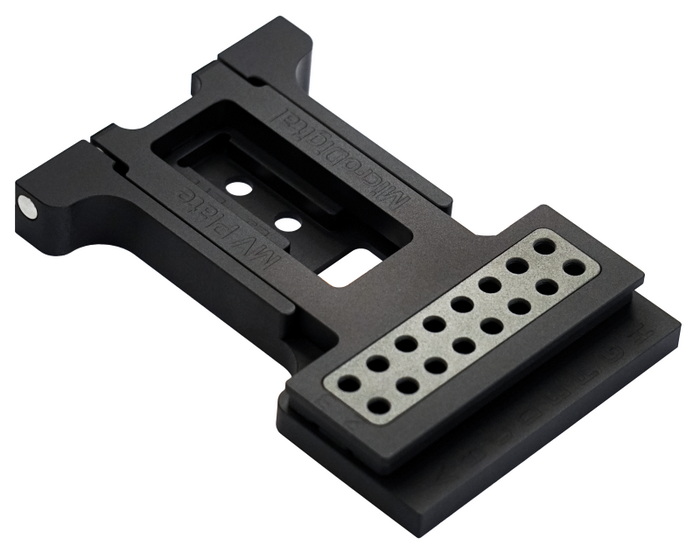

16µL microvolume microplate for nucleic acid quantification

More Information

Please click here to download a brochure describing the Mobi UV/Vis scanning spectrophotometer for 6- to 384-well microplates.

Specifications

Detection modes	Absorbance
Reading methods	Supports end-point, kinetic, spectral scanning, and well-area scanning measurements
Microplate types	6- to 384-well microplates
Light source	Xenon Flash Lamp
Detector	Photodiode
Wavelength selection	Monochromator
Wavelength range	200 nm - 999 nm (1 nm increments)
Monochromator bandwidth	5 nm
Dynamic range	0 - 4.0 OD
Resolution	0.0001 OD
Wavelength accuracy	±1.0 nm
Wavelength repeatability	±0.1 nm
Pathlength correction	Available
OD accuracy	±1% at 2.0 OD: 3% at 3.0 OD
OD repeatability	±1% at 2.0 OD
OD linearity	±1% from 0 to 3.0 OD
Incubator (Optional)	Temperature control and shaking
Microvolume plate (Optional)	2 µL and 16 µL well volumes | 16 wells
Power	100 - 240 VAC: 50/60 Hz
Dimensions	396 nm x 364 nm x 207 nm
Weight	9 Kg
