LG-2020 | L200Pro microplate heat sealer for 96-well, PCR, and deep well plates

Key Features

• Heating temperature range from 125°C - 200°C (adjustable in 1°C increments)
• Timer range from 1 - 9 seconds (adjustable in 0.1 second increments)
• Uniform heating plate pressure ensures consistent sealing
• One-step sealing process leaves no residue
• Colour touch screen interface for intuitive operation
• Offers excellent stability and reliability with simple operation and low maintenance
• Features overvoltage detection and protection
• Provides real-time feedback during abnormal pressure conditions
• Offers dual alerts via visual indicators (LED status lights) and an integrated audible alarm (buzzer)

Description

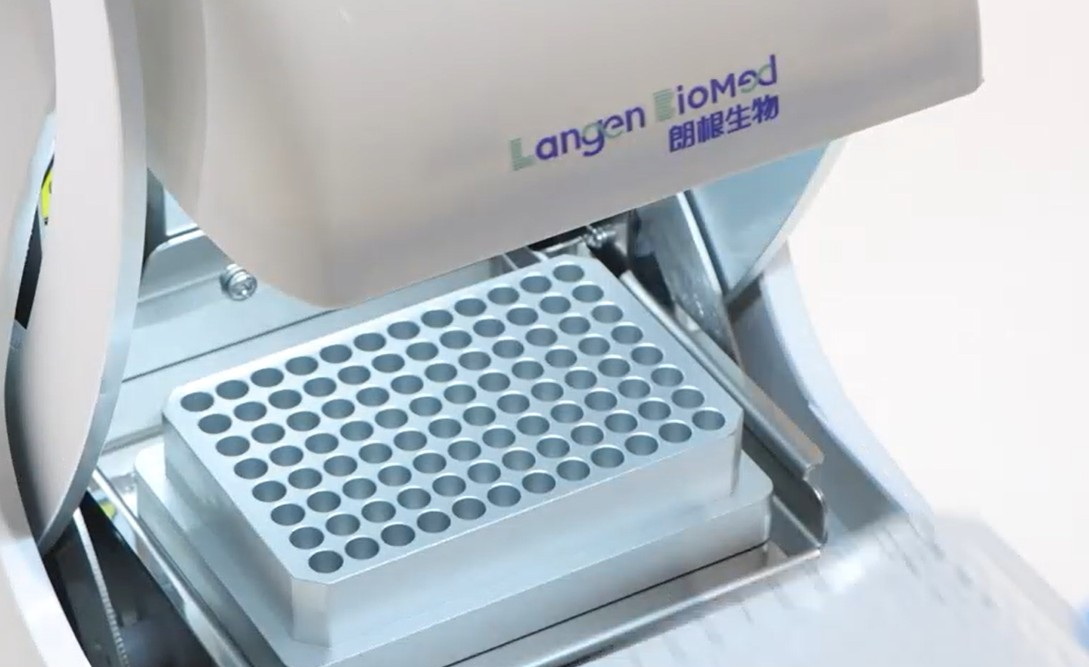

The Langen BioMed® microplate heat sealer is specifically designed for laboratories and the IVD industry. It utilizes precise heat-sealing technology to achieve efficient sealing of microplates to prevent sample evaporation and cross-contamination while ensuring sample integrity during storage and transportation. It is ideal for a variety of applications such as PCR/qPCR, compound storage, and low-temperature transport.

The L200Pro uses a colour touch screen interface for intuitive operation and features a heating range from 125°C - 200°C (adjustable in 1°C increments) and a timer range from 1 - 9 seconds (adjustable in 0.1 second increments). The sealer offers excellent stability and reliability with simple operation and low maintenance. The one-step sealing process leaves no residue and the uniform heating plate pressure ensures consistent sealing.

Safety features include overvoltage detection and protection, and real-time feedback during abnormal pressure conditions. Integrated into the L200Pro are dual alerts via visual indicators (LED status lights) and an integrated audible alarm (buzzer).

The L200Pro is compatible with internationally standard consumables and complies with CE/UKCA/FCC certification requirements.

Ordering Information

Plate Adapters

The following plate adapters (sold separately) are available for the L200Pro:

Product Code	Description

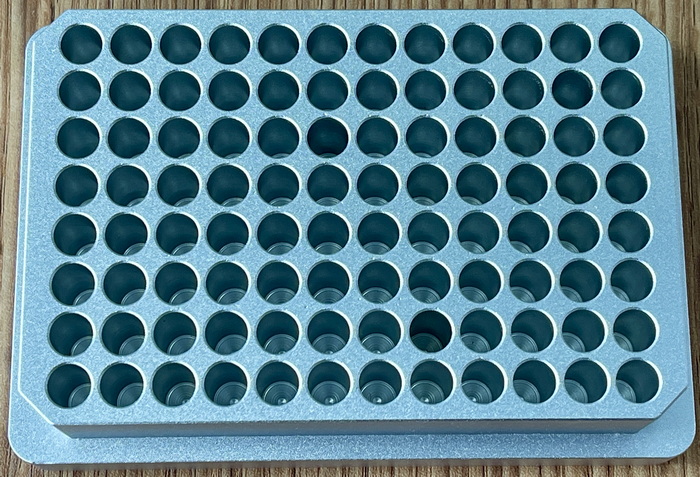

LG-2011	96-well PCR plate adapter | Suitable for 96-well skirted PCR plates and 96-well non-skirted PCR plates

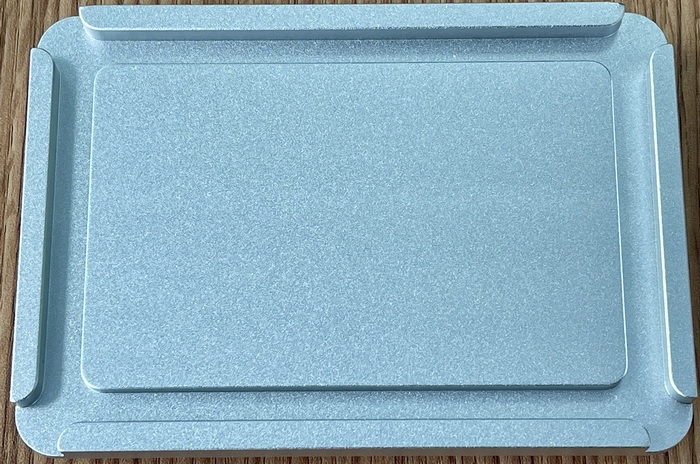

LG-2012	96/384-well plate adapter | Suitable for 96-well ELISA plates, 384-well microplates, and cell culture plates.

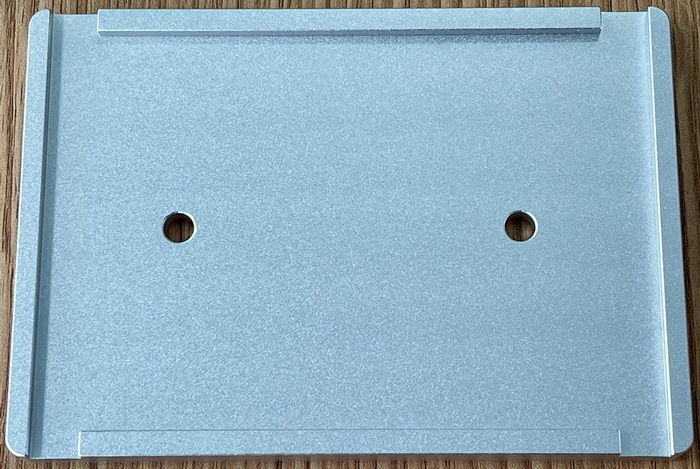

LG-2013	Deep-well plate adapter | Suitable for deep-well plates

Heat Seals

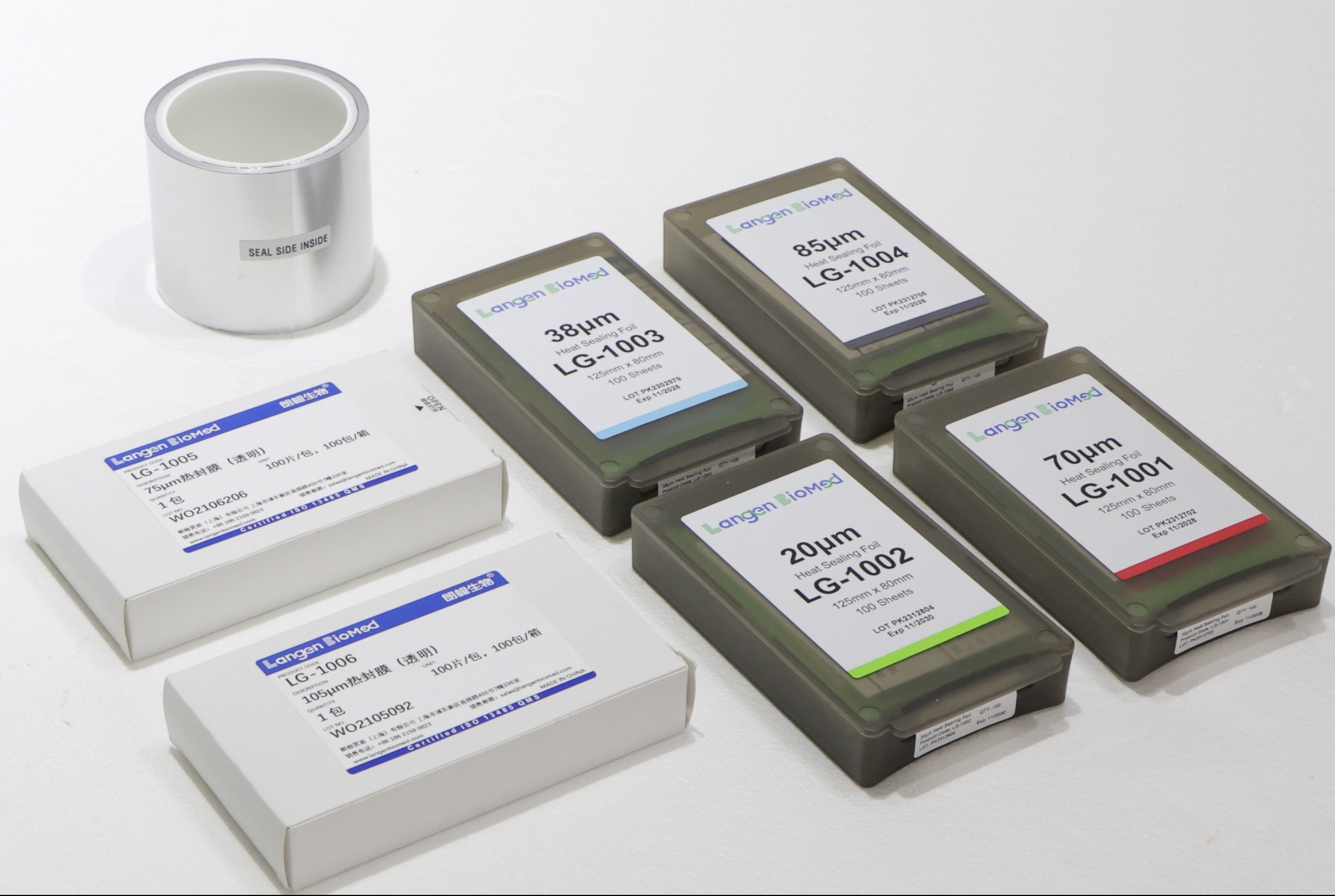

A wide range of sealing foils and films are compatible with the L200Pro. Please download the L200Pro brochure below for complete details on our range of foils and seals.

Product Code	Description
LG-1001	70 µm Red Heat Sealing Foil, pack of 100 sheets
LG-1002	20 µm Red Heat Sealing Foil, pack of 100 sheets
LG-1003	38 µm Red Heat Sealing Foil, pack of 100 sheets
LG-1004	85 µm Red Heat Sealing Foil, pack of 100 sheets
LG-1005	75 µm Optical Clear Heat Sealing Film, pack of 100 sheets
LG-1006	105 µm Optical Clear Heat Sealing Film, pack of 100 sheets

More Information

Please click here to download a brochure describing the L200Pro microplate sealer for PCR plates, standard SBS microplates, and deep well plates. Please click here to view a video of the L200Pro in operation or here to watch a video of the compatible sealing foils and films for this instrument.

Specifications

Manufacturer	Langen BioMed
Model number	LG-2020
Sealing temperature range	125°C - 200°C (1°C increments)
Sealing time	1 - 9 seconds (0.1 second increments)
Heating rate	<10 minutes (from ambient to 170°C)
Display	127 mm TFT-LCD display
Voltage frequency	220 VAC - 240 VAC | 50-60 Hz ±5%
Fuse rating and size	240 VAC: T1.6AH | 250 VAC | 20 mm x 5 mm
Power consumption	350 W
Storage/transport conditions	-10°C - +50°C | 20% - 80% non-condensing
Operating Environment	Temperature: +18°C - +30°C Humidity: 20% - 80% non-condensing Altitude: 2200 m
Compatible adapters (sold separately)	96-well PCR plate | 96-well microplate/ 384-well PCR plate | deep-well plate
Certification	CE/UKCA/FCC
Dimensions (W x D x H)	223 mm x 355 mm x 393 mm
Weight	8.2 Kg
