MBE-200BW | Dual LED blue/white light transilluminator for gel imaging and band cutting | 470 nm blue light | 153 mm x 153 mm sample viewing area








Key Features

  • Blue light and white light sources integrated into the same illuminator
  • Lightweight and portable
  • 470 nm safe blue light replaces harmful UV
  • Ultra high-light uniformity
  • Automatic shutdown
  • Low heat dispersion
  • 580 nm amber filter and paper hood included with the purchase of the transilluminator

Product Description

The newly released dual LED blue/LED white light transilluminator integrates safe 470 nm blue LED light on one side with whole spectrum white LED light on the other. It's ideal for imaging nucleic acids and proteins and for band cutting.

The 153 mm x 153 sample viewing area allows small- or midi-sized gels to be placed on the transilluminator. The unit is lightweight and portable, and features ultra high-light uniformity, and an automatic shut-off after ~ 6 minutes. It also incorporates a dynamic sensor which turns off one transilluminator when the unit is turned to the other side.

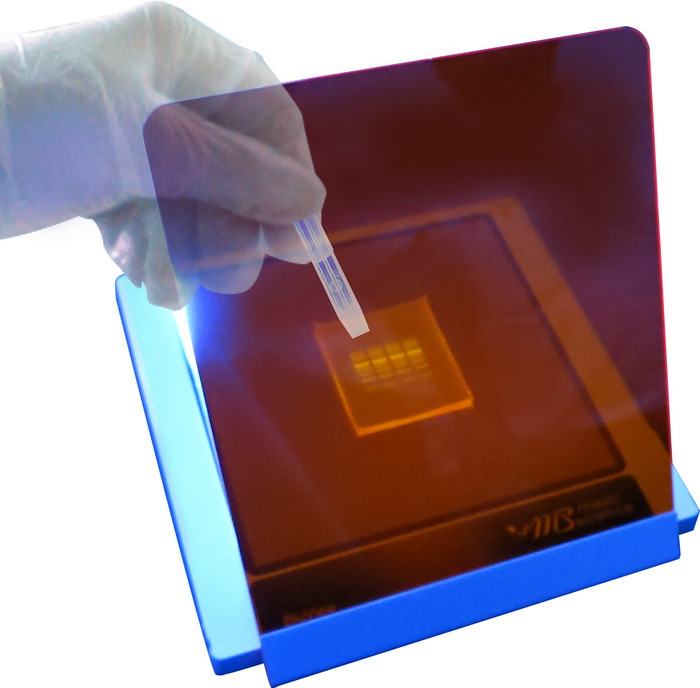

A 580 nm amber filter and paper hood are included with the purchase of the transilluminator.

Specifications

ManufacturerMajor Science
Model numberMBE-200BW
Dimensions200 mm x 200 mm x 15.6 mm
Viewing area153 mm x 153 mm
Illuminator base designFlat bed
Blue light wavelength470 nm
White light wavelengthFull spectrum
Automatic shut down~ 6 mins.
MaterialAluminium alloy
Power12VDC : 2 A
Weight935 grams
Accessories included580 nm amber filter and paper hood
