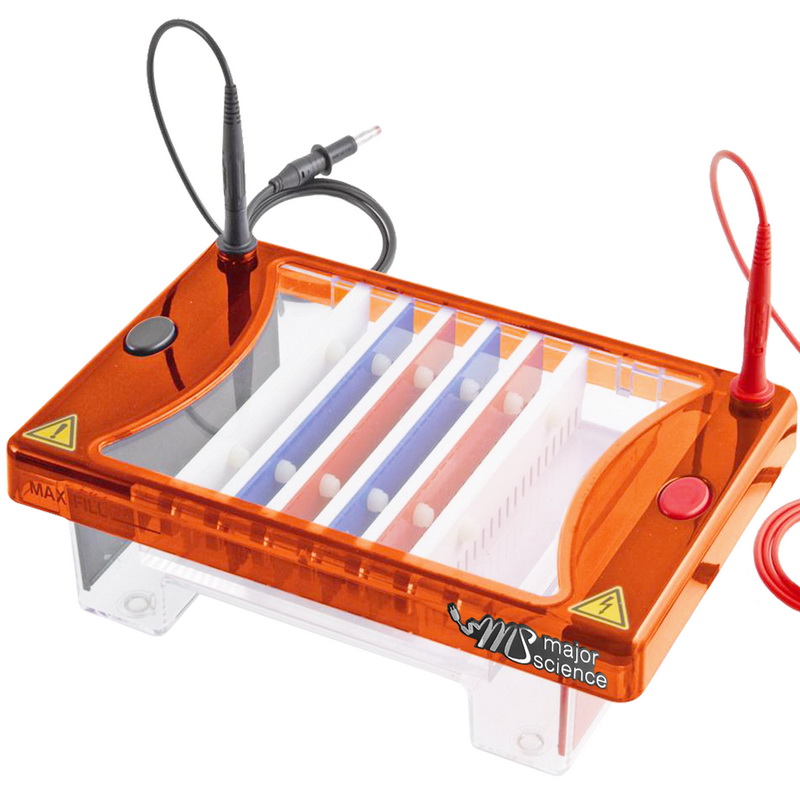

ME15-7-10-15 | Horizontal gel electrophoresis system for up to 210 samples

Key Features

  • Low buffer consumption
  • Injection-moulded tank
  • Three different tray sizes
  • Easy sample loading
  • Multi-channel pipette compatible
  • Indicators to assist gel making and running
  • No tape, clamps or springs needed


The Major Science ME15-7-15 is ideal for routine horizontal gel electrophoresis. The  gel tank features injection-moulded construction for a durable, safe and leak-proof environment.  The ME15-7-10-15 includes 150 mm x 70 mm, 150 mm x 100 mm and 150 mm x 150 mm gel trays for processing up to 210 samples. A wide range of combs are available to maximize sample size.

More Information

The ME15-7-10-15 is sold as a complete system for the end-user to cast gels and run electrophoresis. The system includes:

  • 1 x Electrophoresis tank & lid
  • 1 x ME15-UV7 | 150 mm x 70 mm UV tray
  • 1 x ME15-UV10 | 150 mm x 100 mm UV tray
  • 1 x ME15-UV10 | 150 mm x 150 mm UV tray
  • 2 x ME15-16-1 | 20 sample combs, 1mm thick
  • 1 x ME15-UVDAM | UV tray dams, 2 pcs
  • 1 x ME15-LG | set of loading guides
  • 1 x Black & red electrophoresis cable


Major Science
Catalog numberME15-7-10-15
Dimensions (W x D x H)265 mm x 175 mm x 90 mm
Gel dimensions (W x D)150 mm x 70 mm | 150 mm x 100 mm | 150 mm x 150 mm
Maximum number of samples70 with 150 mm x 70 mm tray (2 x 35 sample combs) | 140 with 150 mm x 100 mm tray (4 x 35 sample combs) | 210 with 150 mm x 150 mm tray (6 x 35 sample combs)
Buffer volume500 mL
ConstructionInjection-moulded tank
ElectrodesCassette type: 99.99% corrosion-resistant platinum
SafetyTank lid can only be fastened in one way on tank. Power disconnects from buffer chamber when lid removed.
