BYKG-X | Negative pressure hood with LED display for compound preparation (BYKG-X) | 360L internal capacity

Key Features

• Negative pressure environment in work area to protect operator and samples
• Cold-rolled steel construction with anti-bacteria powder coating
• 360L internal capacity
• LED display
• Active carbon pre-filter and HEPA filter
• Acrylic front window (manual opening and closing): 660 mm opening
• Airflow velocity range from 0.3 m/s - 0.8 m/s

Product Description

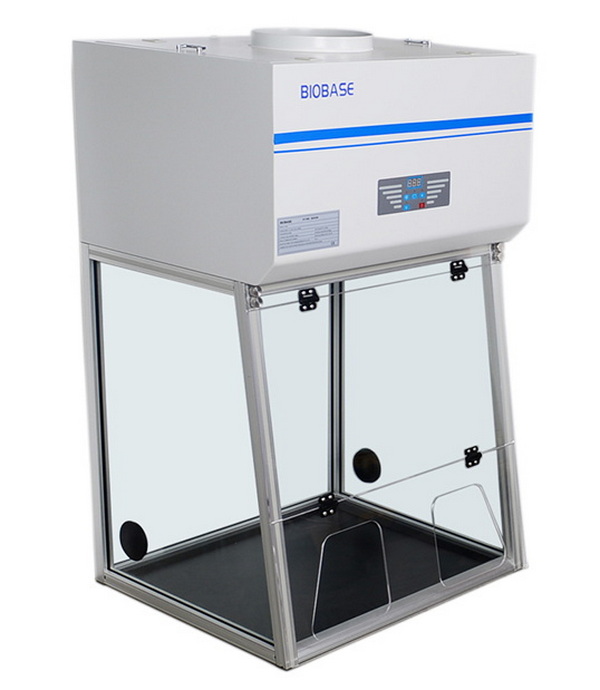

The BYKG-X is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and the samples from contamination. It is constructed from cold-rolled steel with an anti-bacteria powder coating and has an internal capacity of 360L. It has an LED display to control the airflow velocity from 0.3 m/s - 0.8 m/s.

Excellent visualisation of the working area of the BYKG-X is through a manually operated acrylic front window. Air filtration is achieved by an active carbon pre-filter and HEPA filter.

Specifications

Manufacturer	Biobase
Model number	BYKG-X
External size (W x D x H)	1000 mm x 620 mm x 1150 mm
Internal size (W x D x H)	940 mm x 550 mm x 700 mm
Internal capacity	360L
Display	LED
Airflow velocity	≥ 0.3 m/s - 0.8 m/s
Construction material	Main body | Cold-rolled steel with anti-bacteria powder coating Work table | Solid physicochemical steel base
Pre-filter	Active carbon filter
Filter	HEPA filter
Noise	≤ 60 dB
Front window	Acrylic | Manual opening and closing
Maximum opening	660 mm
LED lamp	1 x 12W
UV lamp	1 x 15W | Emission: 253.7 nm
Power consumption	200W
Electrical requirements	220 VAC±10% | 50/60Hz
Standard accessories	Active carbon filter | HEPA filter | LED lamp | 4 m PVC exhaust duct (250 mm)
Optional accessories	Base stand | UV lamp x 2
Gross weight	145 Kg
