BYKG-VII | Negative pressure hood with LED display for compound preparation (BYKG-VII) | 60L internal capacity

Key Features

• Negative pressure environment in work area to protect operator and samples
• Cold-rolled steel construction with anti-bacteria powder coating
• 60L internal capacity
• LED display
• Active carbon pre-filter and HEPA main filter
• Glass front window (manual opening and closing): 300 mm opening | toughened glass | UV-resistant
• Airflow velocity range of ≥0.5 m/s

Product Description

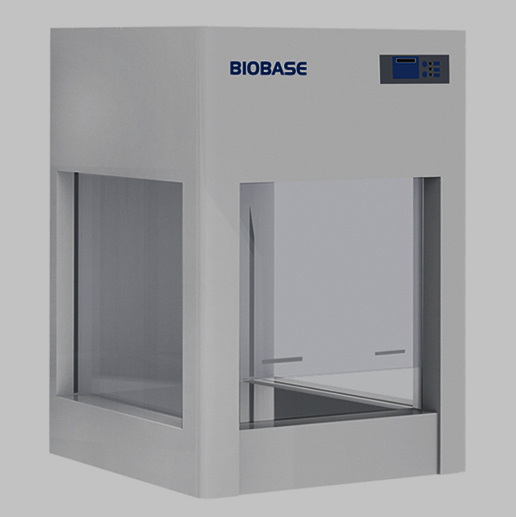

The BYKG-VII is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and the samples from contamination. It is constructed from cold-rolled steel with an anti-bacteria powder coating and a 60L internal capacity. It has an LED display to control the airflow velocity at ≥0.5 m/s.

Excellent visualisation of the working area of the BYKG-VII is through a manually operated glass front window made of toughened glass that is UV-resistant to protect the operator. Air filtration is achieved by an active carbon pre-filter and a HEPA main filter.

Specifications

Manufacturer	Biobase
Model number	BYKG-VII
External size (W x D x H)	550 mm x 460 mm x 700 mm
Internal size (W x D x H)	480 mm x 340 mm x 370 mm
Internal capacity	60L
Display	LED
Airflow velocity	≥ 0.5 m/s
Construction material	Main body | Cold-rolled steel with anti-bacteria powder coating Work table | 304 stainless steel
Pre-filter	Active carbon filter
Filter	HEPA filter
Noise	≤ 60 dB
Front window	Manual opening and closing | toughened glass | UV-resistant
Maximum opening	300 mm
LED lamp	1 x 4W
UV lamp	1 x 8W | Emission: 253.7 nm
Power consumption	100W
Electrical requirements	220 VAC±10% | 50/60Hz
Standard accessories	Active carbon filter | LED lamp | HEPA filter | UV lamp x 2
Optional accessories	None
Gross weight	57 Kg
