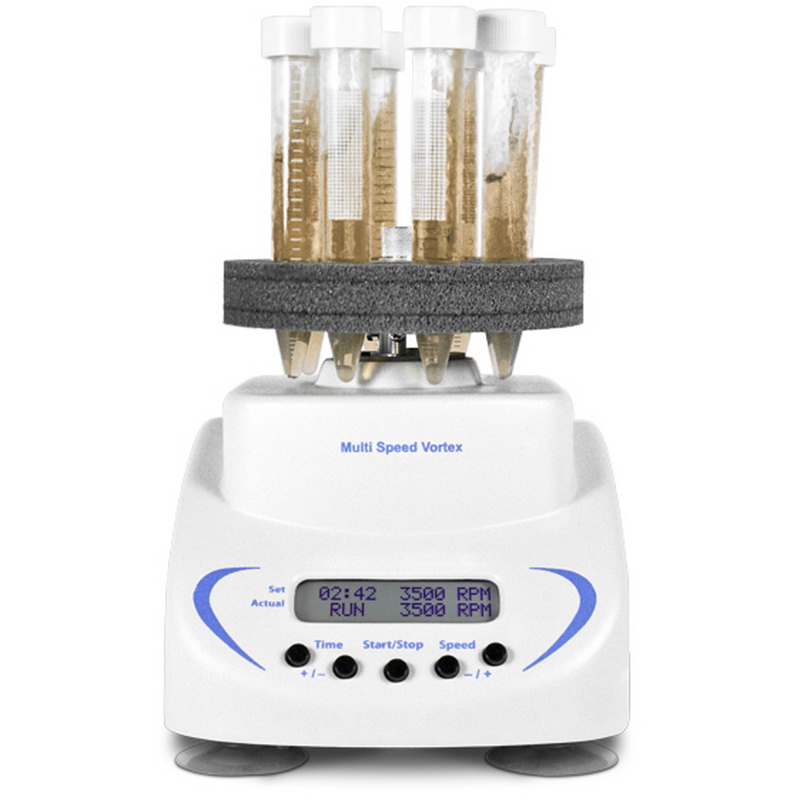

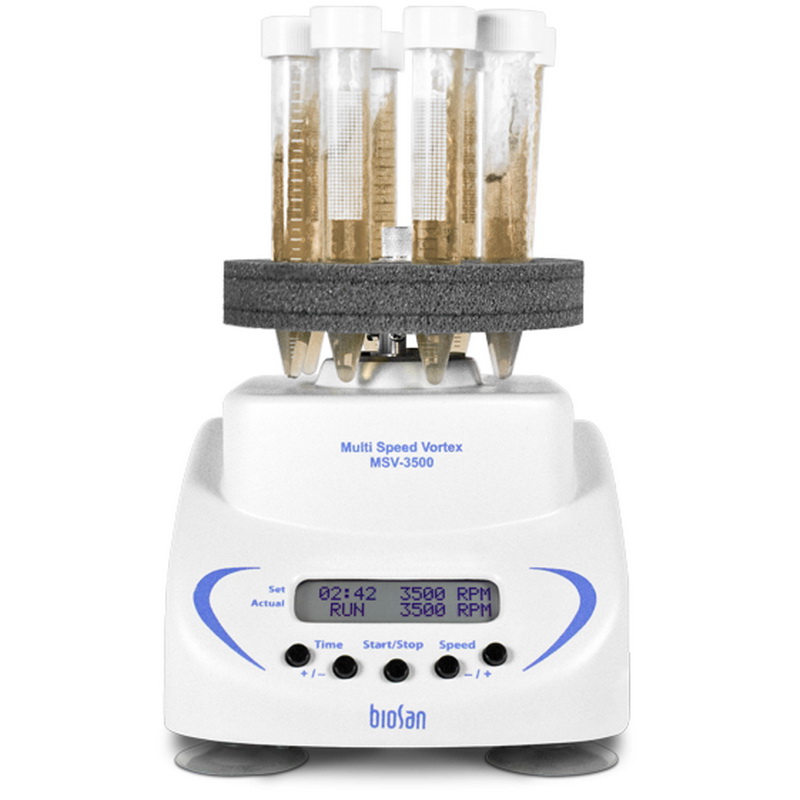

BS-010210-AAK | High speed microtube and tube vortexer (MSV-3500)

Key Features

• Ideal for vortexing tubes from 0.2 mL to 50  mL volume and less than 5 uL of sample
• Speed control range from 300 - 3500 (maximum speed depends on load)
• Timer range from 0 - 60 minutes or continuous for up to 8 hours
• 4 mm orbit
• Range of platforms available

Description

The MSV-3500 high speed microtube and tube vortexer can be used for a variety of mixing applications including chemicals, suspensions of cells or microorganisms and for DNA/RNA preparations. A range of tube holders are available for 0.2 mL, 0.5 mL, 1.5 mL, 10 mL, 15 mL and 50 mL tubes.

Optional Accessories

Part Number	Description
BS-010210-CK	SV-16/8 block to hold 16 x 1.5 mL, 8 x 0.5 mL and 8 x 0.2 mL microtubes
BS-010210-BK	SV-10/10 block to hold 10 x 10 mL tubes (12 mm diameter)
BS-010210-DK	SV-8/15 block to hold 8 x 15 mL tubes (16 mL diameter)
BS-010210-AK	SV-4/30 block to hold 4 x 50 mL tubes (30 mm diameter)

Specifications

Manufacturer	Biosan
Model number	MSV-3500
Display	LCD
Vortex speed	300 rpm - 3500 rpm
Orbit	4 mm
Maximum load	0.2 Kg
Timer	0 - 60 minutes or continuous up to 8 hours
Dimensions (W x D x H)	180 mm x 170 mm x 145 mm
Weight	2.6 Kg
Power supply	Input: 100 VAC - 240 VAC: 50/60 Hz | Output 12 VDC
