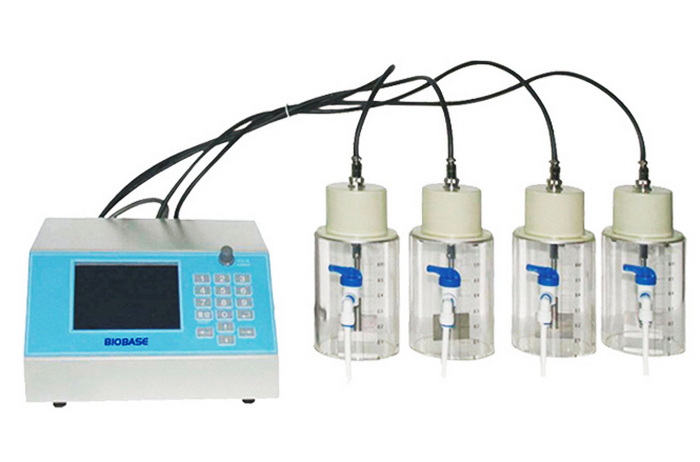

BJT-4 | Portable four position benchtop jar tester (flocculator) with LCD display and stepless speed range from 10 rpm - 1000 rpm
Key Features
- Ideal for drinking water plants, industrial effluent treatment, or municipal waste water plants
- Capacity for 4 x 0.6L round acrylic sample beakers (Ø x H: 95 mm x 130 mm)
- Electronic control and LCD display
- Automatic agent dosing and paddle elevation/lowering
- Programmable. Store up to 30 groups of programmes.
- Sample beakers can be run independently or simultaneously
Product Description
The jar or flocculation test is a procedure used mainly in water and wastewater treatment facilities to simulate and optimise the coagulation and flocculation processes before full-scale treatment is carried out. They are used to determine optimal coagulant dosage (e.g. alum, ferric chloride, PAC), test pH adjustment requirements, compare different coagulants or polymer aids, optimise rapid mix and slow mix times, and to evaluate settling characteristics of formed flocs. This process helps plants avoid:
- Overdosing costly chemicals
- Underdosing (poor turbidity removal)
- Process instability
The BJT-4 has the capacity for 4 x 0.6L round acrylic beakers and has a stirring range from 10 rpm - 1000 rpm (stepless adjustment) and a timer range from 0 - 99 mins and 99 seconds.
Each beaker can be independently stirred and all features of the jar test unit are controlled by an external controller. Key functions of the external BJT-4 controller include:
- Control of stirring speed and time
- Programme storage
- Automatic coagulant pouring and temperature measurement
- Automatic raising and lowering of mixer heads
- Automatic calculation of flocculation G and G-t values
More Information
Please click here to download a brochure describing the BJT-4 four position benchtop jar tester.
Specifications| Manufacturer | Biobase |
| Model number | BJT-4 |
| Number of beakers | 4 |
| Type of beaker | Round acrylic |
| Beaker dimensions (Ø x H) | 95 mm x 130 mm |
| Beaker volume | 0.6L |
| Instrument control | LCD display |
| Speed range | 10 rpm - 1000 rpm (stepless) |
| Speed accuracy | ±0.5% |
| Operating time | Step size: 0 - 99 mins and 99s | 10 steps per program |
| Measurement temperature range | 0 - 50°C |
| Measurement temperature accuracy | ±1°C |
| Power consumption | 80W |
| Electrical requirements | 220 VAC ± 10% | 50 Hz |
| Instrument dimensions (W x D x H) | 550 mm x 390 mm x 210 mm |
| Weight | 11 Kg |
