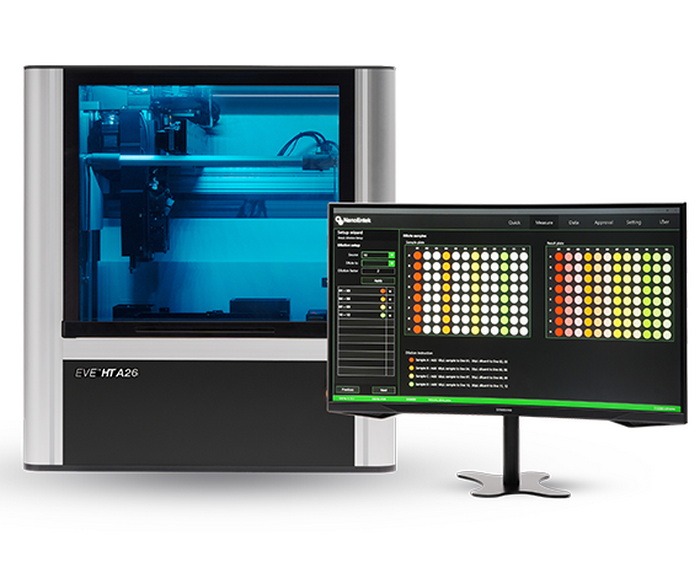

EVE-HT A26 | EVE-HT A26 fully automated high throughput cell counter for fluorescent and brightfield application

Key Features

• Hands-free processing. Fully automated workflow from sample preparation to cell counting.
• 96 samples in 10 minutes
• 20 µL sample volume

Product Description

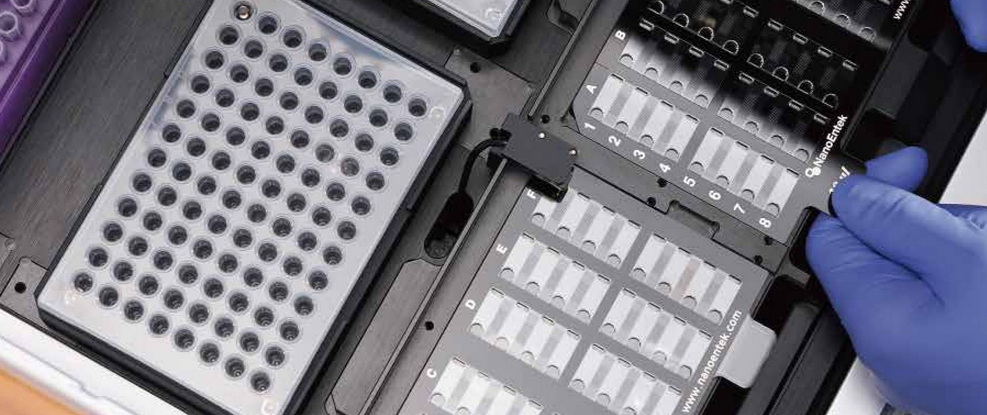

The EVE HTA26 is a fully automated cell counting system engineered to streamline sample preparation and analysis by integrating hands-free pipetting, aliquoting, diluting, staining, and counting into a single system. It delivers high throughput performance while reducing workflow variability and ensuring reproducible results.

Specifications

Analysis time	96 samples in 10 minutes
Sample volume	20 µL per count (direct mode) ≥ 40 µL per count (full mode)
Measuring range	Detectable range: 1 x 104- 2 x 107 cells/mL Optimal range: 1 x 105- 1 x 107 cells/mL
Cell size range	Detectable size: 1 - 85 µm Optimal size: 5 - 80 µm
Channel	Dual fluorescence (AO and DAPI), Brightfield
Staining solution	AO/DAPI mixed solution Trypan blue stain Erythrosin B stain
Capacity	96 samples per run
Pipette head	8-channel pipette head
Operating system	Windows 11 LTSC
Power	100 - 240 VAC: 50/60 Hz: 400 W
Dimensions	700 mm x 690 mm x 856 mm (W x D x H)
Weight	147 Kg
21 CFR Part 11 Compliance	Available (optional)
