MP-310 | Electrophoresis power supply, 5V - 300V output voltage

Key Features

• Four pairs of outlet terminals
• Timer with alarm
• Constant voltage/current/power modes
• Programmable
• TFT LCD colour display

Description

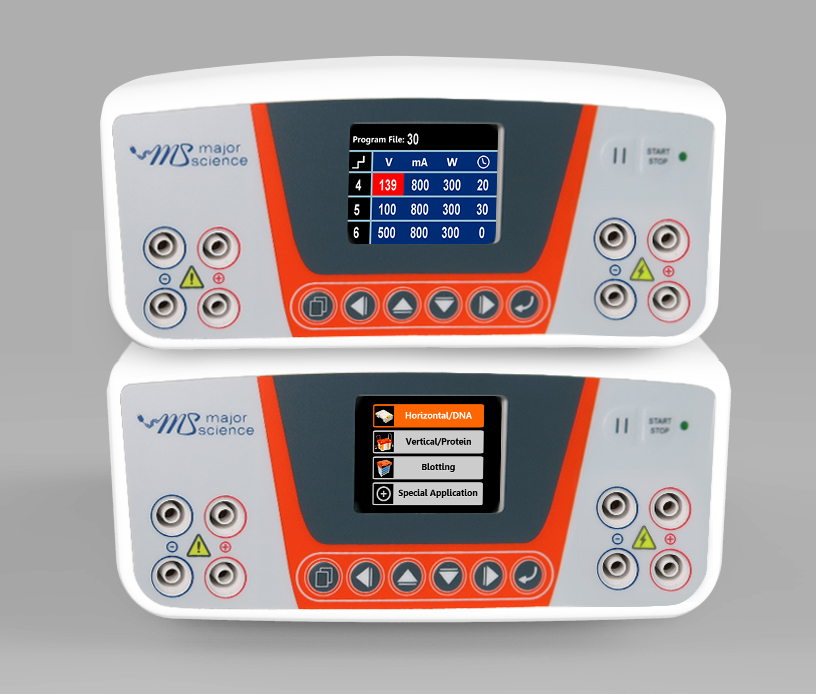

The MP-310 electrophoresis power supply from Major Science is ideal for horizontal and vertical electrophoresis as well as two dimensional SDS-PAGE electrophoresis. The instrument features a 60 mm TFT LCD colour display that shows all set and operating parameters while running.

The MP-310 has four pairs of outlet terminals and a timer with alarm as well as constant voltage/current/power modes. The unit can be run in continuous or timed modes and the end-user is able to pause and resume a run at anytime without resetting the timer.

The MP-310 can operate in fully programmable mode with up to six steps (V, mA, W, time) and a number of programmes incorporating typical running conditions have been pre-programmed into the instrument. The MP-310 has been designed with numerous safety features to ensure the safety of lab personnel.

More Information

Please click here for details on our extensive range of compatible systems for blotting and for nucleic acid and protein electrophoresis.

Specifications

Manufacturer	Major Science
Display	60 mm TFT LCD colour display
Output voltage/ increment	5V - 300V/ 1V
Output current/ increment	1mA - 700mA/ 1mA
Output power/ increment	150W/ 1W
Output type	Constant voltage/ current/ power
Timer	Constant mode: 9999 minutes with alarm
	Programmable mode: 999 minutes with alarm
Rated voltage	100V - 240V
Programme	Pre-setting: up to 6 steps (V, mA, W, time) | 30 programmed files
