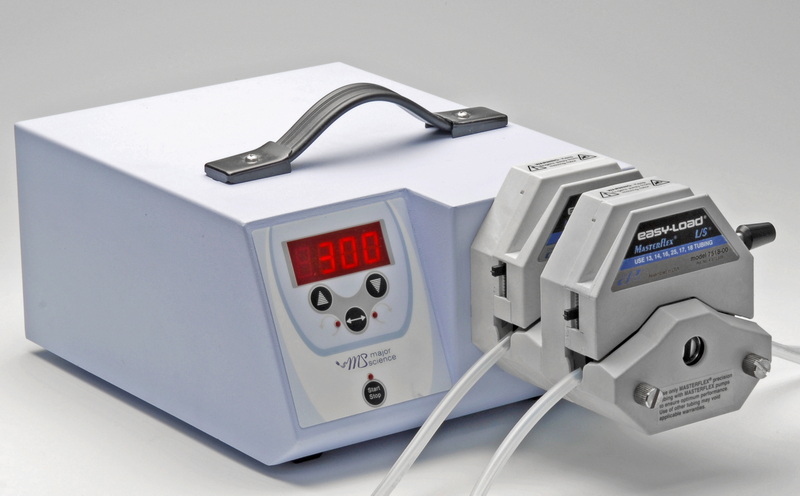

MU-D02 | Digital peristaltic pump with maximum flow rate of 2.28 L/min








Key Features

  • Digital microprocessor for precise speed control
  • Compact size and handle for portability
  • Compatible with a wide range of sizes of silicon tubing
  • Uses high quality Easy-Load pump heads
  • Operates with one or two peristaltic pump heads
  • Reversible for purging purposes
  • Flow rate ranging from 0.3 mL to 2.28 L/min depending upon tubing diameter

Description

The MU-D02 peristaltic pump from Major Science is ideal for a variety of laboratory applications including filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump head design accommodates a wide range of silicon tubing diameters to adjust the range of pump flow rates. Pump direction is reversible for purging purposes.


The digital microprocessor in the MU-D02 provides highly accurate speed control and the brushless motor reduces noise and increases instrument longevity. The MU-D02 can be used with either one or two pump heads.

Ordering Information for 2nd Pump Head

Part NumberDescription
MU-PU1Easy Load Pump Head for MU-D02

Specifications

Manufacturer
Major Science
Model number
MU-D02
ControllerDigital microprocessor
MotorBrushless
Power100 W
Pump speed range/ increment5 rpm - 600 rpm/ 1 rpm
Maximum pump speed600 rpm
Variable flow rate0.3 mL - 2.28 L/min depending upon tubing diameter
Timer0 - 99 Hr:59 min:59 sec
Number of rollers3
Number of peristaltic pumps1 or 2
Operating temperatureAmbient to 40ÂșC
Dimensions (W x D x H)200 mm x 340 mm x 130 mm
ConstructionPainted iron metal
Weight5.7 Kg
Power requirements240 V
