1710500P | D-500 Pro digital high speed homogeniser with 500 rpm - 30000 rpm speed range and processing capacity from 10 mL to 40 L








Key Features

  • Powerful 500 W motor with variable speed control from 500 rpm to 30000 rpm
  • Sample processing range from 10 mL  to 40 L depending on probe
  • Large digital display shows motor speed
  • Soft start prevents sample splashing at start-up
  • Overload protection
  • Suitable for solutions with viscosities up to 10000 cps
  • Speed remains constant even if sample viscosity changes
  • Insulated motor housing reduces motor noise
  • Wide range of rotor-stator probes available for the D-500 Pro

Description

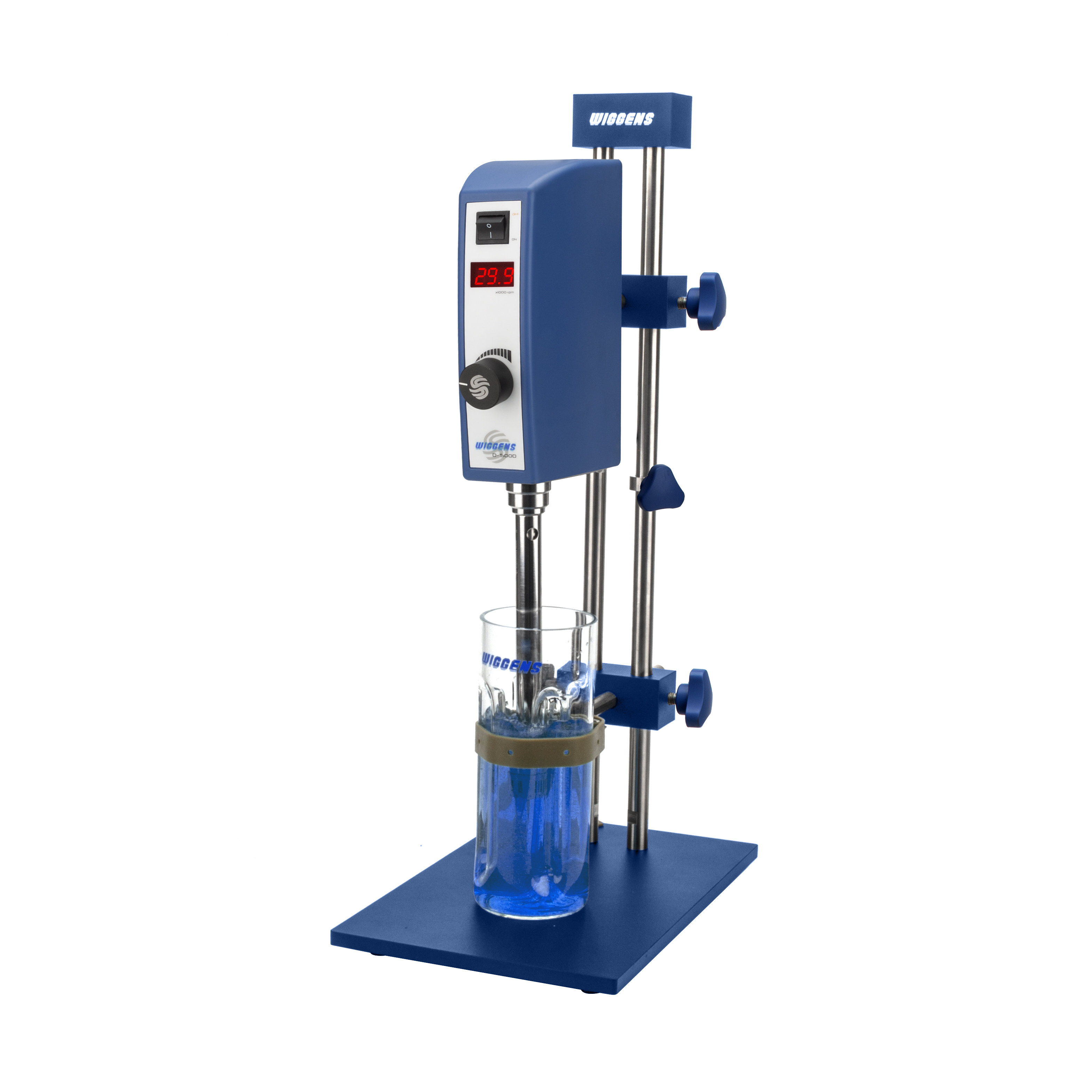

The Wiggens D-500 Pro stand-mounted homogeniser is the ideal instrument for labs with a wide range of tissue disruption, emulsification, suspension or formulation applications. The homogeniser has a powerful 500 W motor with variable speed control ranging from 500 rpm to 30000 rpm. The unit features an electronic control system that constantly monitors sample viscosity and automatically adjusts the motor speed if sample viscosity changes are detected.

The motor housing of the D-500 Pro is insulated to reduce noise and motor speed can be monitored on a large digital display. The D-500 Pro can process sample volumes from 10 mL to 40 L depending upon the type and size of rotor-stator probe that is used. A range of probes are available for the D-500 Pro to suit the type of material to be homogenised, the volume of sample to be processed, or the size of the final particle that is required (please see below).

Optional Accessories

Part NumberItem Description
Probes
Shaft 5 Probe for D-500 Pro homogeniser, 0.2 mL - 50 mL processing volume | suitable for solid/liquid mixing
Shaft 10
Probe for D-500 Pro homogeniser, 1 mL - 250 mL processing volume | suitable for solid/liquid mixing
Shaft 14
Probe for D-500 Pro homogeniser, 100 mL - 1 L processing volume | suitable for solid/liquid mixing
SS40CMR30Probe for D-500 Pro homogeniser, 1 L - 40 L processing volume | paddle stirring
SS30FMR30Probe for D-500 Pro homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30CMR20Probe for D-500 Pro homogeniser, 250 mL - 20 L processing volume | paddle stirring
SS20FMR20Probe for D-500 Pro homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
SS30CSR30Probe for D-500 Pro homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30CCR30Probe for D-500 Pro homogeniser,  100 mL - 8 L processing volume | suitable for fibrous material
SS30FSR30Probe for D-500 Pro homogeniser,  100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS20FCR20Probe for D-500 Pro homogeniser,  10 mL - 5 L processing volume | suitable for fibrous material
SS20CSR20Probe for D-500 Pro homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
SS20FER20Probe for D-500 Pro homogeniser,  10 mL - 5 L processing volume | suitable for biological membranes (lattices)
SS20CCR20Probe for D-500 Pro homogeniser,  10 mL - 5 L processing volume | suitable for fibrous material
SS30CMR30Probe for D-500 Pro homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30FER30Probe for D-500 Pro homogeniser,  100 mL - 8 L processing volume | suitable for biological membranes (lattices)
SS20CMR20 Probe for D-500 Pro homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
Stands

WH11-S
Single rod stand for D-500 Pro homogeniser | Height: 550 mm
WH12-S
Single rod stand for D-500 Pro homogeniser | Height: 750 mm
WH13-S
Single rod stand for D-500 Pro homogeniser | Height: 950 mm
WF11-D
Double rod stand for D-500 Pro homogeniser | Height: 550 mm
WF12-D
Double rod stand for D-500 Pro homogeniser | Height: 750 mm
WF13-D
Double rod stand for D-500 Pro homogeniser | Height: 950 mm


Specifications

Manufacturer
Wiggens
Model number
D-500 Pro
Speed displayLED
Speed range
500 rpm to 30000 rpm
Process volume range (water)
10 mL to 40 L (depending on probe)
Sample size range4 mm - 23 mm (depending on probe)
Motor power
500 W
Contact material
316L stainless steel / PTFE
Noise level
66 dB at 2500 rpm | 72 dB at 30000 rpm
Protection class
IP20
Dimensions (W x D x H)
157 mm x 76 mm x 236 mm
Weight1.8 Kg
Power requirements220 V: 50/60 Hz
