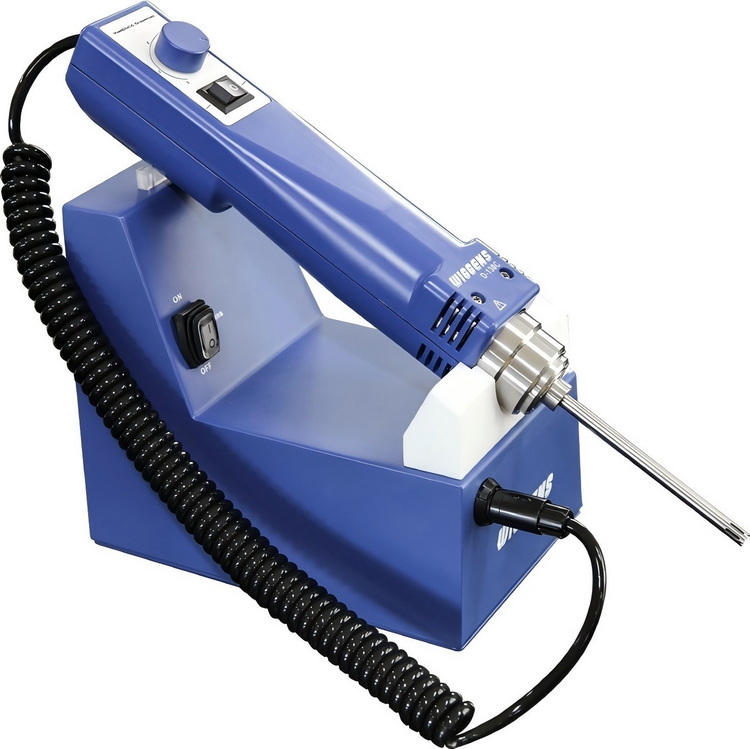

W3050130 | D-130C high speed homogeniser with 0 rpm - 25000 rpm speed range and processing capacity from 0.5 mL - 250 mL

Key Features

• Ideal for mixing, emulsification, shredding or chopping
• High speed brushless DC motor with speed range from 0 rpm to 25000 rpm
• Wide processing range from 0.5 mL - 250 mL depending upon the probe (please see options below)
• Lightweight for easy hand-held operation
• Autoclavable stainless steel probe shafts
• Probes are easily dismantled for cleaning
• Dual-switch power control for safety
• 2m spiral extension cable between the base stand and homogeniser

Description

The D-130C homogeniser is lightweight so it is ideal for hand-held processing of small samples in volumes from 0.5 mL - 250 mL (based on use in water) and depending upon the size of the probe that is used. A speed range from 0 rpm - 25000 rpm provides sufficient power for a wide range of sample types. The homogeniser is connected to a base stand by a 2m spiral extension cable.

Two stainless steel probes with different volume capacities are available for the D-130C. These probes are chemically-resistant, autoclavable and can be easily dismantled for cleaning.

Purchasing Options

The D-130C is available in two package options.

Part Number	Description
W3050130-P1	D-130C high speed homogeniser motor and base stand with shaft 5E dispersing probe
W3050130-P2	D-130C high speed homogeniser motor and base stand with shaft 12E dispersing probe

Probe Specifications

Part Number	Item Description
5E	Probe for D-130C high speed homogeniser | length: 118 mm | Rotor diameter: 3 mm | Stator diameter 5.5 mm | Processing range: 0.5 mL - 50 mL | Linear speed: 4.7 m/s | Min/max immersion depth: 25 mm/75 mm | Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)
12E	Probe for D-130C high speed homogeniser | length: 149 mm | Rotor diameter: 9 mm | Stator diameter: 12 mm |Processing range: 3 mL - 250 mL | Linear speed: 14.1 m/s | Min/max immersion depth: 40 mm/110 mm | Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)

Specifications

Manufacturer	Wiggens
Model number	D-130C
Part Number	W3050130
Speed (with zero load)	0 rpm - 25000 rpm
Processing range (with water)	0.5 mL - 250 mL (depends on probe)
Power input/output (W)	140/100
IP code	IP30
Probe material	316L stainless steel and PTFE
Dimensions (homogeniser motor)	44 mm x 58 mm x 226 mm
Dimensions (base stand)	160 mm x 185 mm x 162 mm
Weight (homogeniser and base stand)	2 Kg
Electrical specifications (input/output)	100 VAC-240 VAC: 50/60 Hz | 24 VDC
